This chapter explains how to use the Export Data tool to export a GeoTIFF.

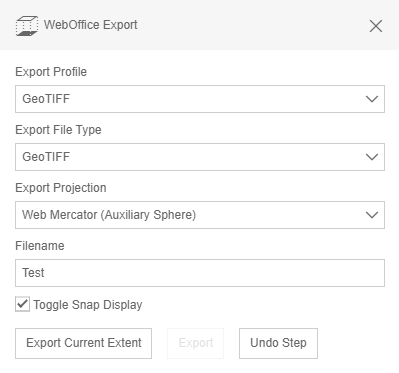

Data export tool form for raster data

Data export tool form for raster data



Export Profile

Choose one of the configured export profiles from the drop-down list.



Export File Type

Currently, the only file type available is the GeoTIFF.



Export Projection (Optional)

This option is only available if one or more projections have been configured in the WebOffice 10.9 SP1 project configuration. If available, the user can select a specific projection. If the selected projection is different than the projection used by the WebOffice 10.9 SP1 project, the data export will be reprojected to the specified projection.



File Name

The user can define a file name that will be used to name the GeoTIFF. Currently this option is only availaible for the File Type GeoTIFF but not for Vector Data.



Export Data

In order to export the data, zoom to the desired extent and click the button Export Current Extent. You can also draw a polygon over the extent you want to export, but it will always be exported as a rectangle, with the drawn vertices as outer boundaries. After triggering the export process, the .zip file can be downloaded via the download container, which opens automatically.

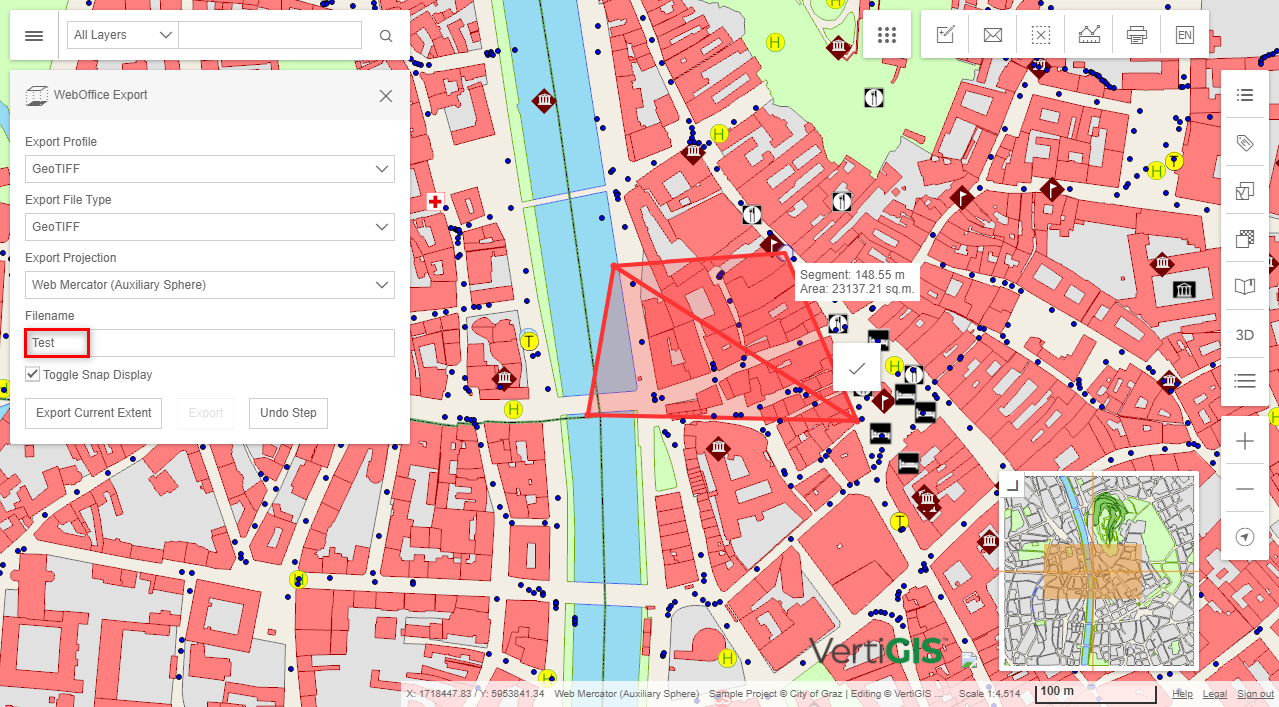

Export a GeoTIFF in the WebOffice flex client

Export a GeoTIFF in the WebOffice flex client



Exported GeoTIFF

Exported GeoTIFF



Note: See chapter Export Profile Raster Data for details about the tool configuration in WebOffice author.

Note: Markups (drawings, measurements, ...) are not exported with this tool.
