With WebOffice 10.9 R3 the WebOffice flex client supports various tools for drawing and setting geometries and objects. You can find more information about this in the following chapters.



icon_cross-reference

To use the markup tool, a corresponding configuration in WebOffice author standalone is necessary. For more details see chapter Markup.





The markup tool can be opened in the WebOffice flex client in the toolbar.



Tool "Redlining" in the toolbar of the WebOffice flex client

Tool "Redlining" in the toolbar of the WebOffice flex client



Depending on whether markup styles are configured for the WebOffice 10.9 R3 project, either the respective character styles are available or the style dialog. A selection list of several character styles is then displayed as soon as more than one character style is configured in the WebOffice 10.9 R3 project.



icon_cross-reference

For more information on configuring drawing styles, see the chapter Markup Style chapter.

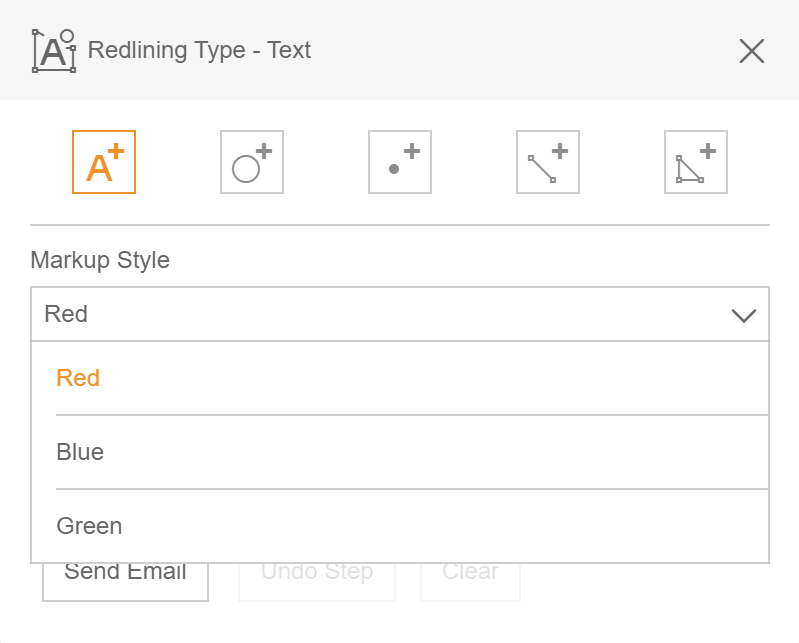

Markup tool in the WebOffice flex client with configured markup styles

Markup tool in the WebOffice flex client with configured markup styles



If no markup styles are configured in the WebOffice 10.9 R3 project, a style dialog is available with different settings that may vary depending on the element being drawn.

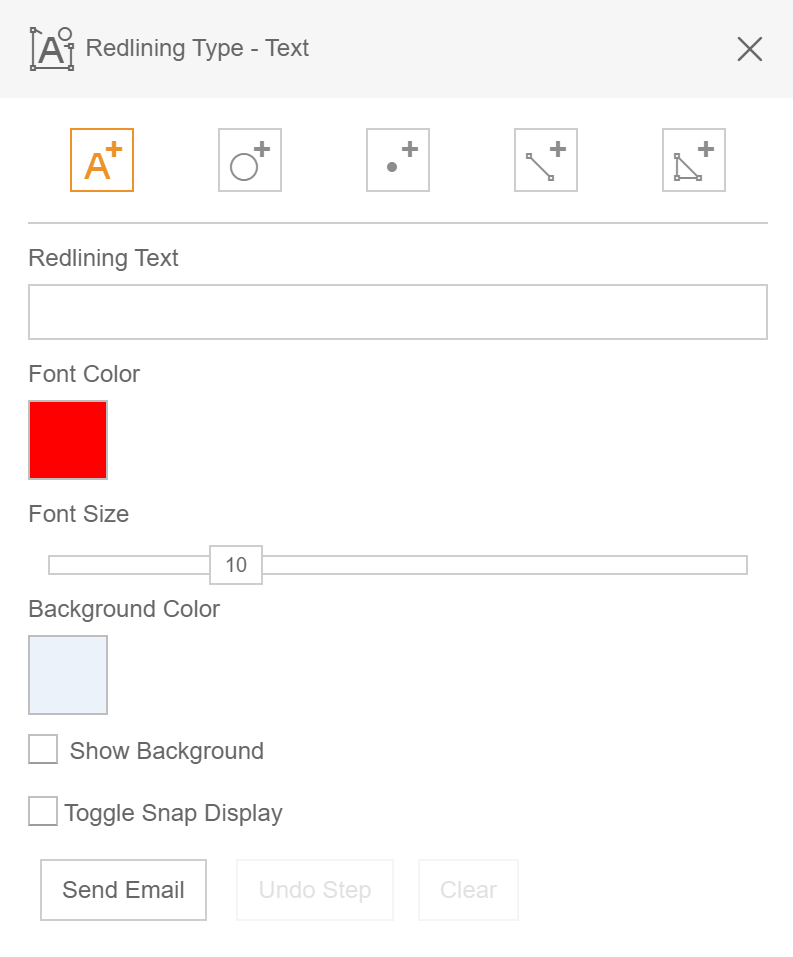

Markup tool in the WebOffice flex client with customizable styles dialog

Markup tool in the WebOffice flex client with customizable styles dialog



icon_comment

All graphics and objects drawn in a browser session can be completely deleted using the Clear Selection/Markup tool.
