This chapter explains how to use the Export Data tool to export a GeoTIFF.



Data export tool form for raster data

Data export tool form for raster data



Export Profile

Choose one of the configured export profiles from the drop-down list.



Export File Type

Currently, the only file type available is the GeoTIFF.



Export Projection (Optional)

This option is only available if one or more projections have been configured in the WebOffice 10.9 R3 project configuration. If available, the user can select a specific projection. If the selected projection is different than the projection used by the WebOffice 10.9 R3 project, the data export will be reprojected to the specified projection.



File Name (Only GeoTIFF)

The user can define a file name that will be used to name the GeoTIFF.



Export Data

In order to export the data, zoom to the desired extent and click the button Export Current Extent. A pop-up window with the download link will open. Click the link to save the zipped file on your local machine.

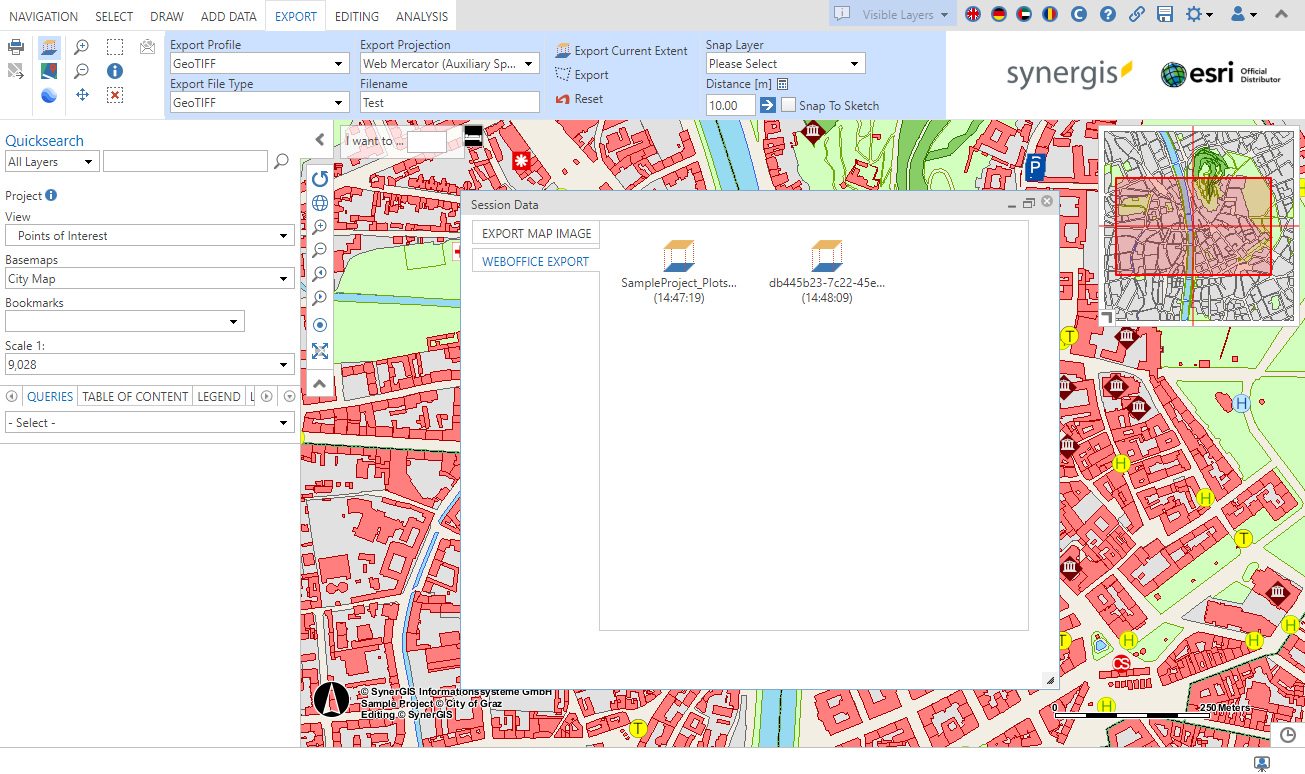

Export a GeoTIFF in the WebOffice core client

Export a GeoTIFF in the WebOffice core client

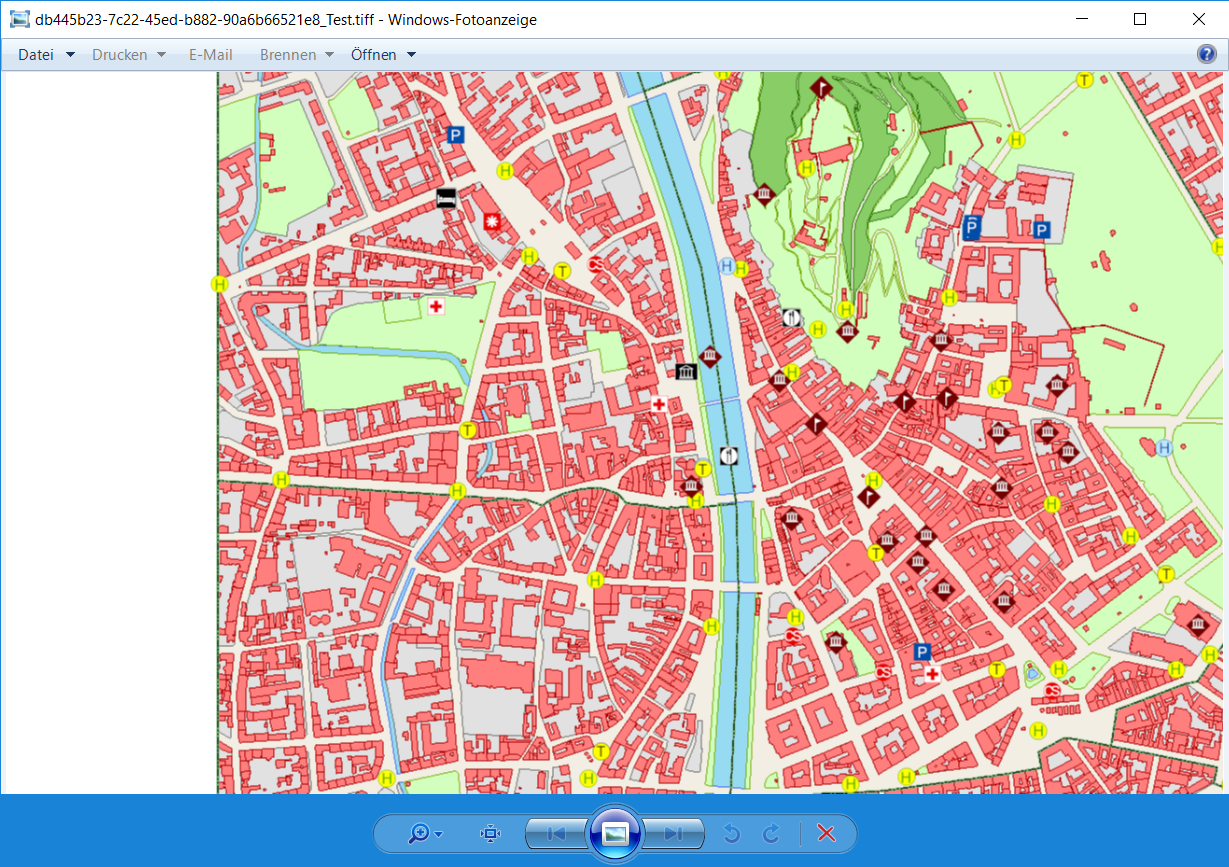

Exported GeoTIFF

Exported GeoTIFF



Note: See chapter Export Profile Raster Data for details about the tool configuration in WebOffice author.

Note: Markups (drawings, measurements, ...) are not exported with this tool.
