Range sliders can be used as dynamic filters on one or more layers or WMTS services with dimensions. As a result, features that are outside a selected value range are no longer displayed in the WebOffice 10.9 SP1 map. In contrast to the equally supported time sliders, several range sliders can also be active in the background. If the range slider has been configured to be minimized at project startup, it can be opened using the appropriate button in the right pane of the WebOffice core Client:

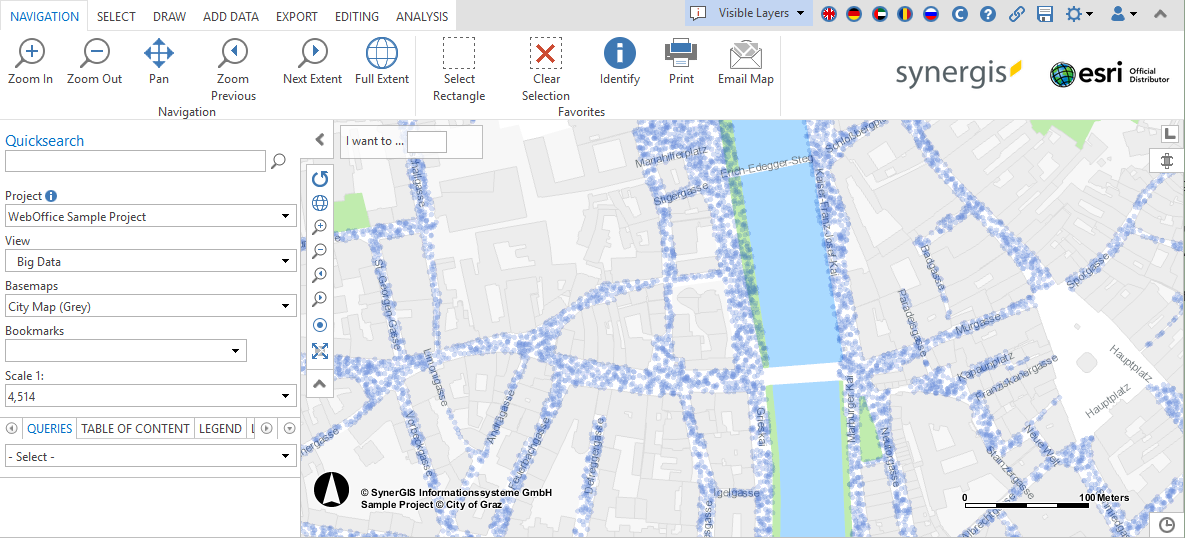

Opening the range slider in WebOffice core Client

Opening the range slider in WebOffice core Client

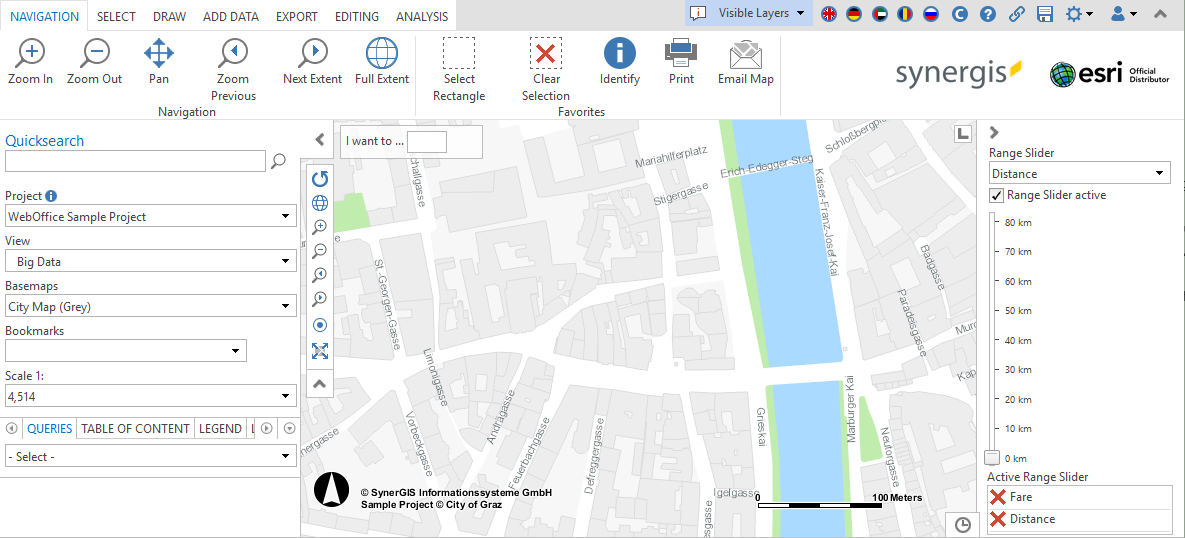

Applied range slider in WebOffice core Client

Applied range slider in WebOffice core Client





Depending on which slider type has been configured, the appearance of the range slider changes in WebOffice core Client:



1. Value Range Slider
The'ValueRange Slider type represents a slider with two slider marks (minimum value and maximum value) and is used to select a value range.

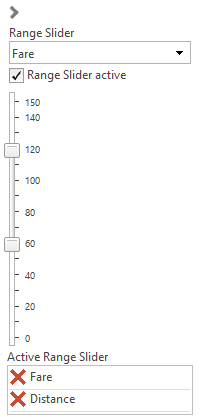

Range slider to select a value range

Range slider to select a value range





2. Single Value Slider

The Single Value Slider type represents a slider with a slider mark and is used to select a single value.

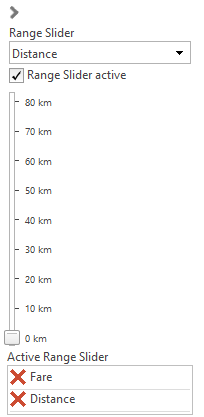

Bereichsschieberegler zur Auswahl eines Einzelwertes

Bereichsschieberegler zur Auswahl eines Einzelwertes



3. Single Value Stepper

The Single Value Stepper type always displays a single value that can be changed by selecting previous value or next value. The desired value can also be selected from a drop-down list.



Selection of a single value using buttons or a value list

Selection of a single value using buttons or a value list





Note: For more information on configuring the range slider, refer to the List of range sliders and the following sub chapters.
