Print with Print Series

Use the Print Series function to create a print output containing multiple pages with the same scale. There are two different types of print series.

In order to generate a print series from grid first select a print template that provides this function (Button Define Extent changes to Series Print). After defining a specific print scale click the button Series Print and position the grid by clicking and dragging inside the map.

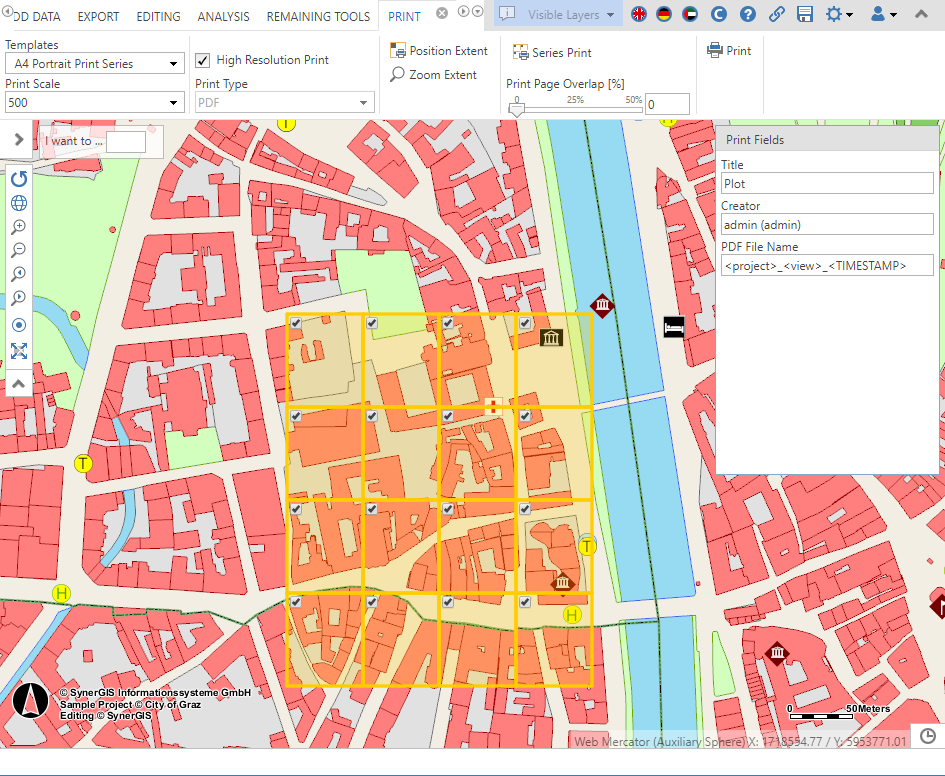

Series print in teh Core Client

Series print in teh Core Client



By checking or unchecking single frames you can decide, which pages should be included in the print series. With the Print Page Overlap [%] control a certain page overlap up to 50% can be defined. Finish the print series by clicking the Print button.

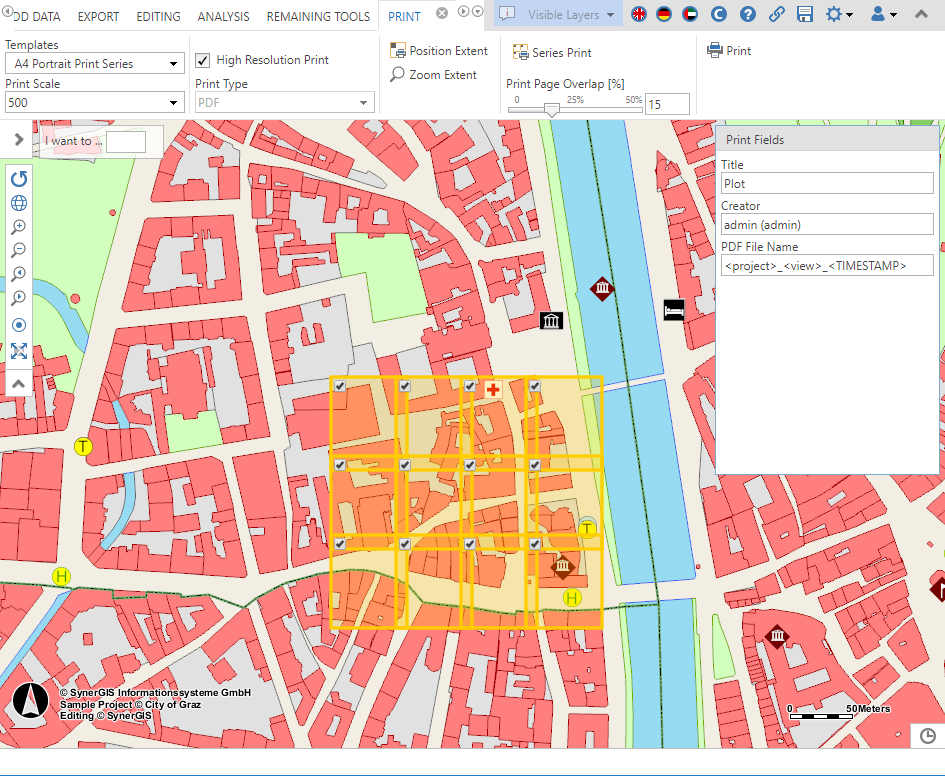

Overlapping of Series print in the Core Client

Overlapping of Series print in the Core Client



If an Overview Page was enabled in the WebOffice 10.9 SP1 project configuration, the first page of the output shows the position of the following single sheets.

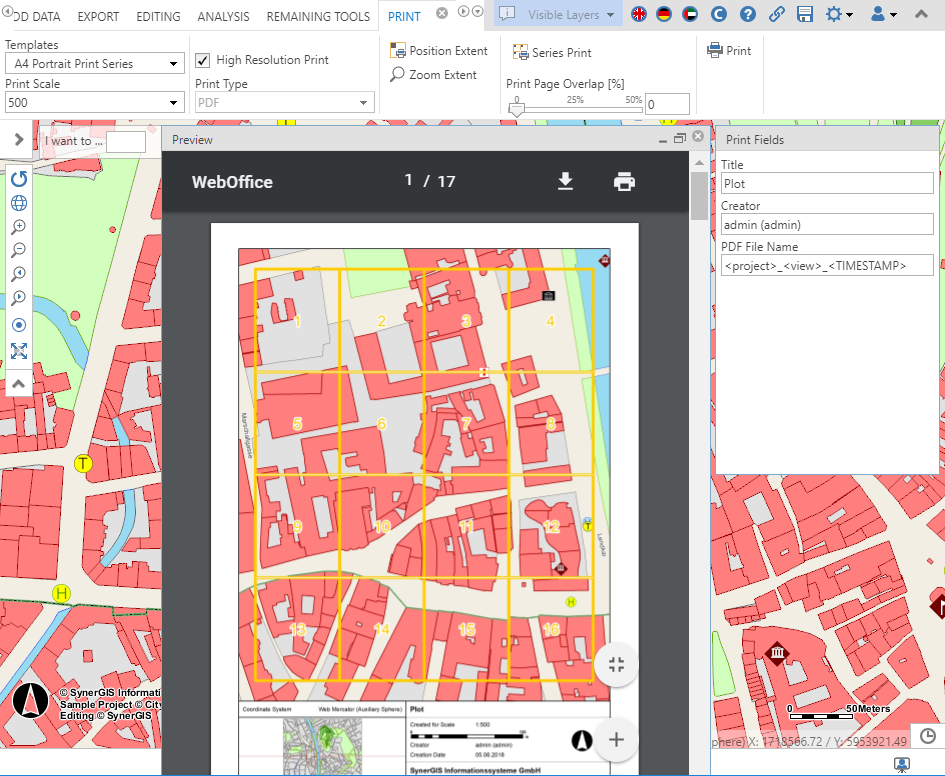

Overview of Series print in the Core Client

Overview of Series print in the Core Client



If the border color was set to be definable, the user can choose the overview border color.

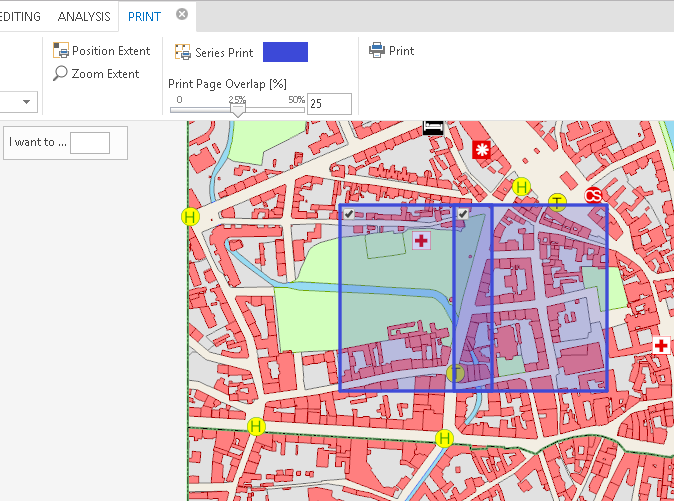

Changing the Border Color of the Print Overview

Changing the Border Color of the Print Overview



Rotated print series can also be generated.

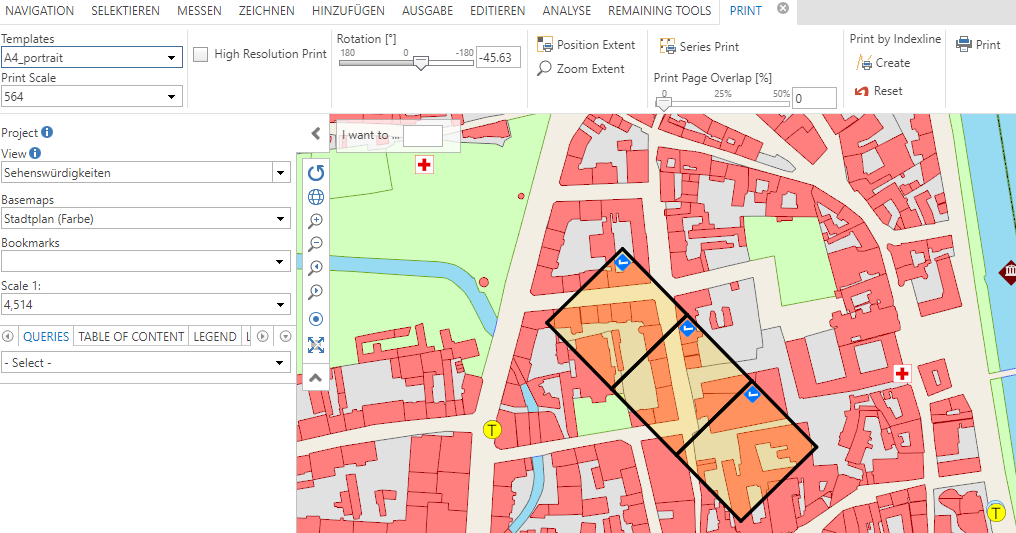

Rotation of Print Series

Rotation of Print Series



Note: The only supported output format for print series is PDF.

Note: It is not recommended to configure the print series or index plot functionality on large-sized originals (e.g. A0 or A1) because in these scenarios the high memory requirements may lead to out of memory exceptions.

Note: See chapter Print for details about the tool configuration in WebOffice author.

Note: See chapter Template (File Name) for details about the configuration of print templates and subsequent chapters about the available function fields.

Note: See chapter Print Series for details about the configuration of the print series element.
