Measure Perpendicular



Measure Perpendicular tool in the WebOffice core client

Measure Perpendicular tool in the WebOffice core client



After activating the Measure Perpendicular tool, in a first step you have to place a base line that will be the reference for perpendicular measuring. In the first box you will see the coordinates of this line. In the second step click to the point that should be the end point of the perpendicular measuring. The object is finished automatically and the distances will be displayed in the boxes below, where you also can choose between configured Measure Units.



Press the Zoom to button to center the map on the object or click Reset to delete the created measuring. Currently, it is not possible to edit perpendicular measurings.



Note: For quick perpendicular measurements, it is also possible to use the Measure Distance tool.

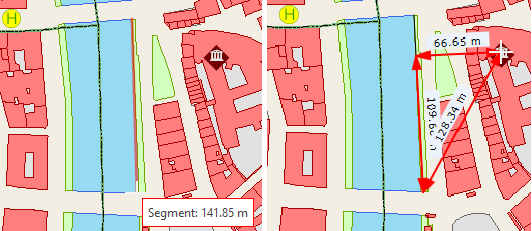

Measuring perpendicular using snapping in the WebOffice core client

Measuring perpendicular using snapping in the WebOffice core client



Note: See chapter Measure Perpendicular for details about the tool configuration in WebOffice author.

Note: See chapter Snap Layers for details about the configuration of snap layers in WebOffice author.

Note: See chapter Measure Units for details about the configuration of length and area units in WebOffice author.
