Measure Angle tool in the WebOffice core client

Measure Angle tool in the WebOffice core client



After activating the Measure Angle tool, in a first step you have to place a start and an end point that will be the reference for angle/distance measuring. In the first two boxes you will see the coordinates of these points. WebOffice 10.9 SP1 will automatically display the course angle and the distance in the boxes below. In addition, the north direction will be drawn with a length of 75% of the distance from start to end point as orientation guide. As with other measuring tools in WebOffice 10.9 SP1 you can also choose between configured Measure Units.



Press the Zoom in button to center the map on the object or click Reset to delete the created measuring. Currently, it is not possible to edit angle/distance measurings.

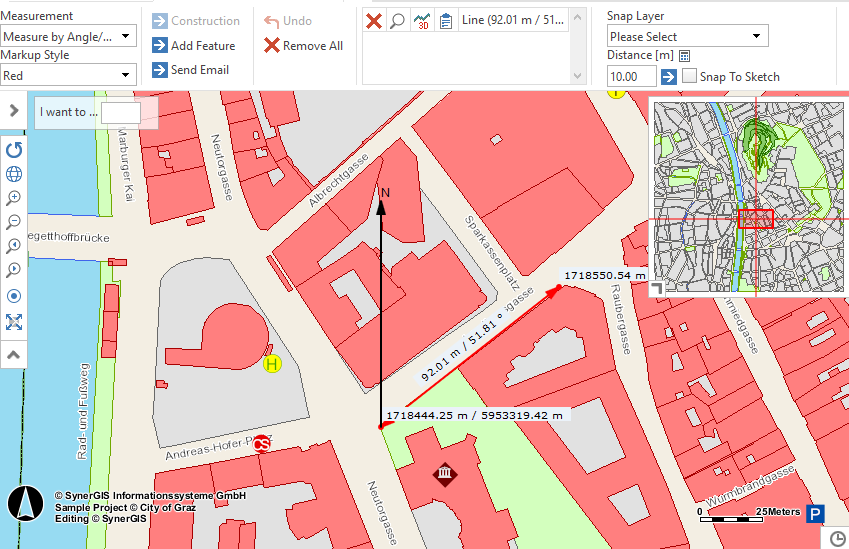

Measuring an angle using snapping in the WebOffice core client

Measuring an angle using snapping in the WebOffice core client



Note: See chapter Measure Angle for details about the tool configuration in WebOffice author.

Note: See chapter Snap Layers for details about the configuration of snap layers in WebOffice author.

Note: See chapter Measure Units for details about the configuration of length and area units in WebOffice author.
