Editing with Snapping

With WebOffice 10.9 SP1 there exist two options when snapping is needed for editing. The administrator can decide whether to provide snapping by

snap grid

snap profile or snap layer





Snap Grid

With a Snap Grid, vertices can only be set to grid points with the specified distance, e.g. 5 meters.

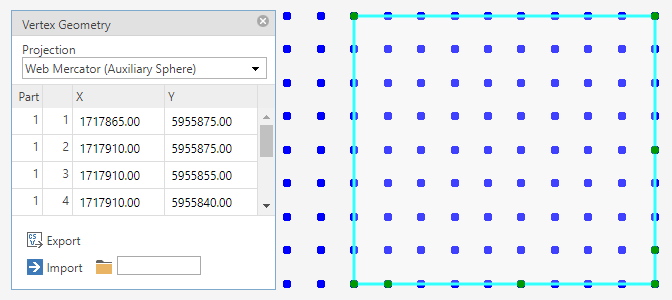

Edit with snap grid

Edit with snap grid



Snap Profile or Snap Layer

Another way of snapping is to use configured Snap Profiles or Layers. This way, the user can snap on existing objects of any available snap layer. Snap tolerance can be set directly in the edit tool form.

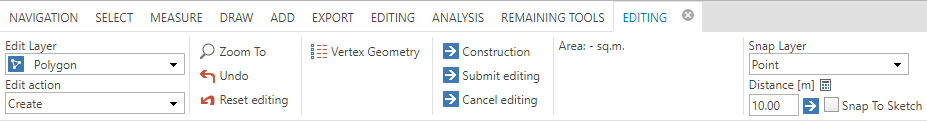

core_editing_with_snapping3

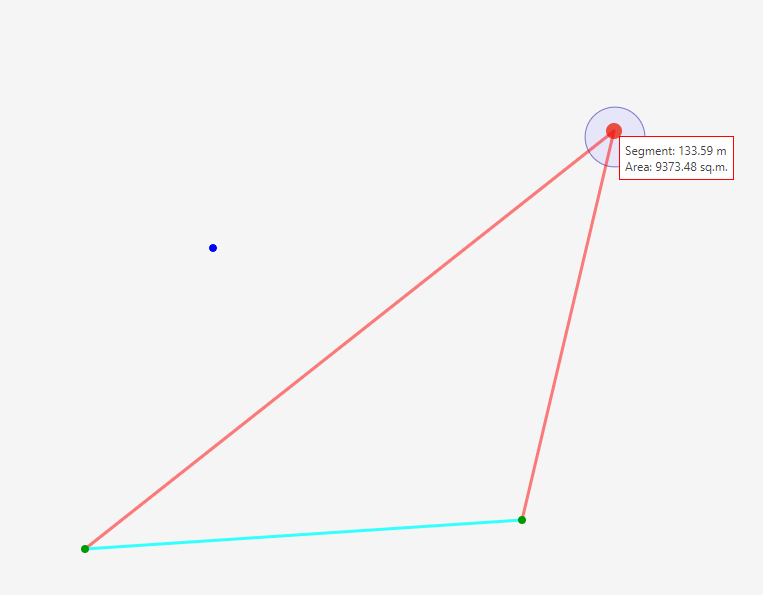

core_editing_with_snapping2





Note: See chapter Editing for details on tool configuration in the  WebOffice author standalone.

Note: See chapter Snap Layers for details on configuring Snap Layers in the WebOffice author standalone.
