Function Fields
Function fields are fields that are automatically filled with data. The fields provide the textual content dynamically to the print output. VertiGIS Printing Layout Designer offers a great variety of function fields.

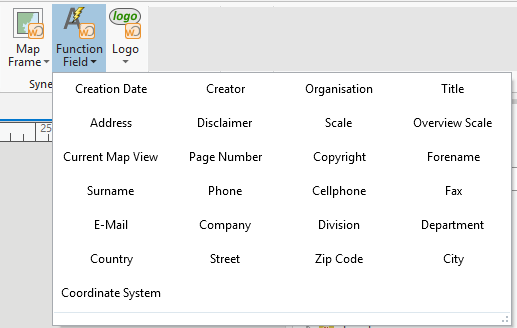

VertiGIS Printing Designer - Function Fields
These function fields are in accordance with the available predefined function fields in WebOffice author. The functions fields can be inserted in the layout template and get configured and filled by the WebOffice author. The assignation of the right function fields is done by the ID of the field value.
For every function field from the VertiGIS Printing Layout Designer menu, two user fields are inserted:
•a field for the caption
•a field for the value
Following function fields are available:
Function Field |
Description |
Value |
|---|---|---|
Creation date |
createdat_caption |
createdat_value |
Creator |
creator_caption |
creator_value |
Organization |
orgname_caption |
orgname_value |
Title |
title_caption |
title_value |
Address |
orgadr_caption |
orgadr_value |
Disclaimer |
disclaimer_caption |
disclaimer_value |
Scale |
scale_caption |
scale_value |
Scale overview |
scale_caption_ov |
scale_value_ov |
Current map view |
syn_mapview_caption |
syn_mapview |
Page number |
syn_index_caption |
syn_index |
Copyright |
syn_copyright_caption |
syn_copyright |
Forename |
user_given_name_caption |
user_given_name_value |
Surname |
user_sur_name_caption |
user_sur_name_value |
Phone |
phone_caption |
phone_value |
Cellphone |
mobilephone_caption |
mobilephone_value |
Fax |
fax_caption |
fax_value |
email_caption |
email_value |
|
Company |
user_company_caption |
user_company_value |
Division |
user_division_caption |
user_division_value |
Department |
user_department_caption |
user_department_value |
Country |
user_country_caption |
user_country_value |
Street |
user_street_address_caption |
user_street_address_value |
Zip Code |
user_zipcode_caption |
user_zipcode_value |
City |
user_city_caption |
user_city_value |

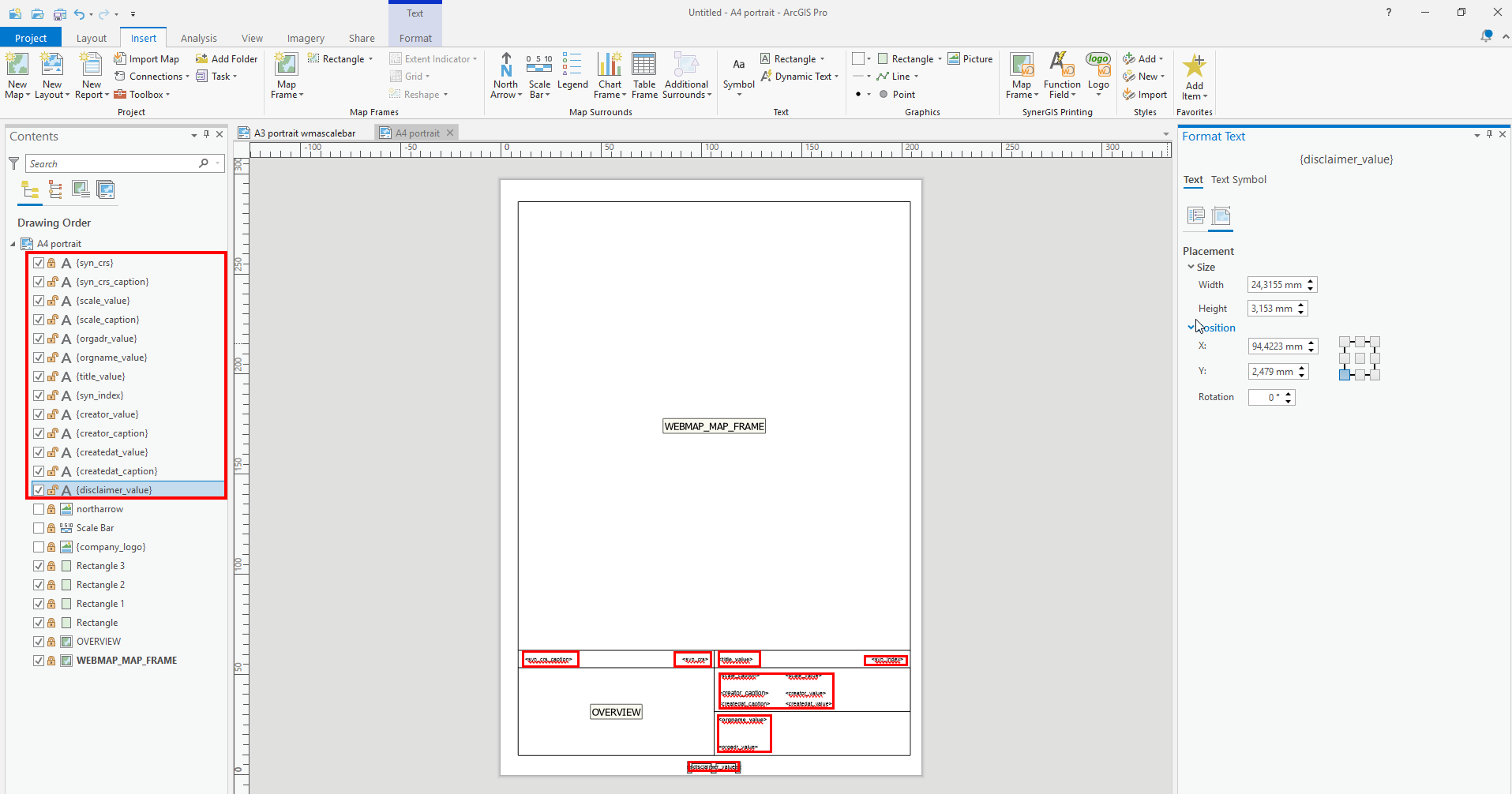

Layout - Function Fields
