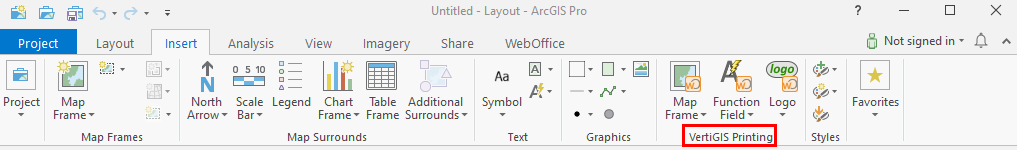

Plot templates are designed in VertiGIS Printing Layout Designer, an Add-In for ArcGIS Pro. The complete ArcGIS Pro layout functionality is combined with tools to add specific map elements like logos and function fields. The toolbar VertiGIS Printing Layout Designer includes the layout tools and the functions for inserting advanced layout elements.



In detail the VertiGIS Printing Layout Designer toolbar is set up by following parts:

•Map Frame

•Function Field

•Logo
