Table

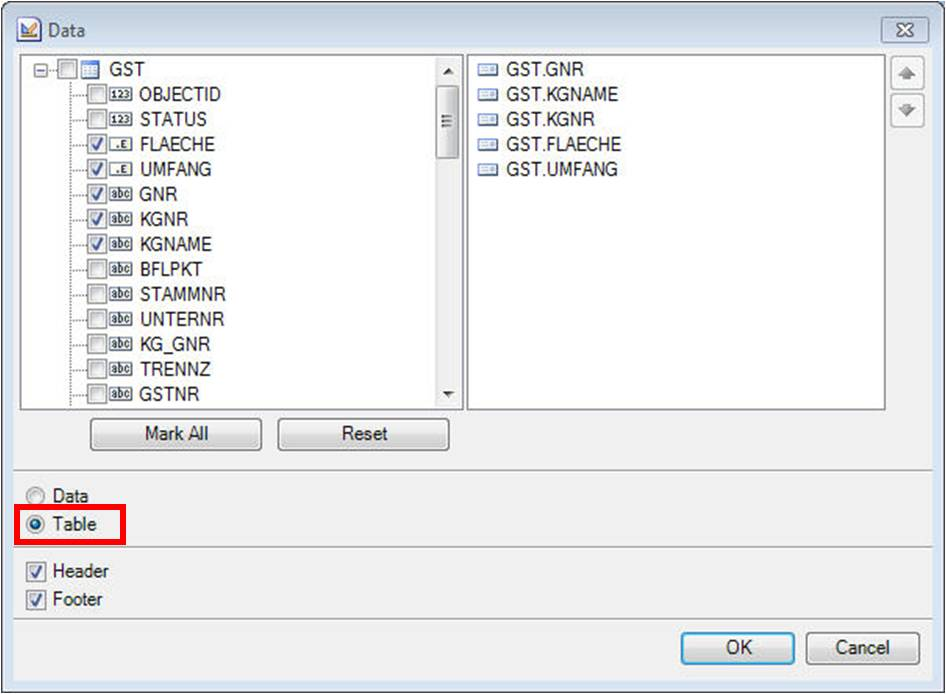

_img104

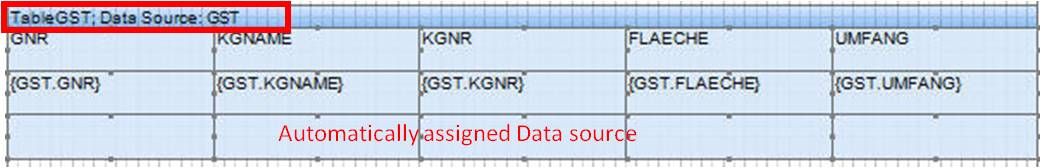

When data is inserted as table, it is displayed as follows in the page of the template:

_img105

The data source is automatically assigned by inserting the data directly from the GST data source by drag & drop. In the table there is the assignment Data Source: GST.

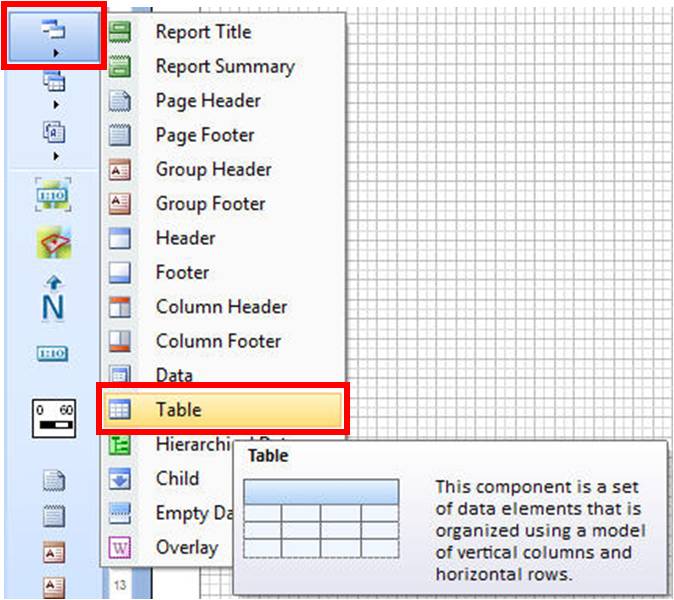

Alternatively there is also the possibility to drag a table from the Toolbar into the page.

_img106

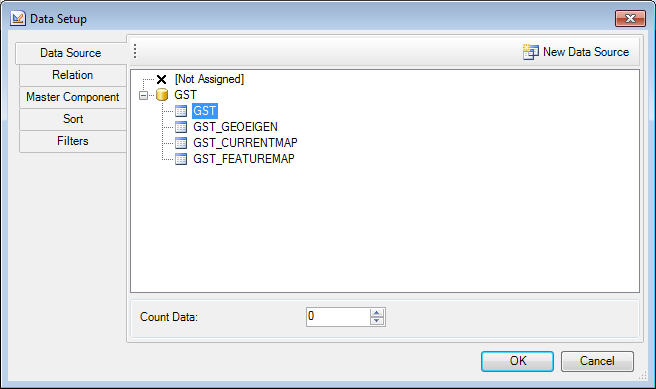

Then however, the link to the data source must be done subsequently. When inserting a table, the Data Setup dialog box opens. Select the desired data source. The assignment of the data source can be done also with the features from the header of the table or with the Properties window.

als datenband4

The formatting of the table or of the components such as color, frame or shade properties is done either by the Properties window or by the features from the multi-function menu. You can view the setup template with preview.

als tabelle3
