A new menu item in WebOffice author standalone is Staging. Staging systems are test systems which represent an environment used for testing all aspects of the application system before moving it to the production system. It is strongly recommended for every customer to make use of a staging system. Staging systems are the prerequisite for establishing high quality production systems with high availability and minimized failure time.

This tab contains all configuration elements that are relevant when using a staging system in WebOffice.

icon_comment

Since WebOffice 10.9 R2 SP1 the WebOffice author standalone interacts much more performantly with the user management database due to a change in the database layer, so that import, export, go-live and cleanup can now be performed faster.



woas_staging_01

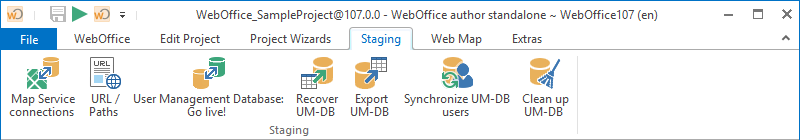

WebOffice author standalone: Staging



Icon

Menu item

Description

wa_extras_menu12

Map Service Connections

Allows to quickly and easily exchange the parameters for map service connections.



woas_staging_02

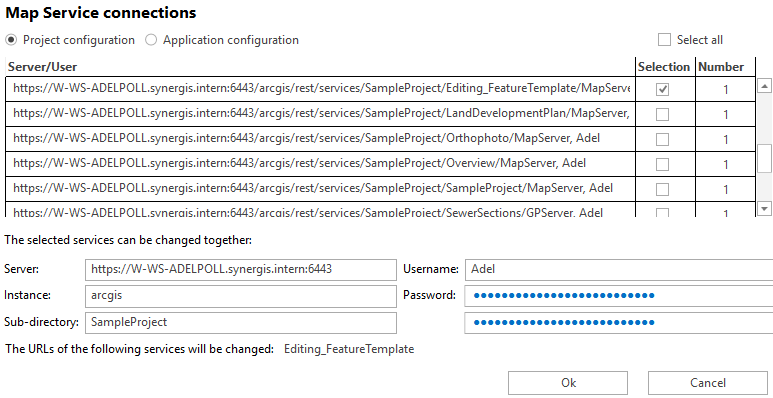

Map services connections



icon_cross-reference

See chapter Map Service Connections for detailed information about the exchange parameters of map service connections.

wa_extras_menu13

URL / Paths

To transfer the project configuration from a test to a production system, it can be useful to replace all URLs of a project. At Url/Paths all HTTP/HTTPS and relative URLs and paths are displayed. The URLs or paths can be easily changed in the respective line. Click Apply to save your changes.



woas_Staging_03

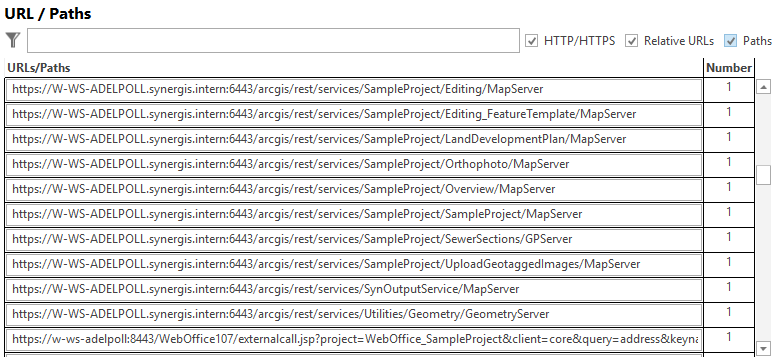

URL/Paths



icon_cross-reference

See chapter URL for detailed information about the button URL/Paths.

woas_staging_10

User management database: Go live!

WebOffice author standalone supports synchronization of User Management Database from pre-production level (staging) to production level (production). Data will be transferred to production database and some data values (see below) will be mapped. Please make sure to describe these data mapping rules completely!

icon_warning

ACHTUNG!

This process actualizes data of User Management database of production system and may have an effect on the efficiency of the production system (Down time)!

woas_staging_11

User management database: Recover UM-DB

Imports a user management backup database. Please note that when importing a User Management backup database, the database content of your current application profile will be overwritten!

woas_staging_12

User management database: Export UM-DB

Use this to export the user management database to an XML file.

woas_staging_13

User management database: Synchronize UM-DB Users

Synchronization of users and passwords between source and target systems. A backup of the User Management database is created beforehand.

wa_extras_menu25

User management database: Clean up UM-DB

The Clean up UM-DB dialog is used to clean up specific map services or dead layers within the WebOffice usermanagement.
