List of Layer Categories

The list of layer categories specifies the categories for grouping layers in the following tools:



Identify

Select - Rectangle/Box (and other selection tools)

Free Labeling

Buffer

Identify MapTip

Editing

Map Overlay



Using the group function, it is possible to provide layers to a user in a structured way.



icon_comment

Layer categories do not perform with WebOffice mobile client.

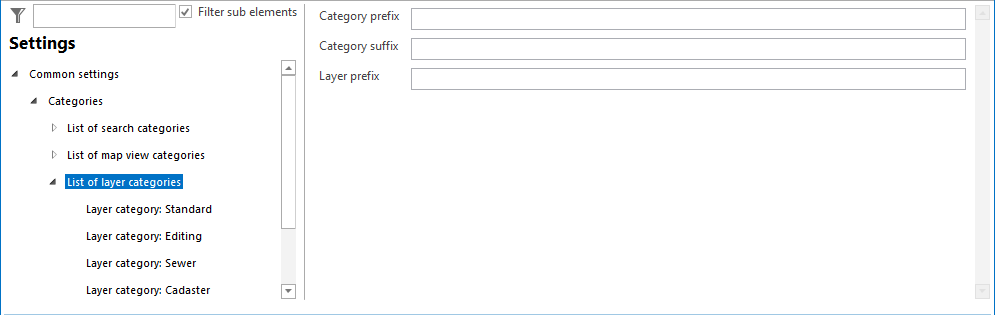

List of layer categories configuration

List of layer categories configuration



Property

Description

Category prefix

Text before each category name in the compact display

Category suffix

Text after each category name in the compact display

Layer prefix

Text before each layer name in the compact display

List of layer categories properties



Layer categories can be named.

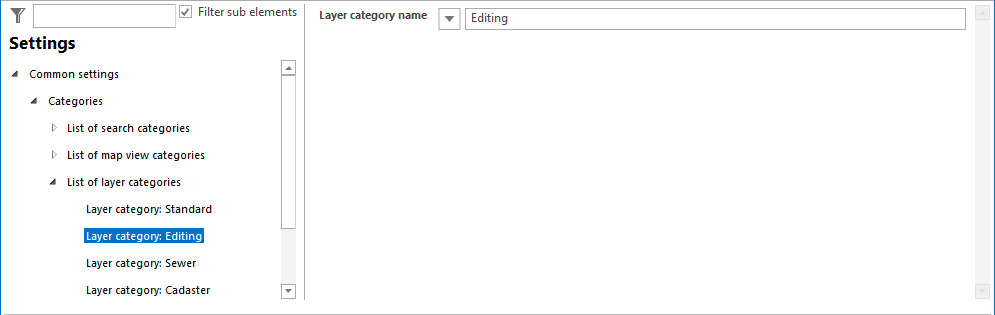

Layer category name configuration

Layer category name configuration



Property

Description

Layer category name

Alias name for a layer category that can be defined for multiple languages.

Layer category name properties



icon_comment

If you do not relate every selectable/identifiable layer to an according layer category, all unclassified layers will be listed automatically in a category Other layers.



icon_cross-reference

After various layer categories have been defined in this entry point, you will have to relate these categories to configured layers that are selectable/identifiable. See chapter Layer Queries for details.

See also the chapter Select for information about how layer categories appear in the WebOffice html client.
