The Search Coordinates tool enables users to search on coordinates entered into the tool form. The administrator may configure arbitrary supported projections or geographic coordinate systems as input reference system.

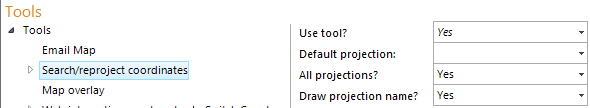

Search Coordinates tool configuration

Search Coordinates tool configuration



Property

Description

Use tool?

Specify whether this tool is available in the WebOffice 10.9 R4 clients (Yes) or not (No).

Default projection

Default projection used in the tool.

All projections?

If activated, the tool will be displayed without the possibility to choose a specific projection to use. Instead, the position is projected automatically to all defined projections.

Draw projection name?

If activated, the projection name will be drawn with the coordinates.

Search Coordinates tool properties



Configure a List of Projections to make any projection available for the user.





You can also change the separator between the two coordinates with the following parameter in the \client_core\jss\properties_weboffice_user.xml file.

<record jsxid="coordsearch.coord.separator jsxtext= / />



Note: See chapter Search Coordinates for details about projections in combination with the coordinate search tool in the WebOffice html client.

Note: See chapter Search Coordinates for details about the coordinate search tool in the WebOffice mobile client.
