Measure Perpendicular

Configure the Measure Perpendicular tool to provide further measure functionality. You can specify whether the hypotenuse should be displayed or not.

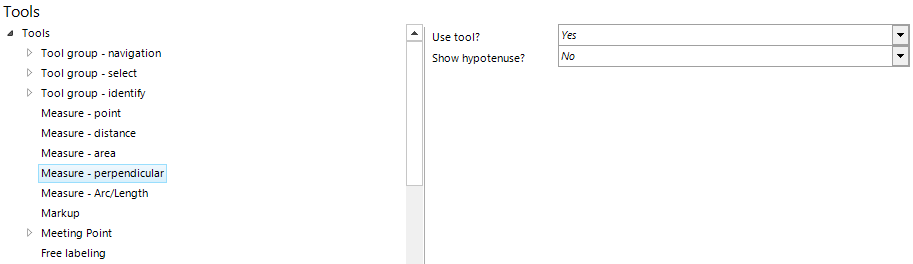

Measure Perpendicular tool configuration

Measure Perpendicular tool configuration



Property

Description

Use tool?

Specify whether this tool is available in the WebOffice 10.9 R4 clients (Yes) or not (No).

Show hypotenuse?

Calculates and displays the length of the hypotenuse additionally (Yes) or not (No).

Measure Perpendicular tool properties



Note: See chapters Measure/Markup and Measure Perpendicular for the tool appearance in the WebOffice html client.

Note: See chapter Snap Layers for details about the configuration of snap layers in WebOffice author.

Note: See chapter Measure Units for details about the configuration of length and area units in WebOffice author.

Note: See chapter Draw for more details about the measure/drawing tools in the WebOffice core client.
