Configure the Editing tool to fulfill one precondition for providing editing functionality in the WebOffice 10.9 R4 clients.



Be aware that in order to make editing functionality available in WebOffice 10.9 R4 you need

•a valid WebOffice 10.9 R4 advanced license (including the web editing module)

•at least one layer from an ArcSDE geodatabase that is configured as an Edit Layer

•a configured and activated editing tool

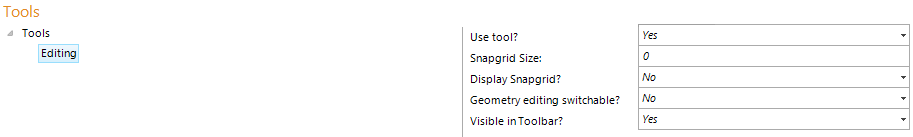

Editing tool configuration

Editing tool configuration



Property

Description

Use tool?

Specify whether this tool is available in the WebOffice 10.9 R4 clients (Yes) or not (No).

Snapgrid Size?

If a snapgrid size is configured, vertices are always snapped to this snap grid. A snap grid is independent of the edit layer and edit action. If a snap grid is configured, all other snap profile definitions on edit layers are overruled. A configuration of 0 (default value) causes no snap grid.

Display Snapgrid?

Defines if the snap points are rendered by the WebOffice 10.9 R4 clients (Yes), or the map service takes care of drawing the snap points (No).

Geometry editing switchable?

Defines if the user can switch editing of geometries (Yes), or if the geometry editing functionality (map interaction) is always on (No/default value).

Visible in Toolbar?

Specifies whether the tool will be available in the toolbar (Yes, default) or not (No). Choose the latter option if you do not want to show the tool in the toolbar but use it in combination with the scriptAPI.setTool method.

Editing tool properties



Note: See chapter Edit Layers for details about the configuration of edit layers.

Note: See chapter Activate Editing for details about the configuration of editing for the WebOffice Sample Project.

Note: See chapter Editing for details about editing in the WebOffice html client.

Note: See chapter Editing with Snapping for details about snapping while editing in WebOffice html client.

Note: See chapter Editing for details about editing in the WebOffice flex client.

Note: The construction tools in WebOffice 10.9 R4 clients support also WGS 1984 and Webmercator.



On the subnode of the Editing Tool it is possible to configure Intercepted SOE Errors. Thereby Error messages which should be intercepted and replaced with a more meaningful and helpful text for the user can be shown in the client.



On the subnode of the Editing Tool it is possible to configure a List of Projections which can be used to integrate and import coordinates of various projections via the vertex geometry dialog.

Note: See chapter List of Projections for details about the configuration of defining projections within the editing tool.

Note: See chapter Editing for details about the use of the vertex geometry dialog with various coordinate systems.
