The ribbon bar provides all configured tools of the project. These can be activated with a mouse click. The configuration settings of the tool open dynamically in the ribbon. For some tools with many configuration options, it is possible that the tools activate a dynamic tab when activated.

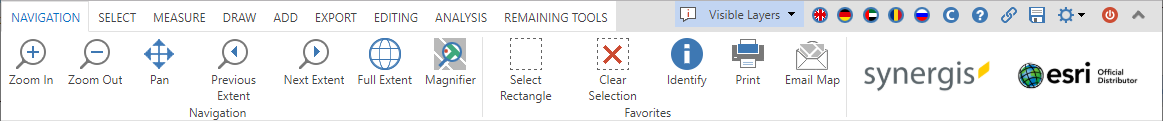

Activated tool in the WebOffice core client

Activated tool in the WebOffice core client



The currently activated tool is highlighted in color.

Tool groups in the WebOffice core client

The grouping of tools is done on the one hand by using tabs and on the other hand by using tool groupings in the WebOffice 10.9 SP2 core client. Tabs can be used to map activities in the project and tool groupings are used to organize related tools.

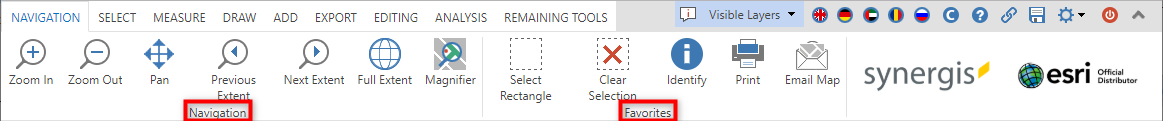

Tool groups in the WebOffice core client

Tool groups in the WebOffice core client



Any tools, that are not configured for a ribbon, will appear in an additional ribbon called Remaining tools", but can be used by the user via this tab.

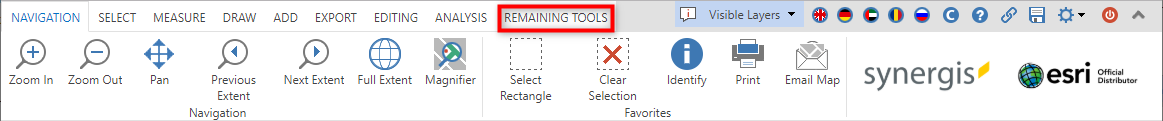

Ribbon "Remaining tools" in the WebOffice core client

Ribbon "Remaining tools" in the WebOffice core client



Many tools, that need further user input or configuration, activate those settings in the tab or creates a dynamic tab with additional options. For some tools, a dialog box can also appear by default at the top right corner of the map area when the tool is activated. It is not possible to have two tools activated at the same time, i.e. as soon as an additional tool is activated, the previous tool is closed.

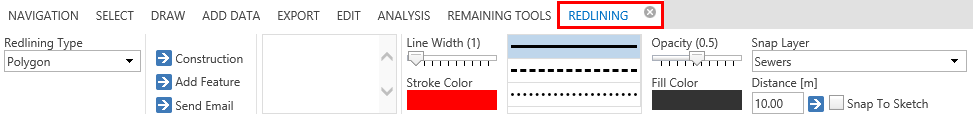

Dynamic tab for tools in the WebOffice core client

Dynamic tab for tools in the WebOffice core client

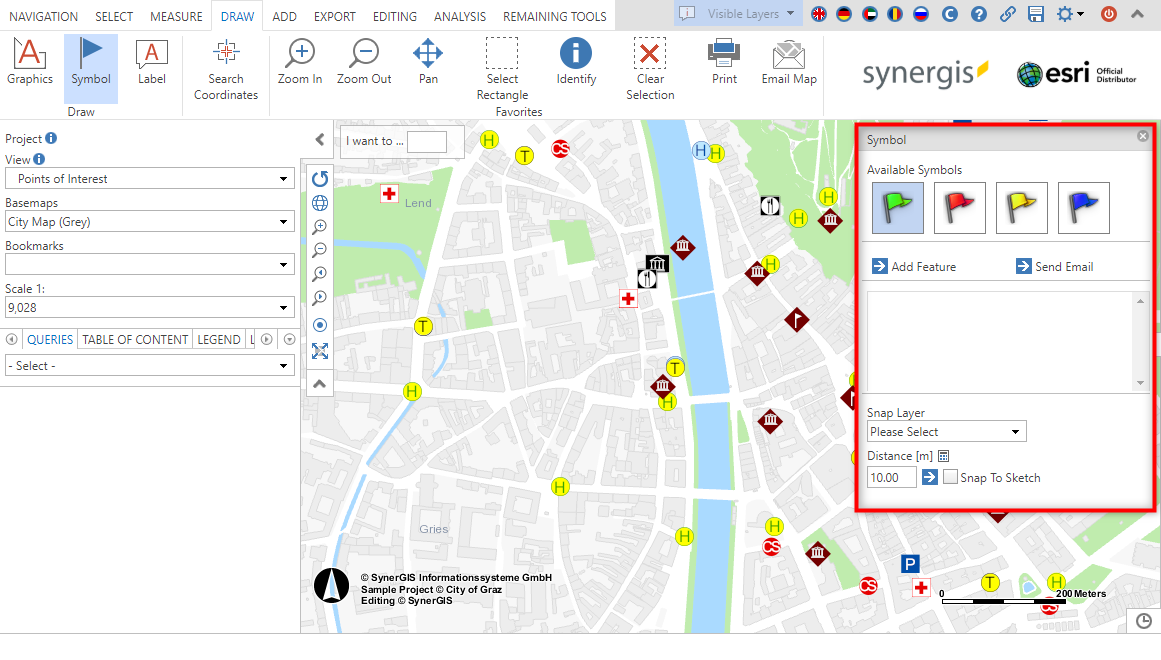

Tool dialog window in WebOffice core client

Tool dialog window in WebOffice core client



In the following chapter you will find a full description of the tools in the WebOffice core client:

Editing

Navigation

Select

Measure/Drawing

Export

Data

Analysis

Further Tools



icon_comment

No matter which Tool you use, it is always possible to navigate in the map during use of the Tool by using the right mouse button (Pan by moving the mouse) and/or the mouse wheel (Zoom In/Zoom Out).

icon_cross-reference

For details about the configuration of the ribbon the application configuration, see chapter Ribbon.
