The Measure Area tool provides two redlining types:

•Polygon

•Circle

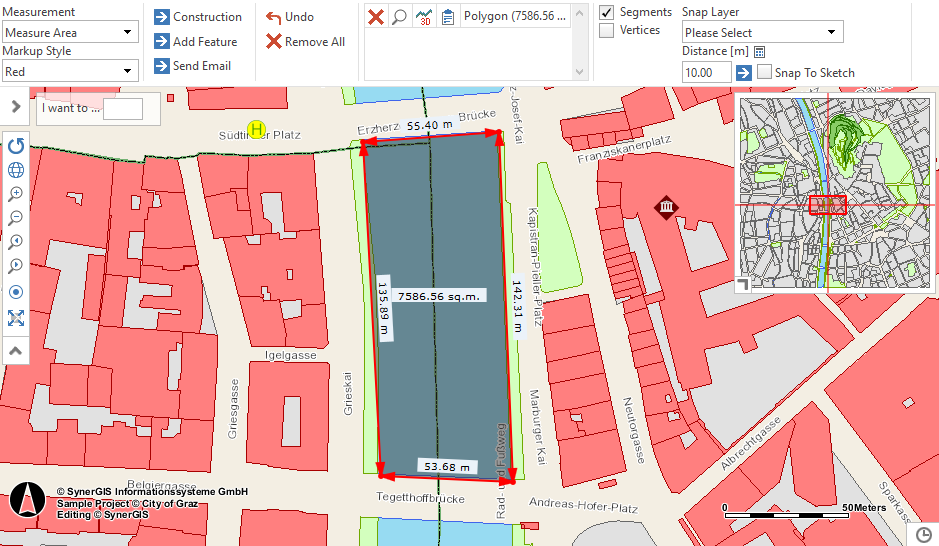

Measure an Area

After clicking the Measure Point tool you can directly start measuring areas in the main map display. Press the calculator symbol to select one of the configured Measure Units. In case you are using measuring the area will be displayed below the checkbox and can be copied to the clipboard by pressing the button in the top right corner of the blue box. Furthermore, you can check Complete Area Measuring to display additional elements (segments, total length, vertices and subtotals) you want to display in the map. You can choose the redlining style and use snapping if it is configured.



Place a vertex in the map with one left-click, finish the object with a double-click or by pressing the Add Feature button. Pressing Send Email will let you open your mail program and send an email with a state id link that includes the saved redlining that has been created in this session.

Note: See chapter Email Map for details about what is saved in a state.

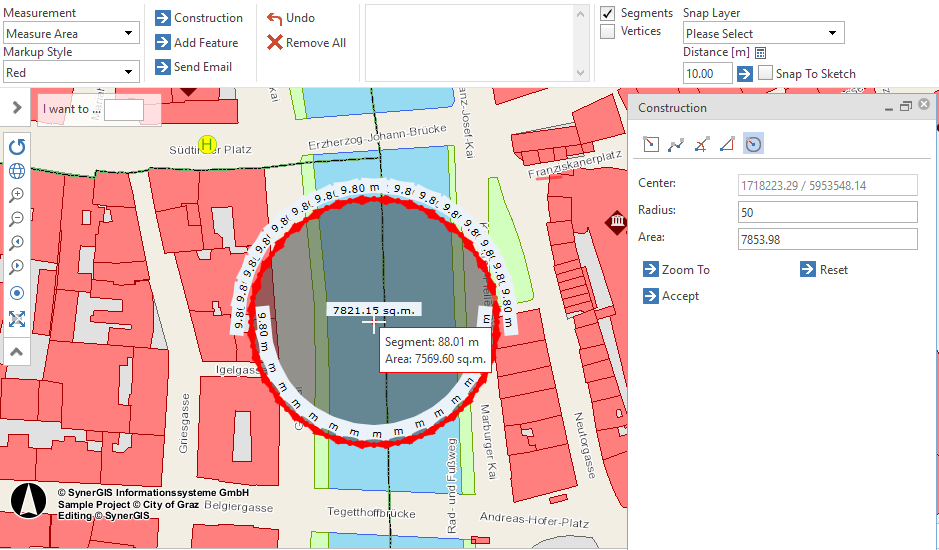

Measure a Circle

Measuring a circle is similar to measuring with polygons. Just left-click into the map to place the center point of the circle. Then either click another time to define the radius of the circle or enter the radius numerically in the tool dialog and click Set. Proceed as described above.





Edit a Measuring

Note: For details about editing a measuring, please see chapter Measure Distance.



Delete a Measuring

Note: For details about deleting a measuring, please see chapter Measure Distance.

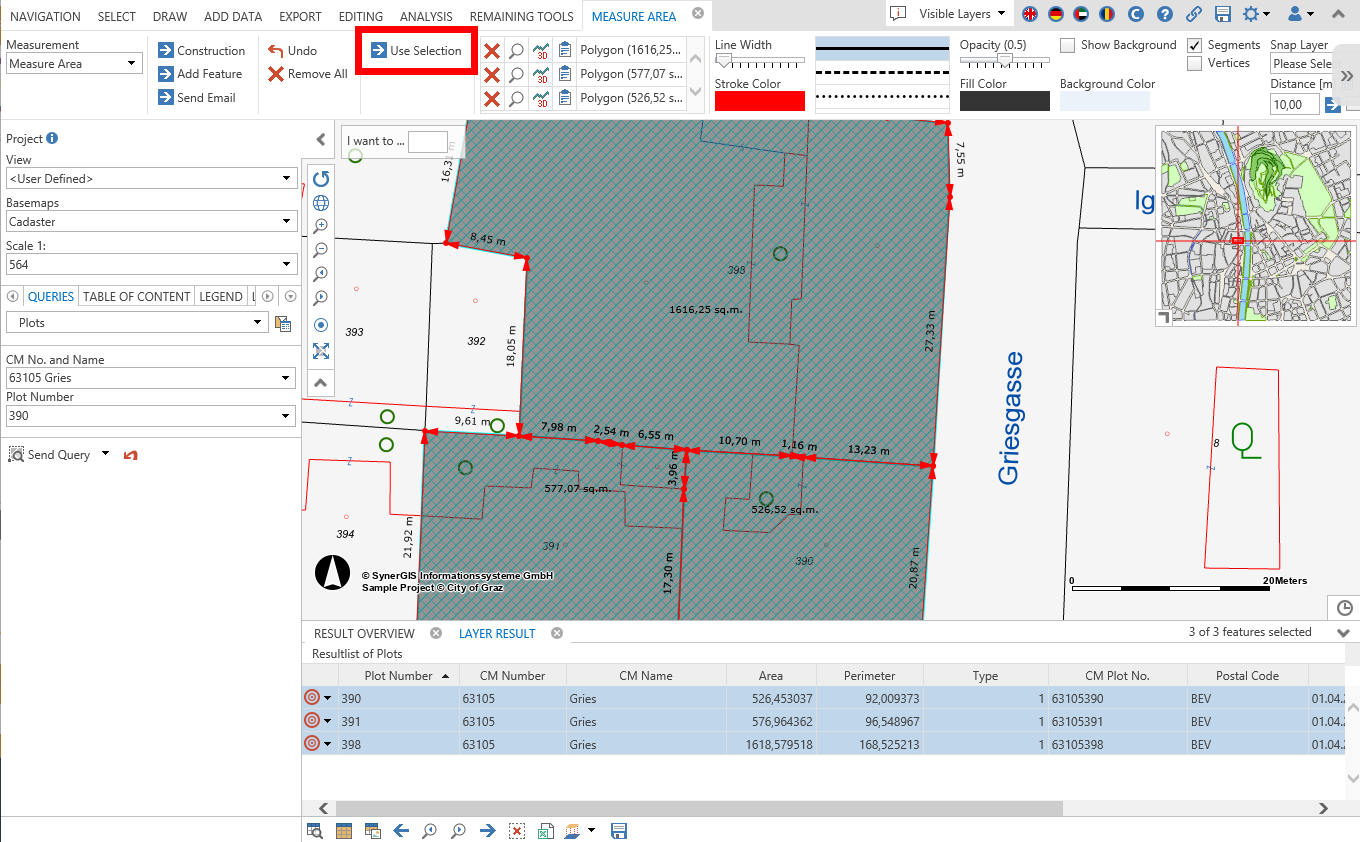

Use Selection

It is possible to use existing selections as input geometry for the area measurement.

This allows you to easily dimension one or more selected objects (area) with respect to their segments and area.







Note: See chapter Measure Area for details about the tool configuration in WebOffice author.

Note: See chapter Snap Layers for details about the configuration of snap layers in WebOffice author.

Note: See chapter Measure Units for details about the configuration of length and area units in WebOffice author.

Note: See chapter Measure/Markup for general information about working with measuring tools in the WebOffice core client.
