WFS feature types (analog to layers) can be located in the schema looking for the name attribute of the schema elements.
Note that the property 'substitutionGroup' of the element has to be 'gml:_Feature' and that the element has to have an extension with the value 'gml:AbstractFeatreType' in the 'base' property.

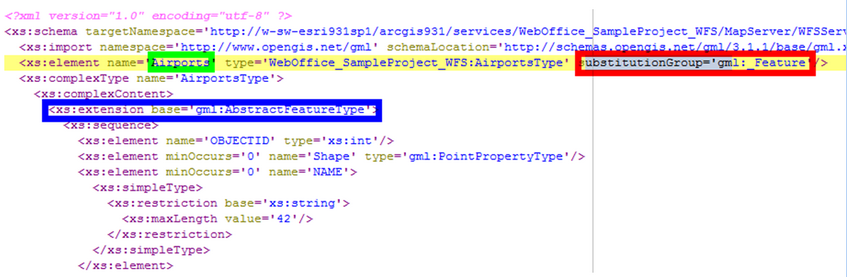

Locate WFS Feature Type name in WFS schema

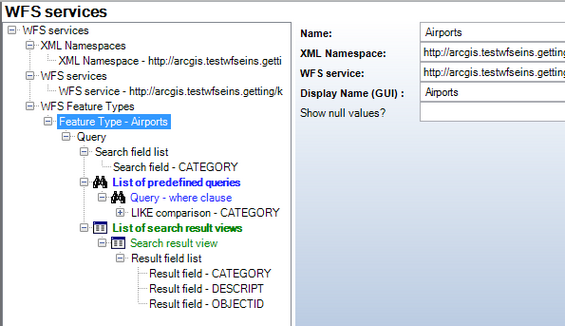

WFS Feature Type configuration - Project structure overall
Property |
Description |
Name |
Feature type name from the catalog description (XPath WFS_Capabilities/FeatureTypeList/FeatureType/Name). |
XML Namespace |
Choose the XML Namespace where the feature type is defined. |
WFS service |
Choose the WFS service to be requested for features of this type. |
Display Name (GUI) |
Table name shown in the GUI |
Show null values? |
Show null values in search result. |
WFS Feature Types - Project structure overall
