Request to select Objects |

|
Request to select Objects |
|
Use this combined request for enabling the user to select different object by using the tools 'Select Line' or 'Select Area'.
Note: The selections tools only work properly with WebOffice 10 R3 Patch 20120619-1738 and coming WebOffice 10 R3 patches!
The subsequently listed parameters marked with ‘mandatory’ all need to be provided for getting correct results.
•activetools (mandatory)
The parameter activetools=SELECTLINE or/and the parameter activetools=SELECTAREA will display the selection tools.
•combined_req=true (mandatory)
The parameter combinded_req=true indicates whether it's a combined request or not. (See Combined Requests (query and editing) for further information.)
•query_selectline_mw (mandatory)
The parameter query_selectline_mw identifies a WebOffice 10 R3 query in order to select objects.
•query_selectarea_mw (mandatory)
The parameter query_selectarea_mw identifies a WebOffice 10 R3 query in order to select objects.
•returnkey_selectline_mw (mandatory)
The parameter returnkey_selectline_mw specifies the field to be returned in the response.
•returnkey_selectarea_mw (mandatory)
The parameter returnkey_select_area_mw specifies the field to be returned in the response.
•callback_selectline_mw
This parameter specifies the name of the JavaScript method to be used as call back function for to select objects. (See callback_selectline_mw for further information)
•callback_selectarea_mw
This parameter specifies the name of the JavaScript method to be used as call back function to select objects. (See callback_selectarea_mw for further information)

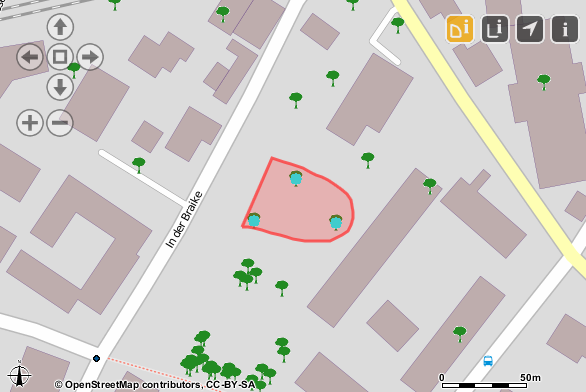

Selection of a point geometry with the Select-Area-Tool
Example:
http://w-vpc-kr-w7-e:8080/WO_10R3_SP2_latestBuild/client_mapwidget/default.jsp?baseURL=http://w-vpc-kr-w7-e:8080/WO_10R3_SP2_latestBuild&project=WebOffice_SampleProject_Doku&width=600&height=400&view=Edit&mapmargin=1&combined_req=true&maptransparency=1.0&activetools=SELECTLINE%20SELECTAREA&query_selectline_mw=laender&returnkey_selectline_mw=CNTRY_NAME&callback_selectline_mw=parent.selectlineResult&query_selectarea_mw=CTY&returnkey_selectarea_mw=CITY_NAME&callback_selectarea_mw=parent.selectareaResult
