Initial Extent

 Previous pageReturn to chapter overviewNext page

The Initial extent configuration specifies the initial map extent displayed by WebOffice 10 R3 client with start up.

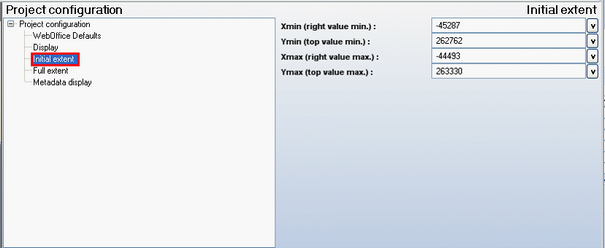

Initial extent - WebOffice category

Initial extent - WebOffice category



By clicking the button on the right hand side of the configuration properties, WebOffice author opens a dialog to make extent configuration easy.

Click ArcMap Extent button to take over the current ArcMap map extent.

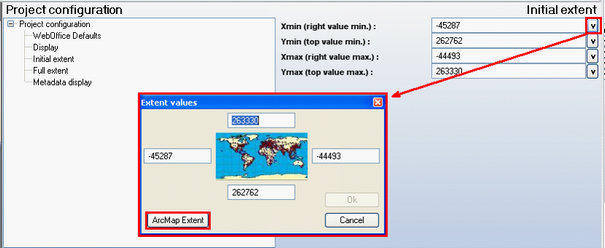

Using the current ArcMap map extent

Using the current ArcMap map extent
