Navigation:  WebOffice Application Configuration > Common > User Management > Configuration > Authentication Type NTLM

Using Authentication type NTLM it is possible to use web server functionality for providing Single Sign On functionality, e.g. in Windows networks using Microsoft Internet Information Server (IIS) as well as Internet Explorer (IE) the User Login check against the Microsoft Active Directory occurs automatically and implicitly. After Login to the computer when starting the working day, the user will not need to Log In again to use WebOffice 10 R3.



Recommended scenarios for this Authentication type are:

•Single Sign On scenarios in e.g. homogenous Microsoft Windows networks.





Authentication type NTLM configuration



Note that you need to configure the User Logins into the SynerGIS rights repository as well. The password specified will not be used by the application.



Note that you need to change the Tomcat configuration in order to use NTLM with IIS, Tomcat Redirector (ISAPI filter) and Tomcat:

Open the file <Tomcat installation directory\conf\server.xml with an XML or text editor. Check the value of the ‘tomcatAuthentication’ property.



E.g. a valid configuration entry would be:


<Service name="Catalina">
    <Connector connectionTimeout="20000" port="8080" redirectPort="8443"
disableUploadTimeout="true" acceptCount="100" maxThreads="150" minSpareThreads="25"
maxSpareThreads="75">
    </Connector>
    <Connector port="8009" redirectPort="8443"
protocolHandlerClassName="org.apache.jk.server.JkCoyoteHandler" protocol="AJP/1.3"
tomcatAuthentication="false">
    </Connector>



Note: If using Microsoft IIS and ISAPI Redirector to use Port 80 for your WebOffice 10 R3 web application, you have to enable the Windows Authentication for the virtual directory Jakarta and disable the Anonymous Authentication. Through this setting the user is authenticated to the web server by NTLM. If the IIS is inside the same domain as the client, the user credentials are automatically taken by it, which means that the user does not have to log on explicitly.





Note: If all previous settings have been configured but NTLM authentication still does not work, please check if changing the order of the windows authentication providers might be the solution.

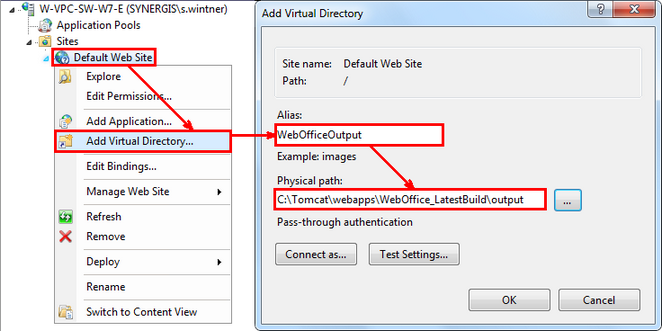

Note: The Admin must ensure to set up a virtual directory mapping the configured WebOffice output URL to the physical path of the WebOffice output directory (<WebOffice Application file path>\output). It must be possible to access files in this virtual directory using anonymous http. Detailed information about the configuration of the WebOffice output URL can be found in chapter WebOffice.

Note: For details on how printing and output generation works, see chapter Printing and how Print Output Generation works.
