ArcGIS Service
Configure the ArcGIS Service tool to give users the option to add ArcGIS Online MapServices into the WebOffice 10.9 R5 project. Either configure only the tool, so the user can enter the URL himself or predefine a list of ArcGIS Online services to be chosen from.
|
An ArcGIS MapService that already exists in the Map Collection cannot be configured in the list of ArcGIS Online/Server services too. |

Add ArcGIS Online/Server service tool configuration
Property |
Description |
|---|---|
Allowed servers for entered services |
Servers (host names) the user may add ArcGIS services from by entering a URL. Empty (default): every URL is allowed. See section Allowed servers for entered services below. |
Use tool? |
Specify whether this Tool is available in the WebOffice 10.9 R5 clients (true) or not (false). |
Add ArcGIS Service tool properties
Allowed servers for entered services
The property Allowed servers for entered services defines the servers from which users may add ArcGIS services by entering a URL.
•Separate multiple entries by comma, semicolon or space.
•An entry is a host name (e.g. services.arcgisonline.com) or a domain with a wildcard (e.g. *.arcgis.com for all servers below arcgis.com, but not arcgis.com itself).
•Specify the server name only, without scheme (https://), port and path. Internal servers can be listed as well.
If the property is empty (default), every URL is allowed, as before. If it is set, services from other servers are refused: the user gets a message, and a warning with the server name is written to the log file. The check applies to URLs entered in the tool, to the start parameter service_url (see WebOffice URL call interface) and to saved map states.
Always allowed are:
•the services from the predefined list of the tool (List of ArcGIS Services),
•the services of a web map opened with Open WebMap, when the web map is opened. In a saved map state, these services are checked like entered services.
|
Recommendation: In projects where users may add ArcGIS services freely, list the servers needed. Afterwards, test in particular saved map states that contain services from other servers. |
If you want to provide a list of predefined ArcGIS MapServices the user is to be allowed to choose from, configure the List of ArcGIS Services element that can contain one or multiple ArcGIS Services. A list of predefined services may be comfortable for the user, if he has to use specific services frequently. You can add both dynamic and cached ArcGIS Services into a dynamic project.
|
Full product support only for services from version 10.1 on. If the service is secured, the user has to enter credentials before using the service in the client. The particular service has to allow the operation query. |

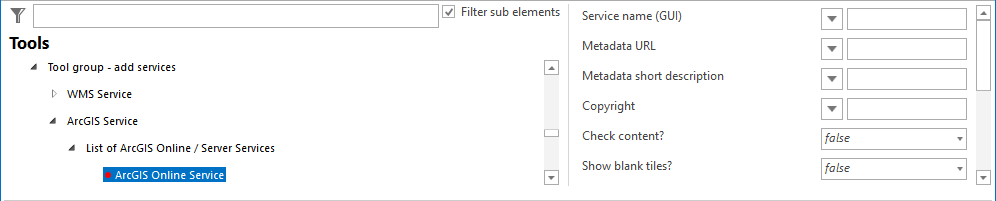

List of ArcGIS Online/Server Services configuration
In this list you can add an
•ArcGIS Server Feature Service (as of version 10.9 R6)
|
•See chapter Add AGS Online Service for details about adding ArcGIS Online services in the WebOffice core client. •See chapter Add ArcGIS Online Service for details about adding ArcGIS Online services in the WebOffice mobile client. |
