Problems during project initialization

Sometimes it can happen in a WebOffice application that projects could not be initialized completely and are therefore not available. The reason is because a project tries to initialize when starting the application, but the required server resources could not be initialized (e.g. if the main map service was stopped or is not yet available from the server after a restart or the data cannot be read from the database).



If a restart is performed on the server, the start up process of some processes and components on the server should be optimized. This can be optimized with the help of a script in the Windows Task Scheduler. A script for the server restart starts the processes and applications that are necessary for a functioning WebOffice application one after the other and waits each time until the previous step has completed.



The order of the script after restarting the entire server machine should be as follows:

Note: The server machine should already have initialized all other Windows services that are configured to Start Automatically.

1.Start IIS Admin Service

2.Start World Wide Web Publishing Service

3.Start WebOffice FTS-Index (Port 8983)

4.Start database

5.Start ArcGIS Server

6.Start WebOffice extensions

7.Start Apache Tomcat (WebOffice)

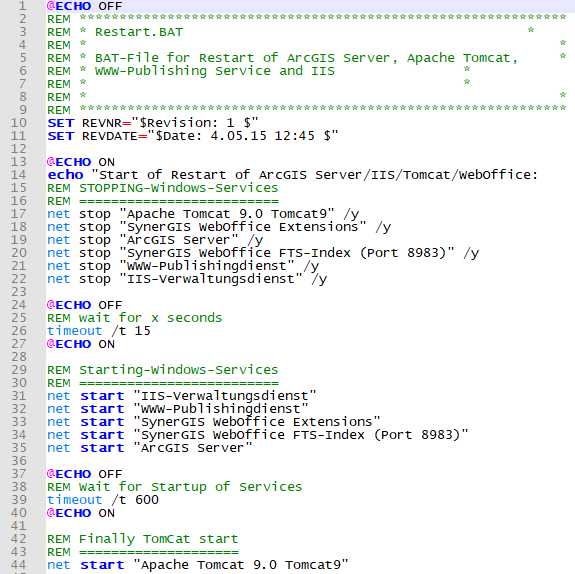

A ready-made script for this order is described in chapter Server Restart.

Note: Each task should not take place until the previous task has been successfully completed. Between the start of ArcGIS Server and the start of Apache Tomcat more time should be scheduled, depending on how many map services need to be initialized on the ArcGIS Server.

Note: See also chapter Server Restart.
