Export Profiles

<< Click to show table of contents >> Navigation: WebOffice author standalone > Tabs > Edit Project > Tool Group "WebOffice" > Layer Queries:

Export Profiles

Using export profiles, a data export can be started from a selection or a search result. To do this, configure the Export Profiles node below a layer query. Within this node you can now create 1 to n export profile configuration elements.

•First, configure the export profiles that should be available in the WebOffice 10.9 R2 SP1 project with the export tool. Details can be found in the chapter WebOffice extract server - Datenextraktion.

•Note, that the extract functionality must also be enabled on the corresponding search result.

•Currently exporting from a search result only supports the main map projection.

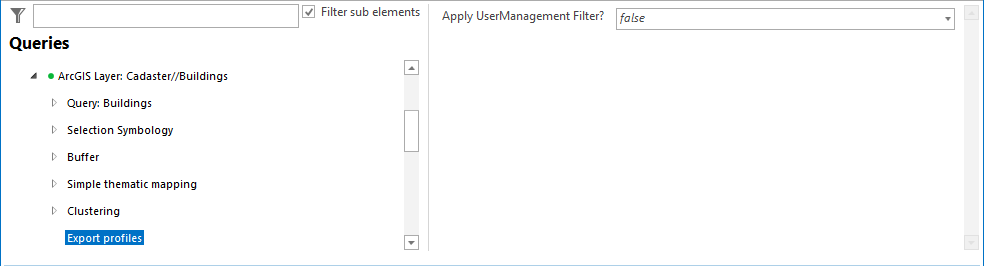

Export profiles

Property	Description
Apply UserManagement Filter?	Specifies if filters (attributive Filter / Restrictions for Layers) defined in UserManagement are applied when exporting.

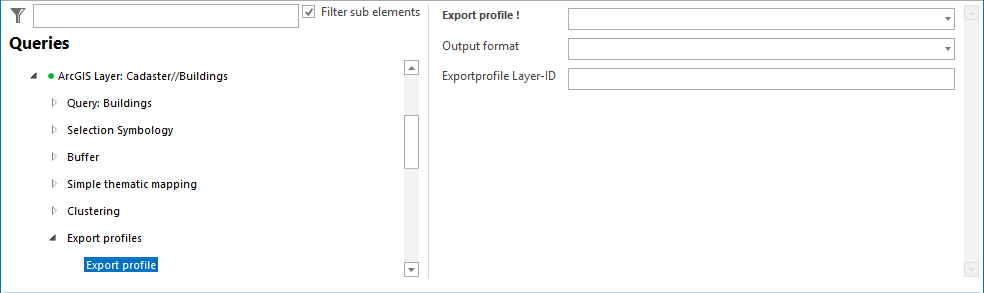

Export profile

Property

Description

Export profile

Export profile reference - WebOffice extract server - Datenextraktion.

Output format

Desired output format.

If at this point an output format is defined that is not permissible for the particular export profile,

the first configured output format will be used.

Exportprofil Layer-ID

If the export profile contains a Layer-ID different to the default Layer-ID (TopLevelGroup//Layername) it can be overridden by configuring this value.
