Magnifier
The Magnifier tool provides an overlay of the map in a different scale.
|
In the course of enlargement", the existing map image is not enlarged, but a scale dependent magnification/display takes place. This can also change the scale dependent symbolisation/cartography in the magnifying glass area. |

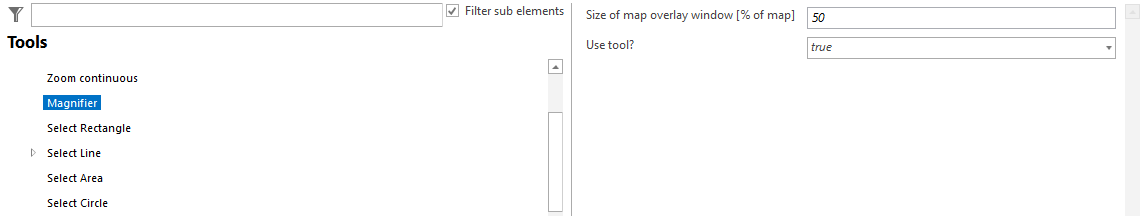

Magnifier tool configuration
Property |
Description |
|---|---|
Size of map overlay window [% of map] |
Size of overlay window [% of main map display]. |
Use tool? |
Specifies whether the tool should be used or not. |
Magnifier tool properties
Right-click to add a list of scale factors, which can then be selected in WebOffice core Client.

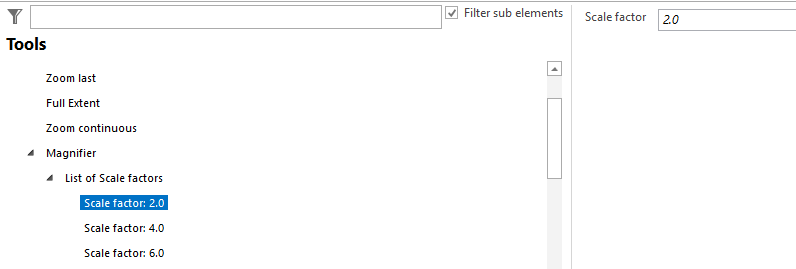

Configuration Magnifier - Scale factor
Property |
Description |
|---|---|
Scale factor |
Specifies the scale factor to be used for the magnifier. A value of 5 will display the magnified map in a 5 times larger scale than the main map. |
Magnifier tool properties
|
See chapter Magnifier for using the magnifier in WebOffice core client. |
