Print Series

Comments (0)

Configure the Print Series function to create print output containing multiple pages with the same scale.

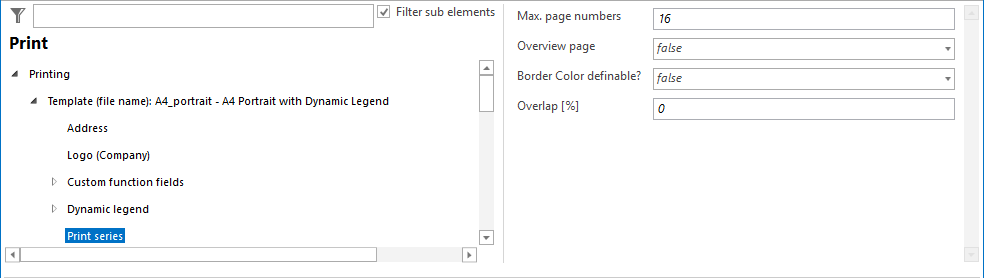

Print series configuration

Property

Description

Max. page numbers

Maximum numbers of pages

Overview page

Specifies inclusion of overview page in the print series.

In order to provide an overview page for the print series, make sure that a copy of the respective print template exists in the WebOfficePlotTemplates directory with the nomenclature <WebOffice print template name>_overview.layout.

Example:

WebOffice plot template name: A4_portrait.layout

required overview template: A4_portrait_overview.layout

Border Color definable?

Specifies whether the border color of the overview page is definable (Yes) or not (No). Activating this function will result in a color picker that is provided to the user in the toolbar.

Overlap [%]

Overlap percentage of specific print pages. Used only if the user provides a plot grid as input on the client side (overlap parameter is not applied when printing a selection of objects). Useful values vary between 0 (0% overlap) and 50 (50% overlap).

This parameter may also be manipulated in the WebOffice core client print form by the user.

Print series properties

See chapter Print for details about the tool configuration in WebOffice author standalone.

See chapter Template (File Name) for details about the configuration of print templates.

See chapter Print with Print Series for the tool appearance in the WebOffice core client.
