Overview Map - Display Extent
The overview map - display extent configuration specifies the overview map extent displayed by WebOffice 10.9 SP2 clients with start up.

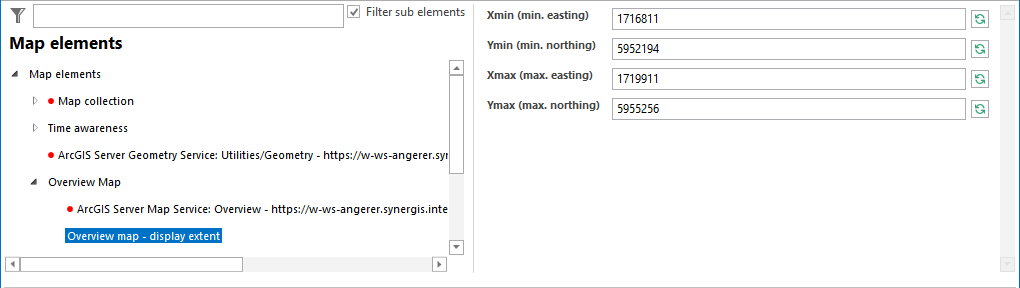

Overview map - display extent configuration
Property |
Description |
|---|---|
Xmin (min. easting) |
Minimum in geographic units. Corresponds to left side of map view. |
Ymin (min. northing) |
Minimum in geographic units. Corresponds to bottom of map view. |
Xmax (max. easting) |
Maximum in geographic units. Corresponds to right side of map view. |
Ymax (max. northing) |
Maximum in geographic units. Corresponds to top of map view. |
Overview map - display extent properties
By clicking the button to the right of the configuration parameters, WebOffice author standalone takes over the respective extent values from ArcMap/ArcGIS Pro. Alternatively, the entire map extent of the ArcMap/ArcGIS Pro project can be taken by clicking on the Take all extent values button.
