Author

Comments (0)

Configure the function field Author if you want to display a creator / author on your print output.

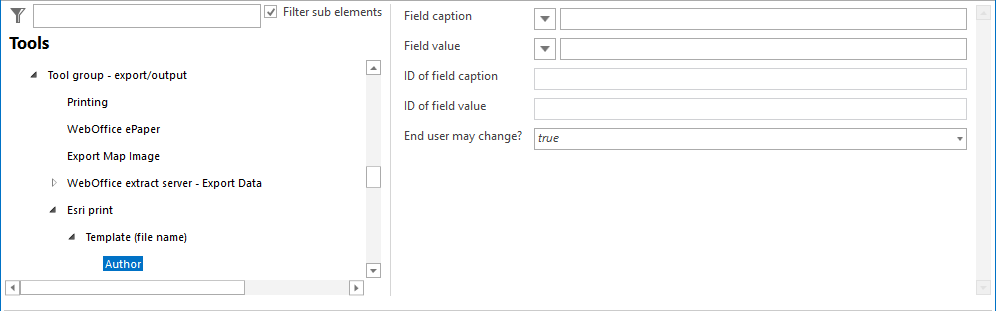

Configuration author field

Property

Description

Field caption

Caption in print template. Standard ratios are applied if there are no language-specific terms are specified.

Field value

Value in print template.

If User may change? is set to Yes you may also provide a list of possible values to the user. Use the | symbol as delimiter between the possible values, e.g. creator 1|creator 2. The first value will be the default value. If you want to provide several values but no default value start your listing with a | symbol, e.g. |creator 1|creator 2.

ID of field caption

The ID for this predefined function field is always author_caption.

ID of field value

The ID for this predefined function field is always author_value.

End user may change?

Specifies whether the user my change or set the value in the print tool form (true) or not (false).

Author properties

Make sure that your print template (.layout file) contains the function fields author_caption and author_value. Only then, the configuration in WebOffice author standalone will have an impact.

See WebOffice109_plot_author_UserManual.pdf for details about working with WebOffice plot author.
