The Measure Distance tool is configured by default to provide measure functionality. Optionally, you can enable 3D measuring if your project includes height info raster layers. Specify which measure settings (overall length, segments, vertices, subtotal distance) should be available in the WebOffice html client.

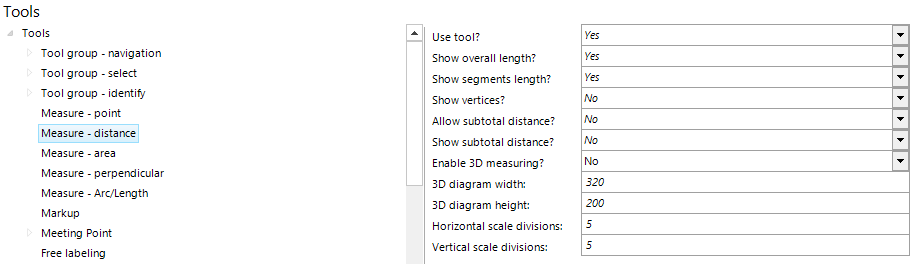

Measure Distance tool configuration
Property |
Description |
Use tool? |
Specify whether this Tool is available in the WebOffice client (Yes) or not (No). |
Show overall length |
Displays (Yes) or not (No) the overall length of a polyline. The single segment lengths is always shown and aligned with the measure line. |
Show segment length? |
Specifies if by default the line segments length will get displayed in the map (Yes) or not (No). |
Show vertices? |
Specifies if by default the coordinates of the vertices will get displayed in the map (Yes) or not (No). |
Allow subtotal distance? |
Specifies if the subtotal distance from the beginning of a polyline to each vertex can be displayed (Yes) or not (No, Default). |
Show subtotal distance? |
Specifies if the subtotal distance from the beginning of a polyline to each vertex are by default displayed (Yes) or not (No, Default). |
Enable 3D measuring? |
3D measuring based up on raster data. Note: For 3D measuring at least an elevation layer hast to be configured. See chapter Height Info Raster Layers ff. for details. |
3D diagram width |
Elevation Data diagram width |
3D diagram height |
Elevation Data diagram height |
Horizontal scale divisions |
Horizontal scale divisions count |
Vertical Scale divisions |
Vertical scale divisions count |
Measure Distance tool properties
Note: See chapters Measure/Markup and Measure Distance for the tool appearance in the WebOffice html client.
Note: See chapter Measure Distance for the tool appearance in the WebOffice flex (flash) client.
Note: See chapter Markup for details about the configuration of support for orthogonal measuring in WebOffice author.
Note: See chapter Snap Layers for details about the configuration of snap layers in WebOffice author.
Note: See chapter Measure Units for details about the configuration of length and area units in WebOffice author.
Note: See chapter Draw for more details about the measure/drawing tools in the WebOffice core client.
Note: See chapter 3D Measuring for more details about the configuration of 3D measuring as a custom tool in WebOffice core client.
