Provide the URL of a Geolocator Service and, if necessary, service user and password.

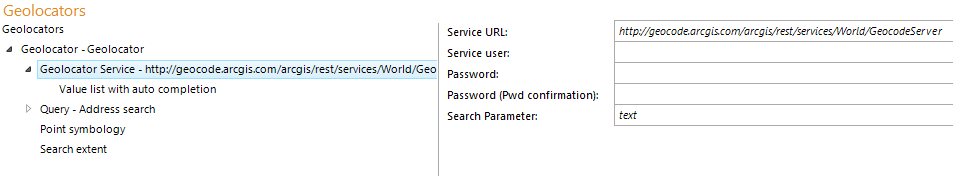

Geolocator service configuration
Properties |
Description |
Service URL |
Base URL of the service. Note: The locator function is usually used through the Esri World Geolocator (http://tasks.arcgis.com/ArcGIS/rest/services/WorldLocator/LocationServer/findAddress). |
Service user |
User name of user accessing ArcGIS Server service. Must be member of agsusers ("GIS Server Users") group on ArcGIS Server machine. Hint: If a domain user is used for accessing the service, then the windows domain needs to be provided in the format domain\user". If no domain is configured then authentication is done locally. |
Password |
Password of user accessing ArcGIS Server service (must be member of GIS Server users group on ArcGIS Server machine). |
Password (Pwd conformation) |
Password of User accessing ArcGIS Server service (must be member of GIS Server users group on ArcGIS Server machine). |
Search Parameter |
Name of the HTTP Parameter containing the searched address. |
Geolocator service properties
If you want to provide suggestions in your WebOffice 10.9 SP2 client, when typing some characters into the search field, then you have to configure a value list with auto completion.

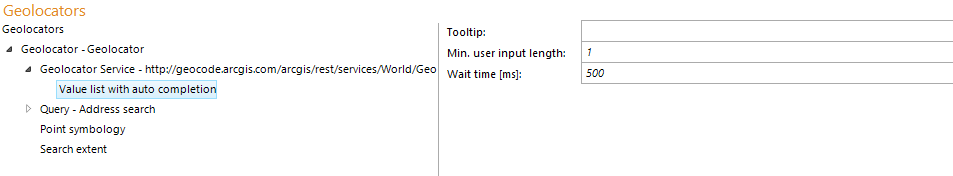

Geolocator Service - Value list with auto completion
Properties |
Description |
Tooltip |
The tooltip entered in the textbox part of the advanced input list. Example Enter street name. |
Min. user input length |
Specifies the necessary number of characters to be typed in by the user to get the list box populated automatically with the values by the server. |
Wait time [ms] |
Time to wait before the server request is submitted [ms]. The configured wait time is also valid for full-text search. |
Geolocator Service - Value list with auto completion properties
Note: See chapter Geolocators for general information regarding geolocators.
Note: Define a geolocator query together with your desired result fields. See chapter Geolocator Query for details.
Note: Specify the selection display of the geolocator in Point Symbology.
Note: Specify a certain search extent in Search Extent.
Note: Please find more details about the geolocator query in the WebOffice html client in chapter Geolocator Query.
