Using Layers (with Templates) it is possible to control the layers available as template layers for the Copy from template edit action.
Note: Currently the layer configured for templates has to be a map service.
Note: You can copy from template layers of the same geometric type like the edit layer only.
Note: The edit action Copy from template is only available for WebOffice core client.

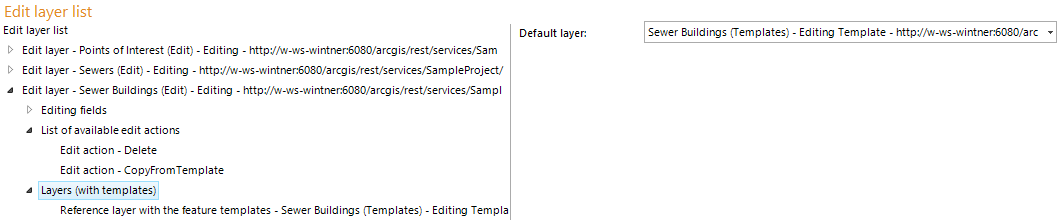

Layers (with templates) configuration
Property |
Description |
Default layer |
Specifies the default layer to be used in the Copy from template edit action. |
Layers (with templates) properties

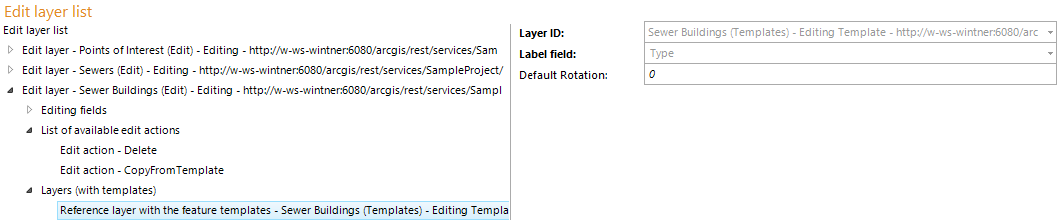

Reference layer with the feature templates configuration
Property |
Description |
Layer ID |
Layer ID of the template layer in the used map service. |
Label field |
Specify the attribute field of the template layer that will be used to display the available feature templates in the client. Note: Feature templates in this context are simply all existing features of this layer. It is recommended to create a specific template layer/service that will not be used for map display. |
Specifies the default rotation (units: degree; values between 0° and 359°; for example 45.5°) for the new features which are to be created (based on the template). Note: If you configure a rotation unlike 0, this rotation will be used instead of the rotation set by the user. |
Reference layer with the feature templates properties
Note: See chapter List of Available Edit Actions for details how to configure the edit action copy from templates".
Note: See chapter Edit Layers for details about the configuration of edit layers.
Note: See chapter Editing for details about editing in the WebOffice core client.
