Using the Project linking configuration it is possible to provide functionality in the WebOffice 10.9 SP2 clients to switch from one WebOffice 10.9 SP2 project to another on the fly.
The current map extent gets passed, therefore using project switching it is possible to view different aspects of one specific location.
In order to provide project linking inside the WebOffice 10.9 SP2 project, you need to configure
•a List of Projects (all available projects for linking) and
•a Project Switching Index (the index specifies for each WebOffice 10.9 SP2 project to which other projects the user is able to switch to).
Project Groups are another available child element of the node project linking. The idea behind project groups is, to logically group related projects, so users can choose from this group of projects in case they are starting WebOffice 10.9 SP2 without any specification of a project.
Project linking configuration
Property |
Description |
Defines if the traditional group and project choice drop-down or the modern project tiles are shown when the application is called without a project id. Note: The modern project tiles (Landing Page) are NOT supported in IE 8! |
|
Map choice as tab control? |
Provide tab control for switching from one project to another (Yes) or provide drop down list in toolbar (No) of WebOffice 10.9 SP2 clients. |
All projects available as switch targets? |
Provide all projects of the WebOffice 10.9 SP2 Application in the project choice control (Yes) or only specific projects (No). Note: In case you have disabled this option (No), you need to define a Project Switching Index to provide project switching. |
URL to the WebOffice 10.9 SP2 project which shall be used as container for ArcGIS Online web maps and map services. Note: The project should use web mercator as reference system to enable usage of default ArcGIS Online content. |

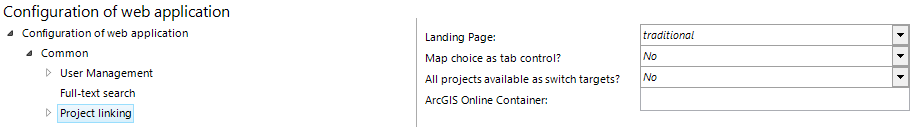

Project linking configuration
Note: Go through chapter Project to see how project linking appears in the WebOffice html client.
Note: Go through chapter Project Change to see how project linking appears in the WebOffice flex (flash) client.
Note: Go through chapter Projects to see how project linking appears in the WebOffice mobile client.
Note: More details for customizing the landing page please find in How To Configure ... Landing Page.
