In node Generic Tiles single generic tiles can be defined which can be divided into groups of generic tiles.
Note: The requirements for this section is the configuration of the property modern within the project linking landing page.
If you want to summarize your generic tiles into groups then create a new node Group of generic tiles and define title, font color and font size of the group title.

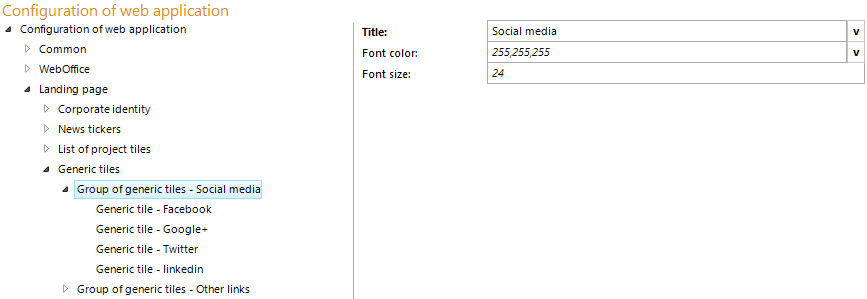

Configuration - groups of generic tiles
Right-click on the group of generic tiles and you can add individual generic tiles within the group.

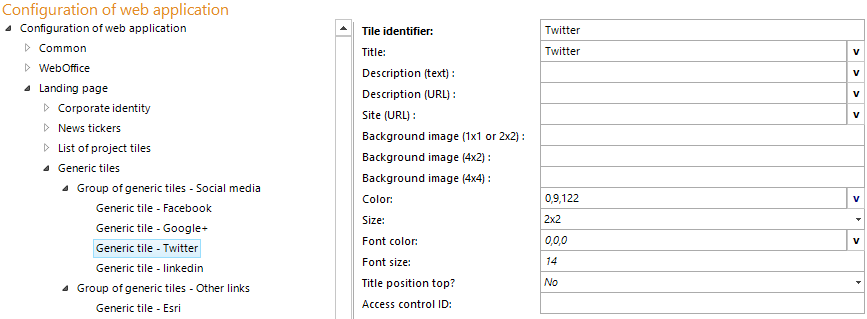

Configuration - generic tile
Property |
Description |
Tile identifier |
Tile name. An unique identifier of the tile. Please avoid use of special character data in the identifier, like space, non-ASCII characters, UTF-8 characters, which should be encoded or misunderstood in a URL. |
Title |
Title of the tile |
Description (text) |
A more detailed description (some text) |
Description (URL) |
Link to the homepage with a more detailed description of the content (http://...) |
Site (URL) |
Link to the site (homepage) with the project, service or map (http://...) |
Background image (1x1 or 2x2) |
Thumbnail image URL (e.g. pub/images/... or http://...) for tile size 140x140 pixels. The tile size for 1x1 is scaled down automatically. |
Background image (4x2) |
Thumbnail image URL (e.g. pub/images/... or http://...) for tile size 290x140 pixels. |
Background image (4x4) |
Thumbnail image URL (e.g. pub/images/... or http://...) for tile size 290x290 pixels. |
Color |
Color of the tile (RGB values) |
Size |
Size of the tile |
Access control ID needed for access control based on UserManagement module. If an ID is configured here (eg MY_GENERIC_TILE) and WebOffice UserManagement module is used, the user role is checked whether it provides the necessary application right or not (according to the example the application right would be MY_GENERIC_TILE). If the necessary application right is not available, the generic tile and hence the link for accessing the tile's site will not be available in WebOffice 10.9 SP2. Note: More detailed information about the configuration of the restrictions within the UserManagement Admin Web you can find in the chapter applications. |
Configuration parameters - List of generic tiles
Note: The application must be reloaded after saving the changes for the Landing Page.
