North Arrow on Print Template
This HowTo chapter shows you how to configure a North Arrow function field on your print layout.
Open WebOffice_plot_author.mxd
First open WebOffice_plot_author.mxd from <ArcGIS Server location>\directories\WebOfficePlotTemplates.
|
•Check whether the dataframe print is activated. If not, activate it. •Check whether view is set to Layout View". If not, change view. |
Load a Layout File
Now click the button Load Layout in the ArcMap Toolbar of WebOffice plot author to open a print layout. Select a layout file from the list of predefined layouts to modify it.

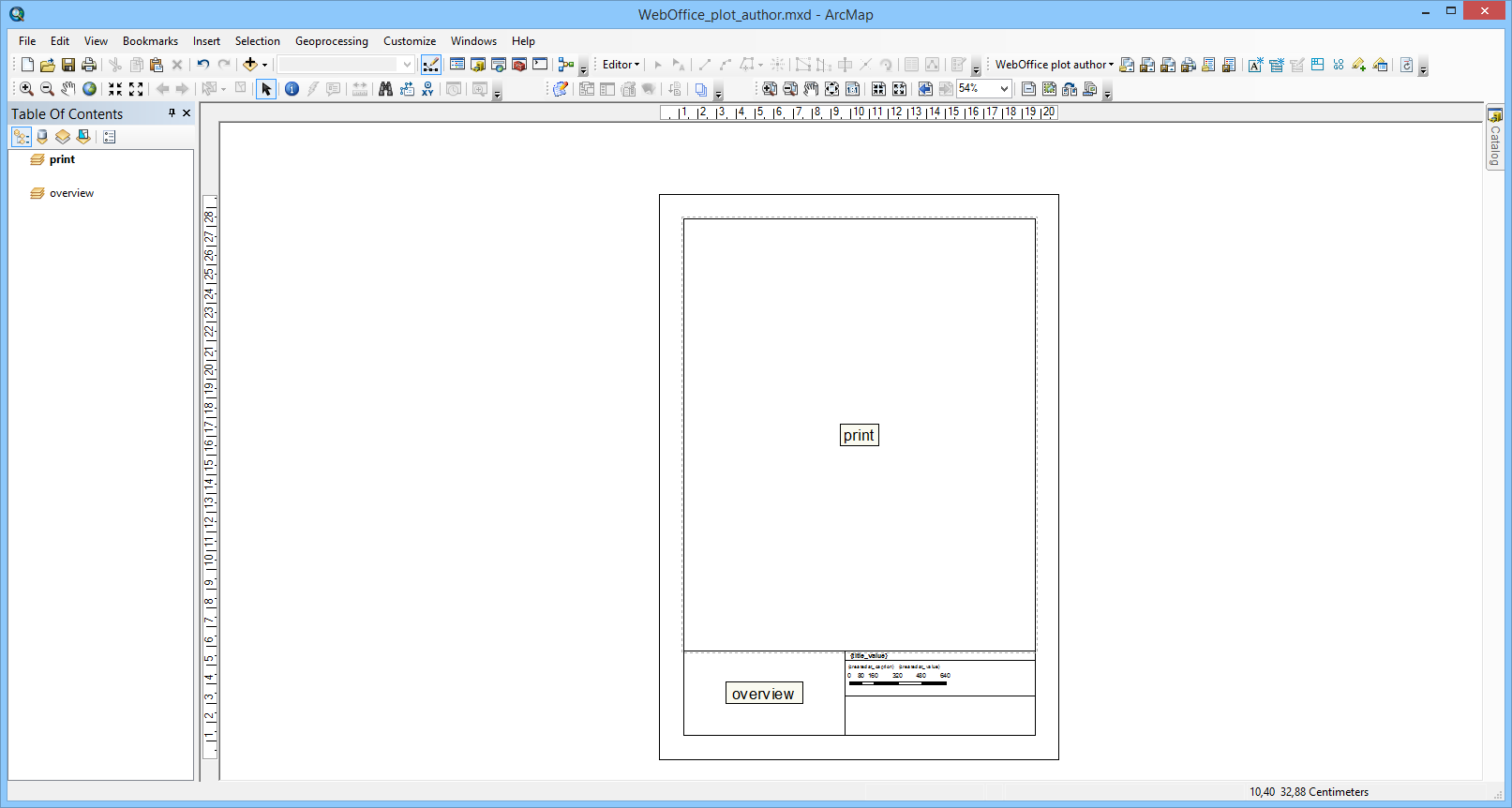

Open WebOffice_plot_author.mxd with activated dataframe "print" and "layout view" and load a print layout
Configure a North Arrow Function Field
The north arrow is implemented as a logo function field with the technical ID value northarrow". WebOffice 10.9 SP2 currently generates a north arrow image size 45 x 45 pixels, therefore it is recommended to size the logo function field 1.2cm by 1.2cm. If you want to insert a new logo function field use the button Insert logo from the WebOffice plot author toolbar.
WebOffice plot author toolbar: Insert Logo
Place the logo as you like and edit the properties:
•Width/Height: 1.2cm
•Element Name: northarrow

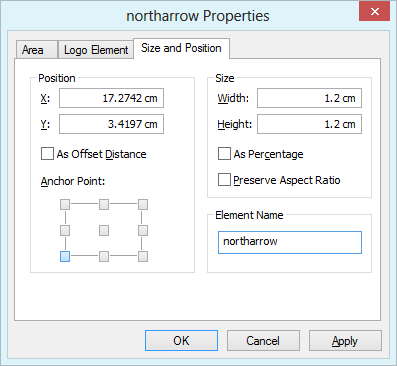

Logo properties
Then save the layout file with the according button in the WebOffice plot author toolbar.
|
•After adding a new function field you have to Reload Resources of affected WebOffice 10.9 SP2 projects in SynAdmin. •Configure a North Arrow in WebOffice author if you want to have a specific north arrow on the print. |

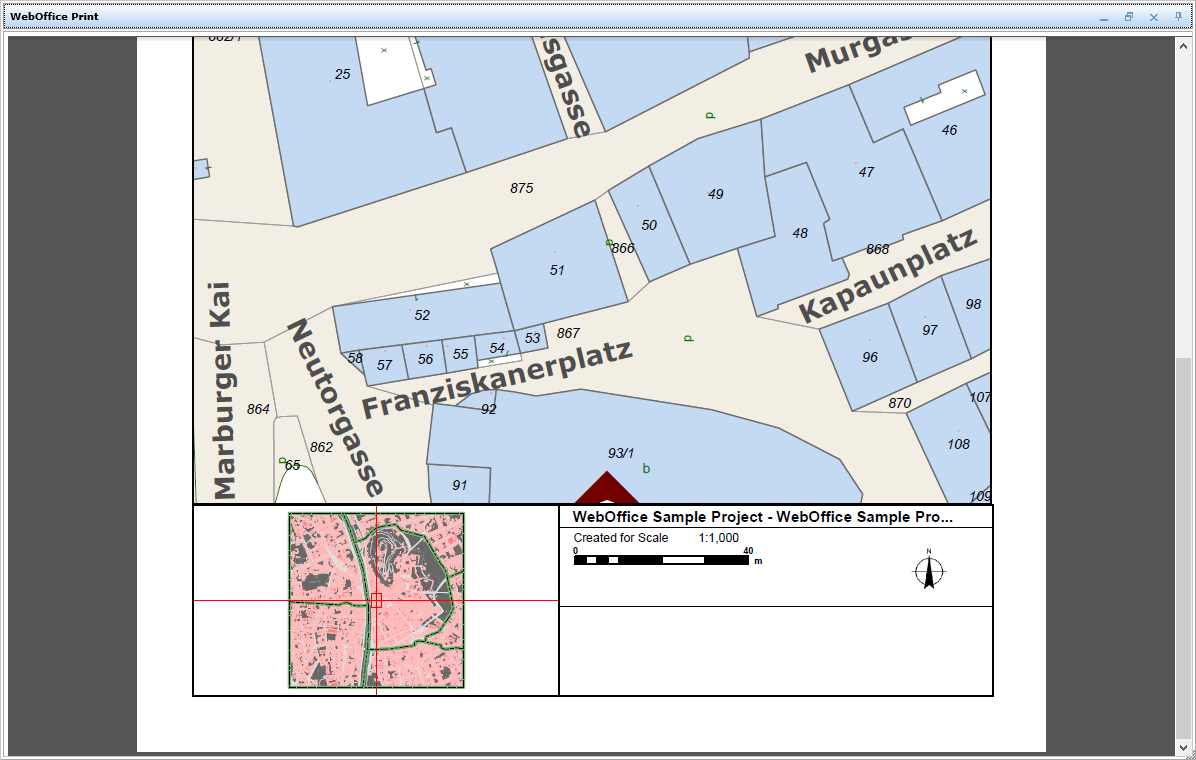

North arrow displayed on the print output
|
•See chapter Print for detailed information about the tool configuration in WebOffice author. •See chapter Printing with Function Fields for a complete list of available function fields. |
