New Project

Previous pageReturn to chapter overviewNext page

"New Project" is nearly identical with the Wizard "Create project" in WebOffice author standalone. To create a new project you have to enter the project name, the main map service, geometry service and output service as well as an overview map and a basemap.



For a quick overview on configuring a WebOffice 10.8 SP2 project in less than a minute, see the following video tutorial:



New Projet Wizard





Step 1: Type
Go to File -> New Project. In step 1 you have to decide whether a new WebOffice 10.8 SP2 project should be created from scratch or whether an existing Web Map from your Portal for ArcGIS should be used as the basis for the WebOffice 10.8 SP2 project configuration.

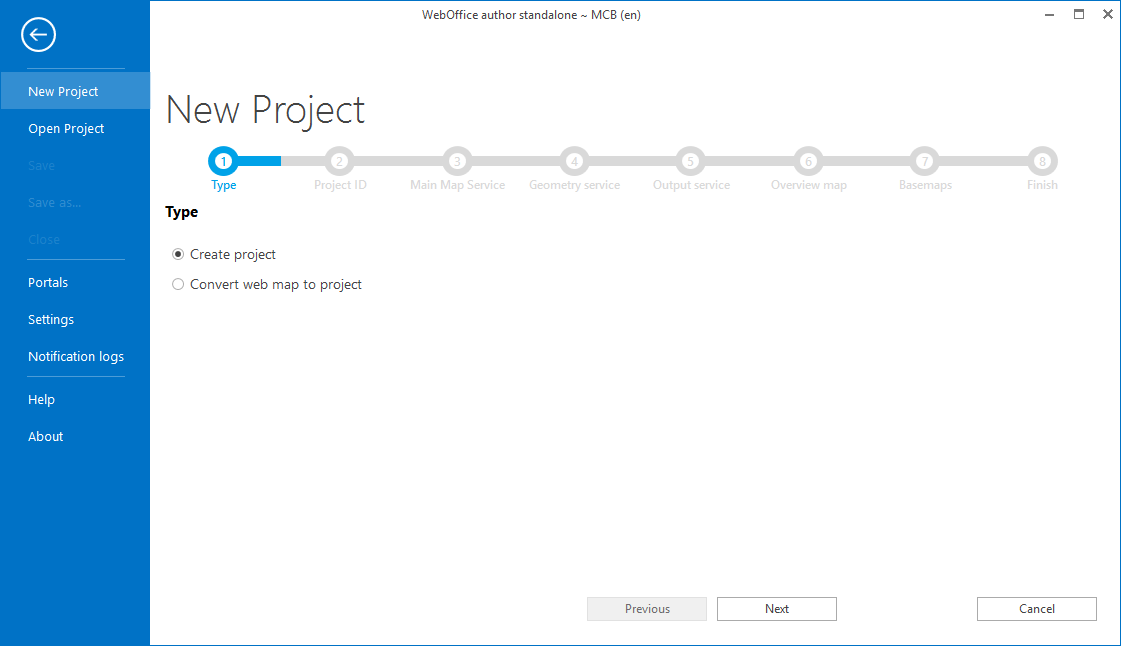

Wizard "New Project" - type

Wizard "New Project" - type

Note: The following steps describe the process of creating a WebOffice 10.8 SP2 project from scratch.



Step 2: Project ID

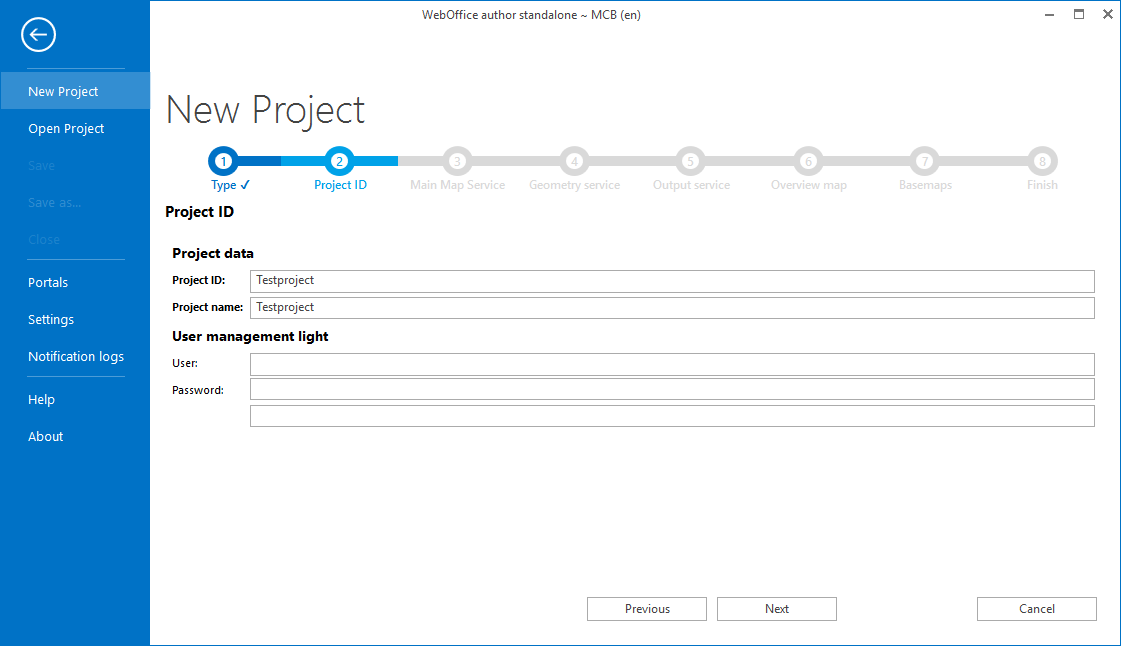

Enter the Project ID and the Project name. The WebOffice 10.8 SP2 project will be started in browser using the project ID as an URL parameter (e.g. project=Testproject). Be sure not to use any special character, german umlauts or spaces in the project ID. The project name will be displayed in the title bar of the WebOffice author and the browser. Optionally configure a user and a password to activate User Management light.



woas_file_projectwizard1

Wizard "New Project" - project settings



Click Next.



From here on, the wizards for "Create Project" and "Convert web map to project" differ.



A) Create Project



Step 3: Main Map Service

Choose an already existing ArcGIS Server account (or create a new one). Enter the REST-URL of the map service you want to use as a main map service. You will find this on your ArcGIS Server Manager -> Services. Choose your Service and click on functions.

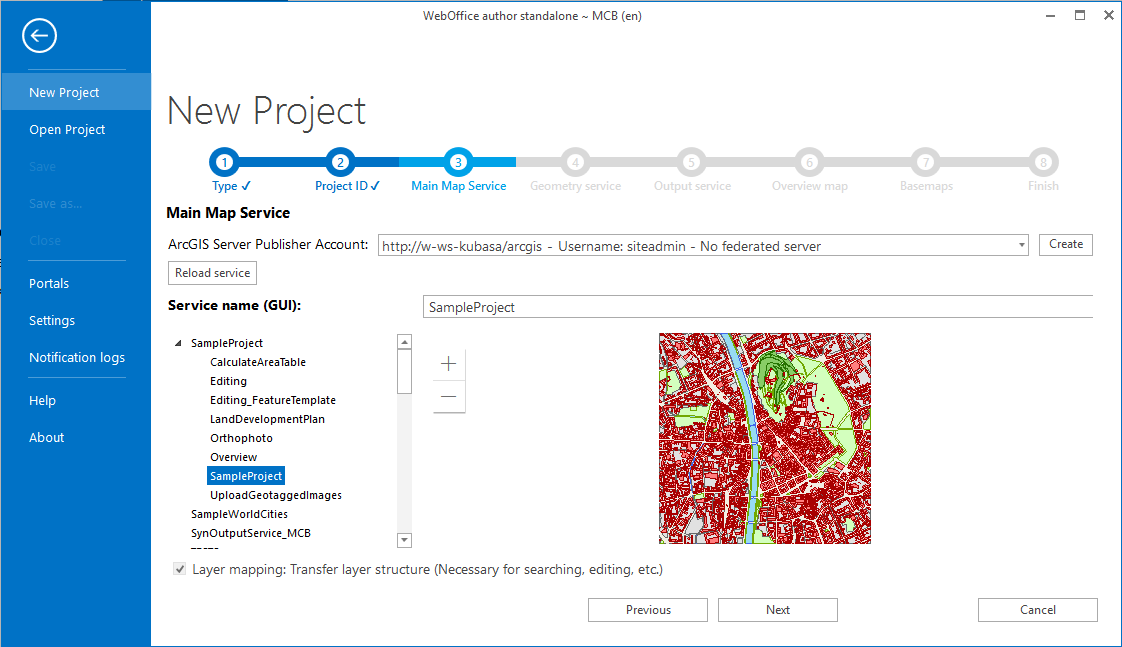

woas_file_projectwizard2

Wizard "New Project" - Main Map Service

Click Next.



Step 4: Geometry Service

Now it is necessary to add a geometry service to the WebOffice 10.8 SP2 project configuration.

The geometry service is create automatically with the installation of ArcGIS Server in the folder Utilities. Initially, this service is stopped. You can start it directly via ArcGIS Server. The default path is already used as the Service URL in this step.

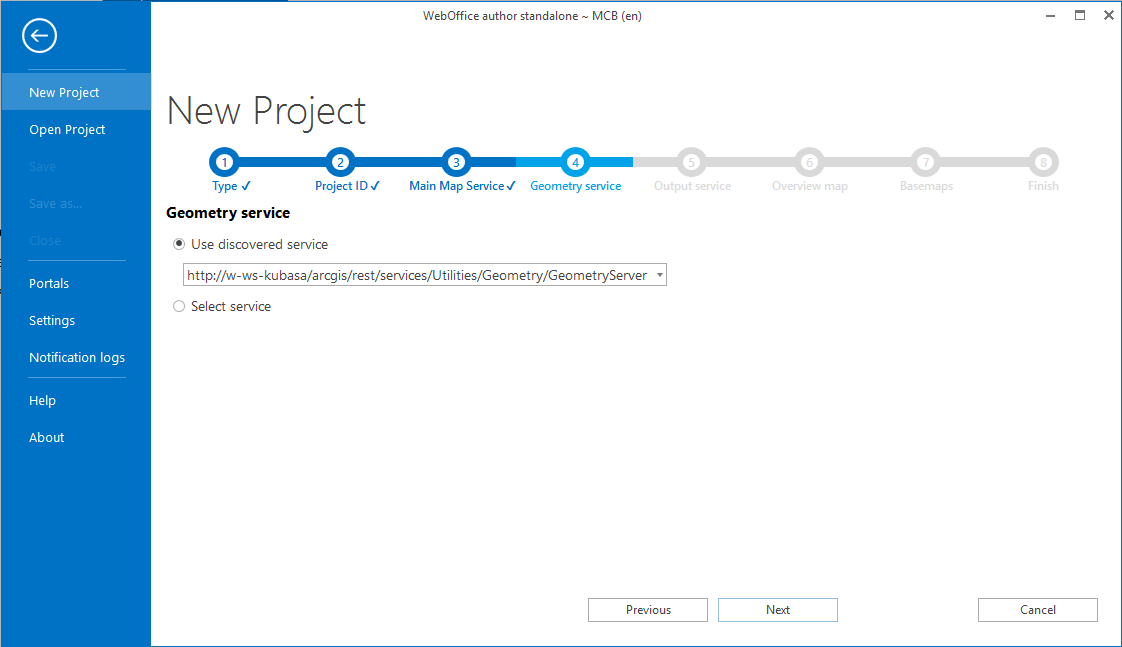

woas_file_projectwizard3

Wizard "New Project" - Geometry Service - Use discovered service

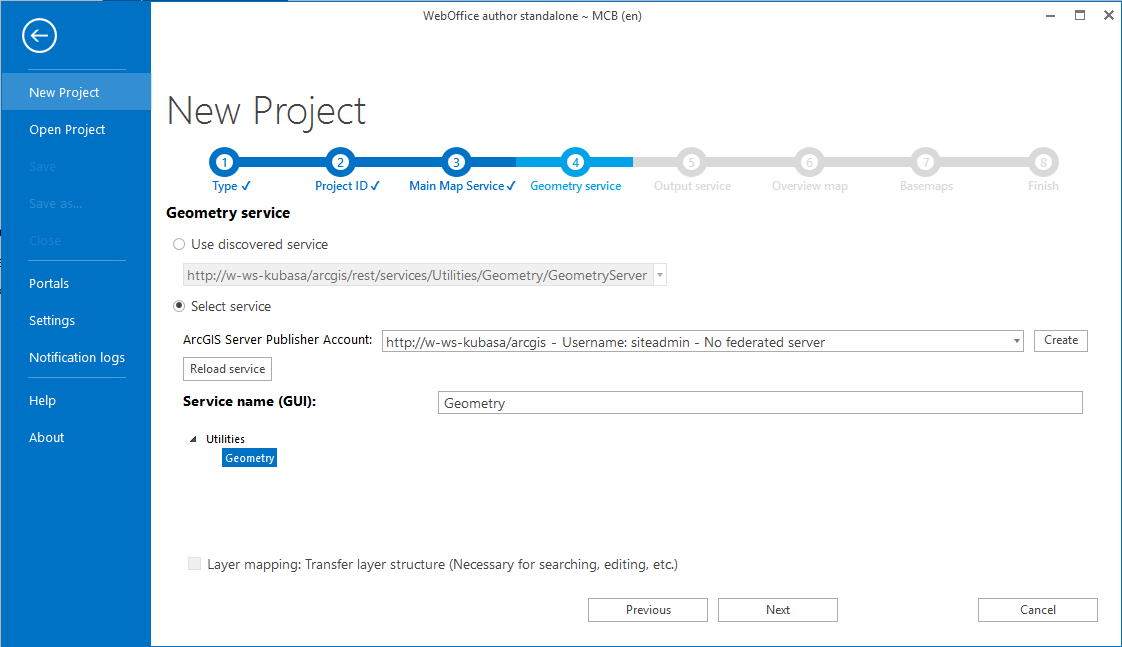

woas_file_projectwizard4

Wizard "New Project" - Geometry Service - Use discovered service - Select service



Click Next.



Step 5: Output Service

The URL to the Output Service can also be found using your ArcGIS Server Manager. The default path of the Output Service is also already used in the project wizard.

Note: Don't forget to check, if your Output Service has been started. More information on Publishing the SynOutputService.

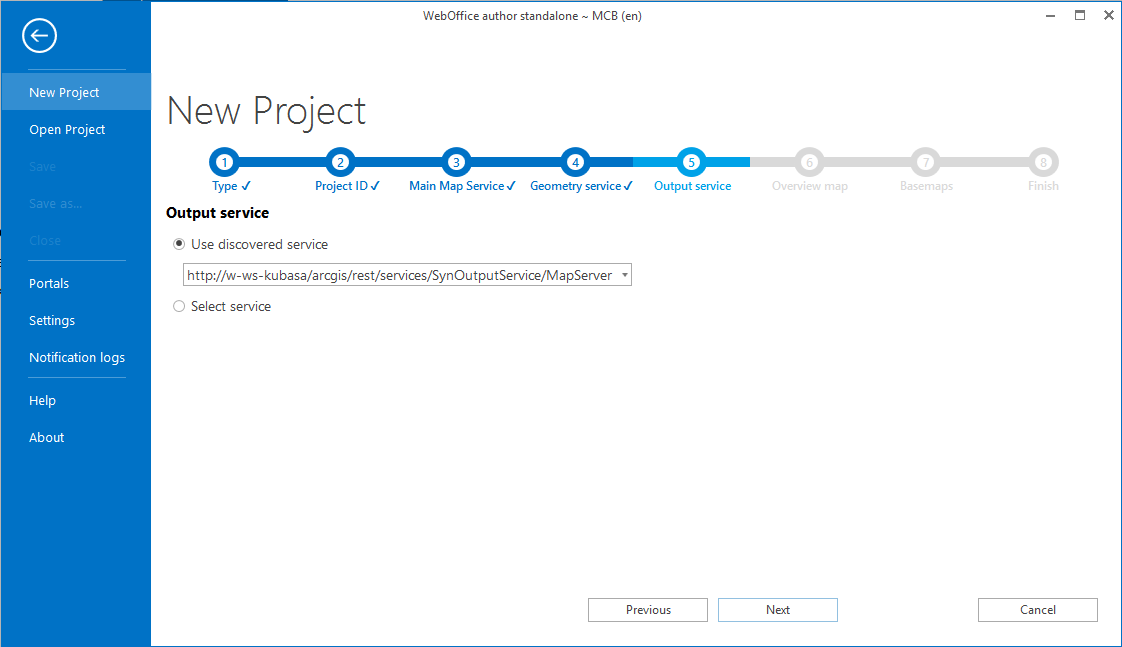

Wizard "New Project" - User discovered output service

Wizard "New Project" - User discovered output service

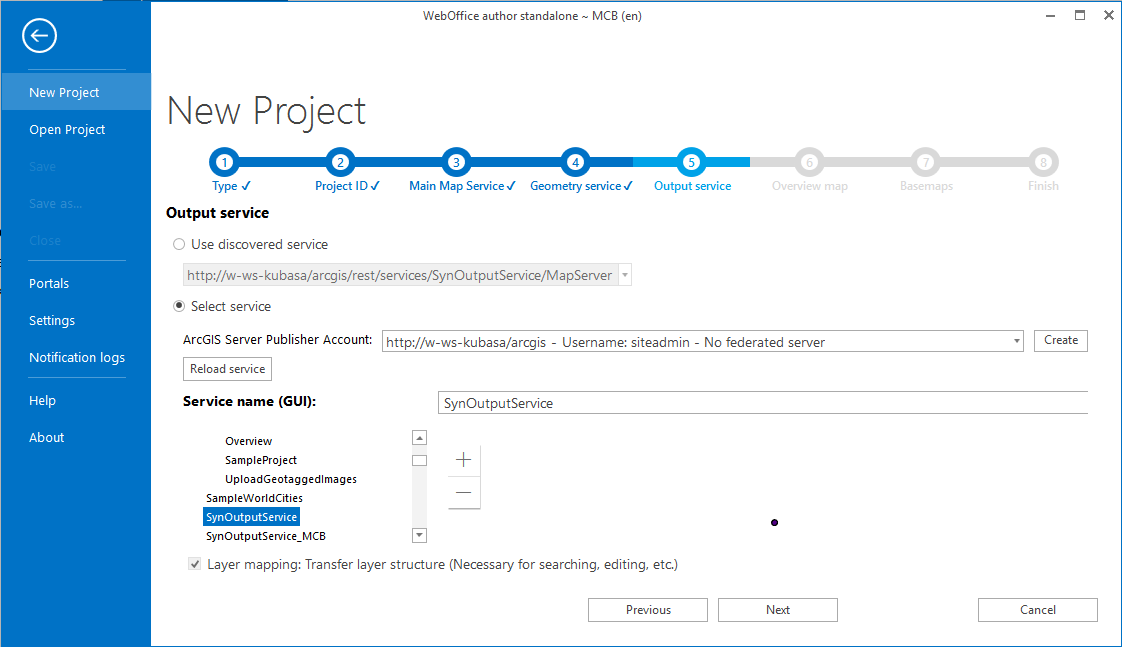

woas_file_projectwizard5

Wizard "New Project" - Output Service



Click Next.



Step 6: Overview map

WebOffice 10.8 SP2 projects can be configured with overview maps. Please select an overview service type in this step:

•No Overview map

•ArcGIS Server Map Service

•ArcGIS Online (preconfigured)

•OpenStreetMap

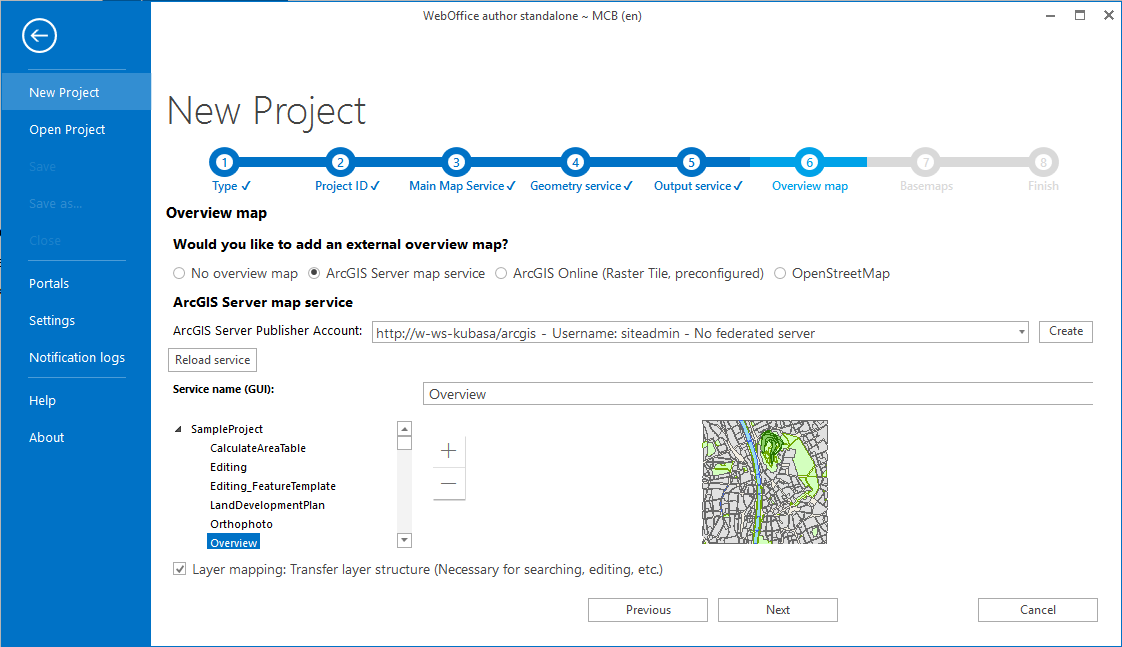

woas_file_projectwizard6

Wizard "New Project" - Overview map



Click Next.

Note: If you have chosen "No overview map" or "OpenStreetMap" there will be no fields to configure. When choosing ArcGIS Server map service please select the ArcGIS Server Publisher Account and the Service URL. When choosing ArcGIS Online you have the choice between four layers World Topographic Map, World Street Map, World Light Gray Basemap and World Dark Gray Basemap.



Step 7: Basemaps

Decide whether you want to add an external basemap or not. You have the choice between several Basemaps from ArcGIS Online (Raster and Vector Tile), OpenStreetMap or Bing Maps. Please be aware that you need a token, when choosing Bing Maps. You can also select an empty Basemap. Please also choose your default Map View.

Note: WebOffice author needs a working internet connection to access external services.

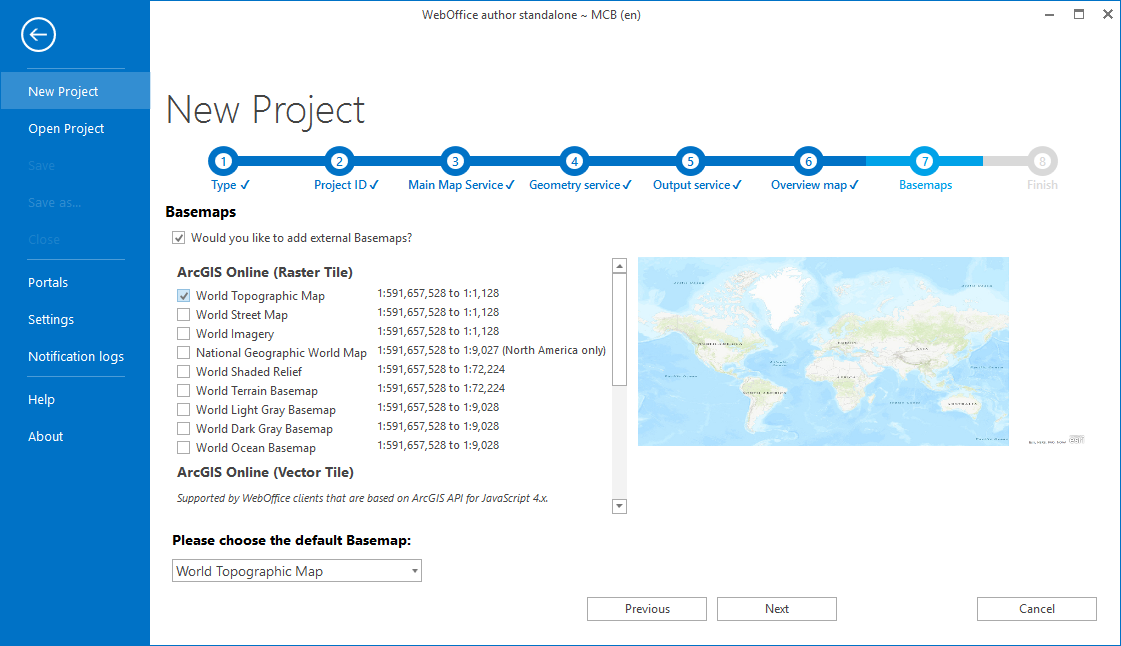

woas_file_projectwizard7

Wizard "New Project" - Basemaps

Click Next.

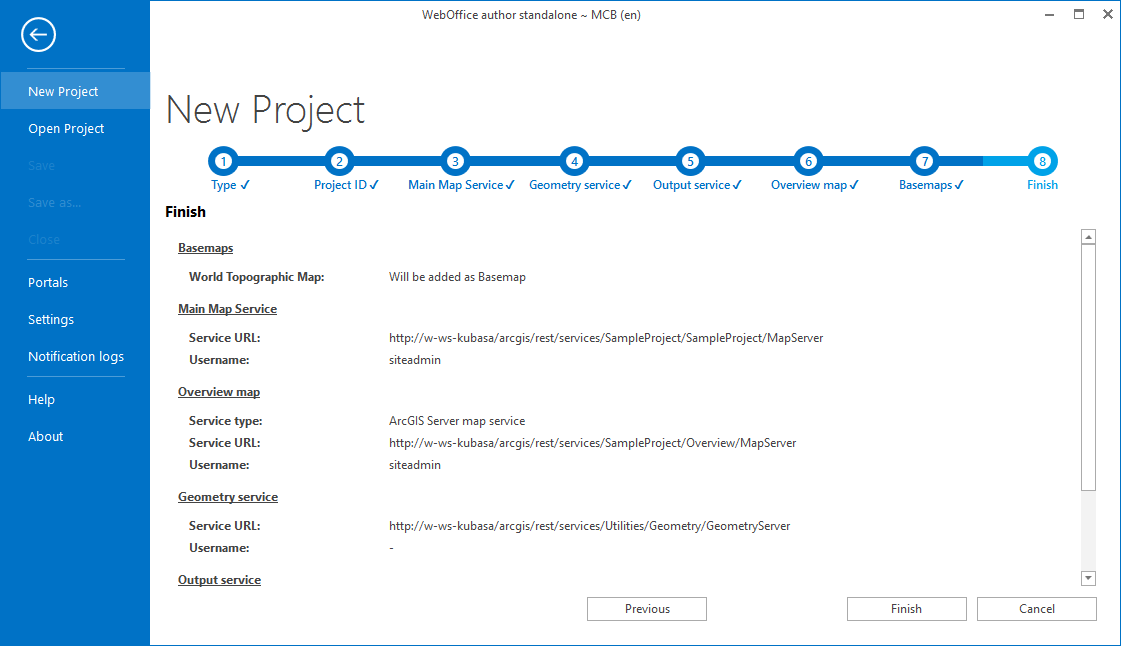

Step 8: Finish

WebOffice author standalone shows a summary of the project that will be created.

Click Finish in order to save the project configuration.



woas_file_projectwizard9

Wizard "New Project" - Finish









B) Convert web map to project

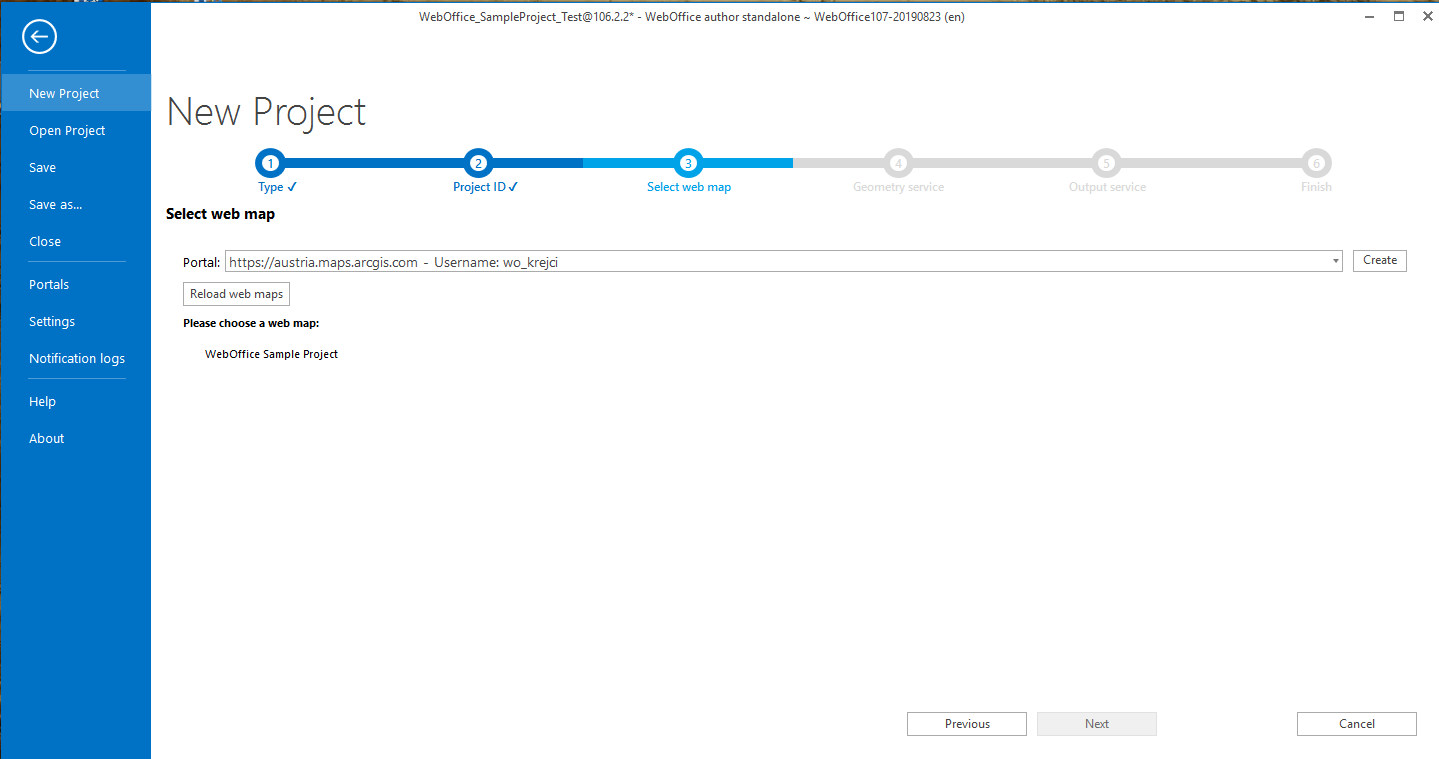

Step 3: Select web map

Select a portal connection (or create a new connection) and select the desired web map of this connection to be converted into a WebOffice project.



woas_file_projectwizard12

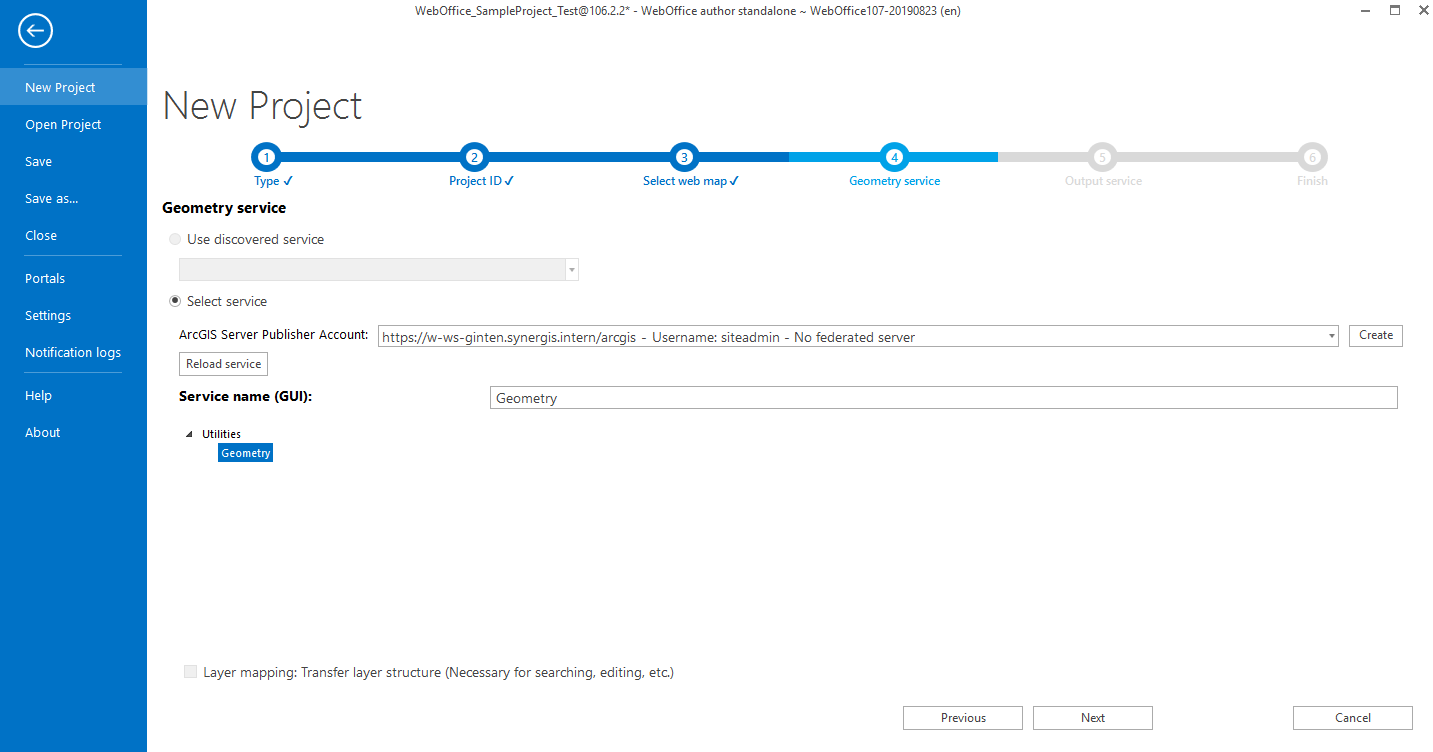

Step 4: Geometry service

This step adds a geometry service to the WebOffice 10.8 SP2 project configuration. The Geometry service is created by default in the Utilities directory when ArcGIS Server is installed. However, this service is initially stopped. You can either start this service directly on the ArcGIS Server or in the ArcCatalog. First select the server on which the Geometry service is located and insert the missing part of the REST URL of the Geometry map service. This is: "Utilities/Geometry/GeometryServer". The default value of the Geometry service is already entered.



Hinweis: Mehr Informationen zum Geometrie-Dienst in der ArcGIS Hilfe.





woas_file_projectwizard13





Step 5: Output service

The URL to the Output Service can also be found using your ArcGIS Server Manager. The default path of the Output Service is also already used in the project wizard.

Note: Don't forget to check, if your Output Service has been started. More information on Publishing the SynOutputService.





woas_file_projectwizard15





Schritt 6: Finish

WebOffice author standalone shows a summary of the project that will be created.

Click Finish in order to save the project configuration.

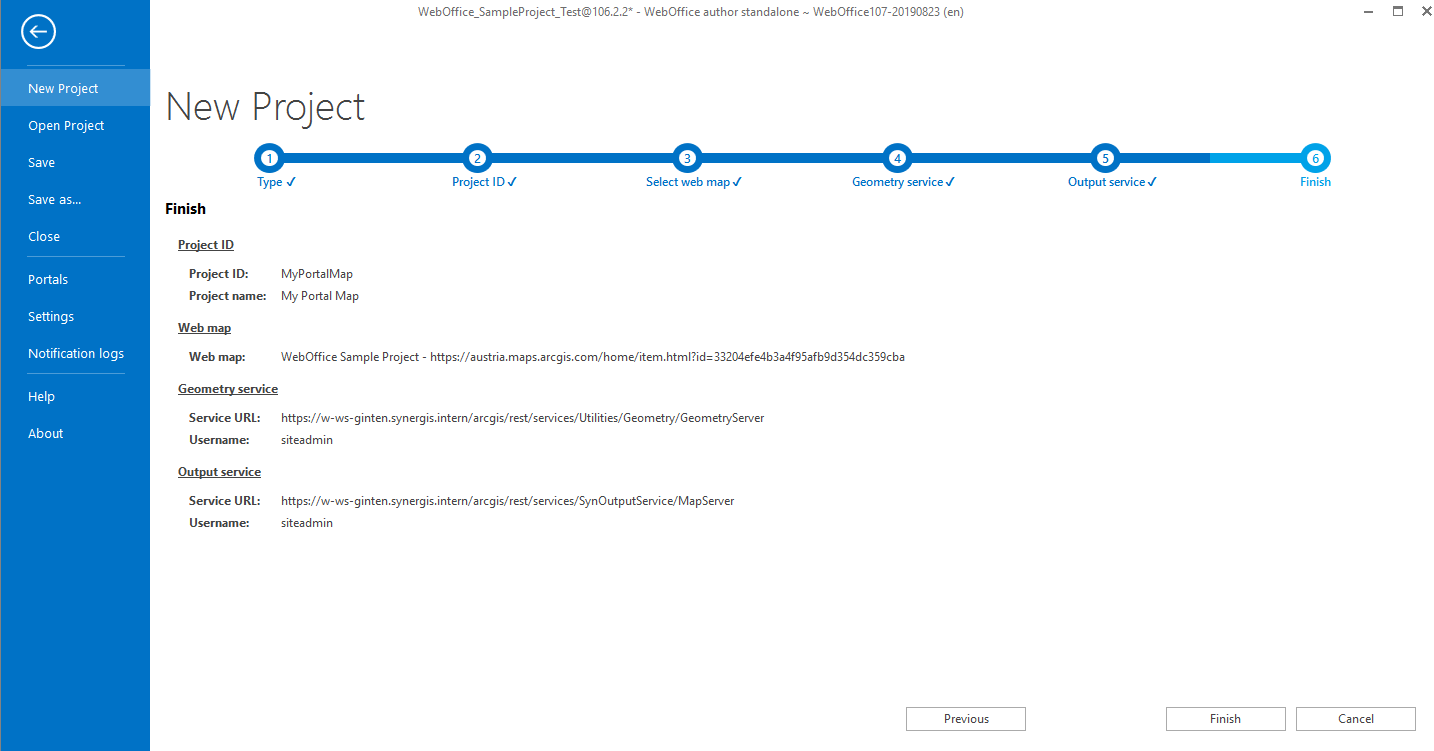

woas_file_projectwizard16
