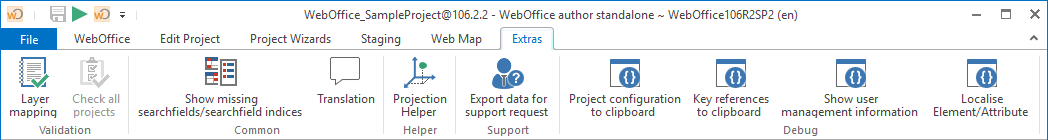

Extras Menu

Icon

Menu item

Description

Layer mapping

This feature is very useful if you need to change an ArcMap document and already have an existing WebOffice 10.8 SP2 project based on an older version of the ArcMap document. By using Layer mapping, you can ensure error-free and complete layer and table referencing for your WebOffice 10.8 SP2 project.

Check all projects

Provides the ability to check project configurations in your project directory.

Note: In order to use this function, you must not have opened a project.

Show missing searchfields/searchfield indices

This function lists the services of all included projects and indicates missing search fields or search field indices of the layers.

Translation

The translation tool translates the project-, application- or ESRI resource proxy configuration for you.

Projection Helper

The Projection und Geotransformation Helper 1.5.1 is the easiest way configure projections in your WebOffice 10.8 SP2-Project.

Export data for support request

This tool allows you to export all necessary files as a ZIP-file for the WebOffice 10.8 SP2-Support. By default the version number, operating system, log files, settings, saved application configuration (+schema), the configuration schema and the current project (if opened) will be exported.

It is also possible to export all projects in the WebOffice 10.8 SP2 project directory as well as the User Management.

Note: You can also export an ArcMap-Project (.mxd) or an ArcGIS Pro-Project (.aprx) as well as an ArcMap-Map Package (.mpk) or an ArcGIS Pro-Project package (.ppkx) or a Screenshot.

Project configuration to clipboard

This tool copies the contents of the project configuration (xml file) to the clipboard.

Note: This tool is only available in debug mode, which can be activated in the basic settings.

Key references to clipboard

This tool copies key references to the clipboard

Note: This tool is only available in debug mode, which can be activated in the basic settings.

Show user management information

This tool displays the contents of the user management database, which can be particularly useful for debugging the user management database.

Note: This tool is only available in debug mode, which can be activated in the basic settings.

Localise Element/Attribute

This tool makes it possible to localize all elements or attributes in WebOffice author standalone by one input.

Note: This tool is only available in debug mode, which can be activated in the basic settings.
