This configuration assistant helps you to add a service to your WebOffice 10.8 SP2 project configuration.

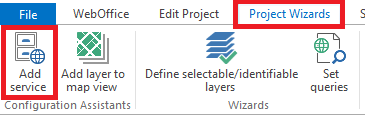

"Add service" - Configuration Assistant in the WebOffice author standalone Menu

"Add service" - Configuration Assistant in the WebOffice author standalone Menu



Step 1: Selection of a service type

Select a map service type which you want to add to your project configuration.

The following services can be selected:

Map collection service

WFS service

Database connection



After you have made your selection, click Next.

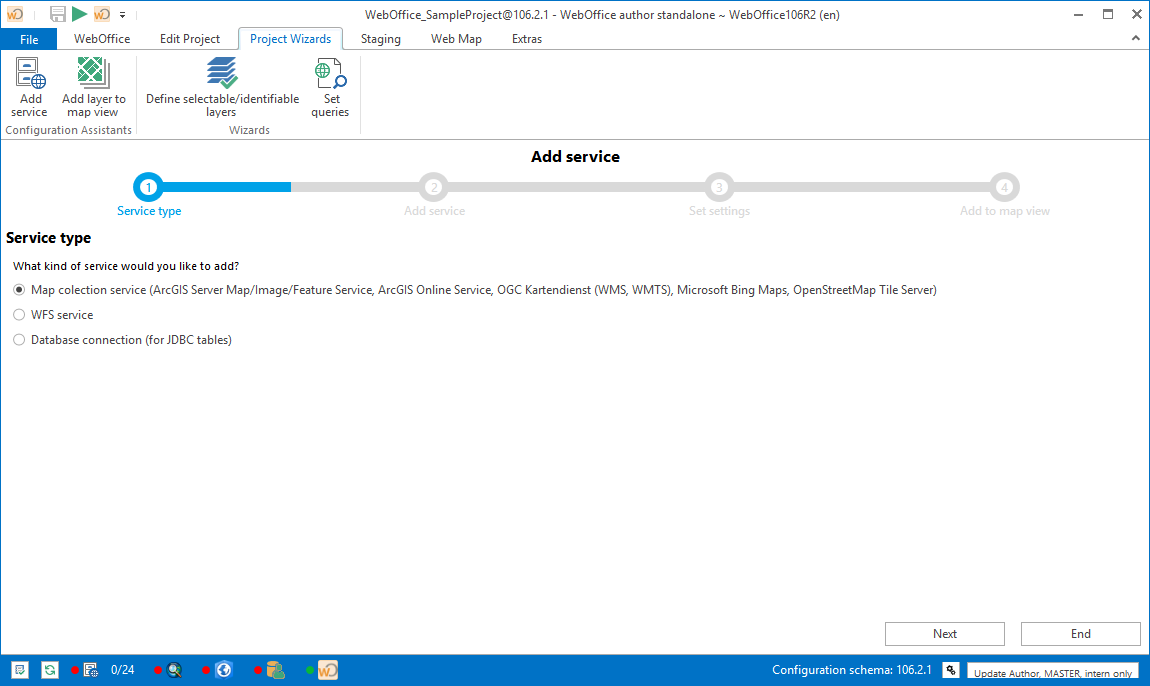

Selection of a service type

Selection of a service type



Step 2: Selection of map service type

The configuration assistant now automatically guides you to the context menu where you can select the desired map service type. If this is not the case, click with the right mouse button on the entry Map collection >> New.

Select the type of map service which you want to add to the project configuration.

Available map service types:

ArcGIS Online

ArcGIS Image Service

ArcGIS Online Service

ArcGIS Server Feature Service

ArcGIS Server Map Service

ArcGIS Server Vektor tile Service

BING map service

OGC Map Service (WMS)

OGC Map Service (WMTS)

OpenStreetMap Tile Server

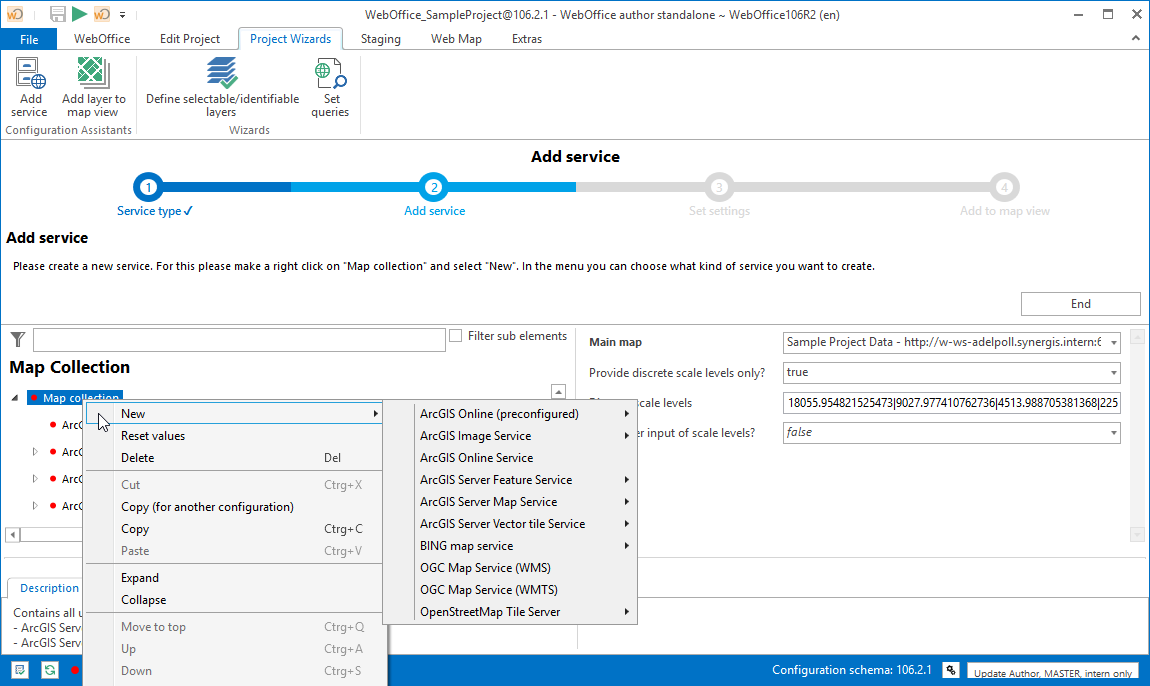

Selection of a map service type

Selection of a map service type



Step 3: Map service selection

The selection of the map service depends on the selection of the map service type (Step 2).

It is possible to integrate preconfigured Online Services as well as services published on your ArcGIS Server.

For ArcGIS Online Map Services, select an ArcGIS Server Account.

In this example an ArcGIS Server Map Service has been added.



Adding of an ArcGIS Server Map Service

Adding of an ArcGIS Server Map Service



Clicking on Add by wizard opens a form for the configuration assistant.

The ArcGIS Server Publisher Account must first be selected here.

With a click on Reload service all available (i.e. started) services are listed. Select the service from the list to be added to the project configuration (if the selected service already exists in the project, a notification will appear).

For a map service that is also to be used for searches/queries, it is important to define the layer structure. Only then can WebOffice author standalone offer layers for functions like search, edit, etc.. Activate the check box Layer mapping: Transfer layer structure (Necessary for searching, editing, etc.) to add layer and group layer references to the WebOffice 10.8 SP2 project configuration.

Note: For some map services (e.g. cached background map) layer information is not necessary. In this case the check box does not have to be activated.

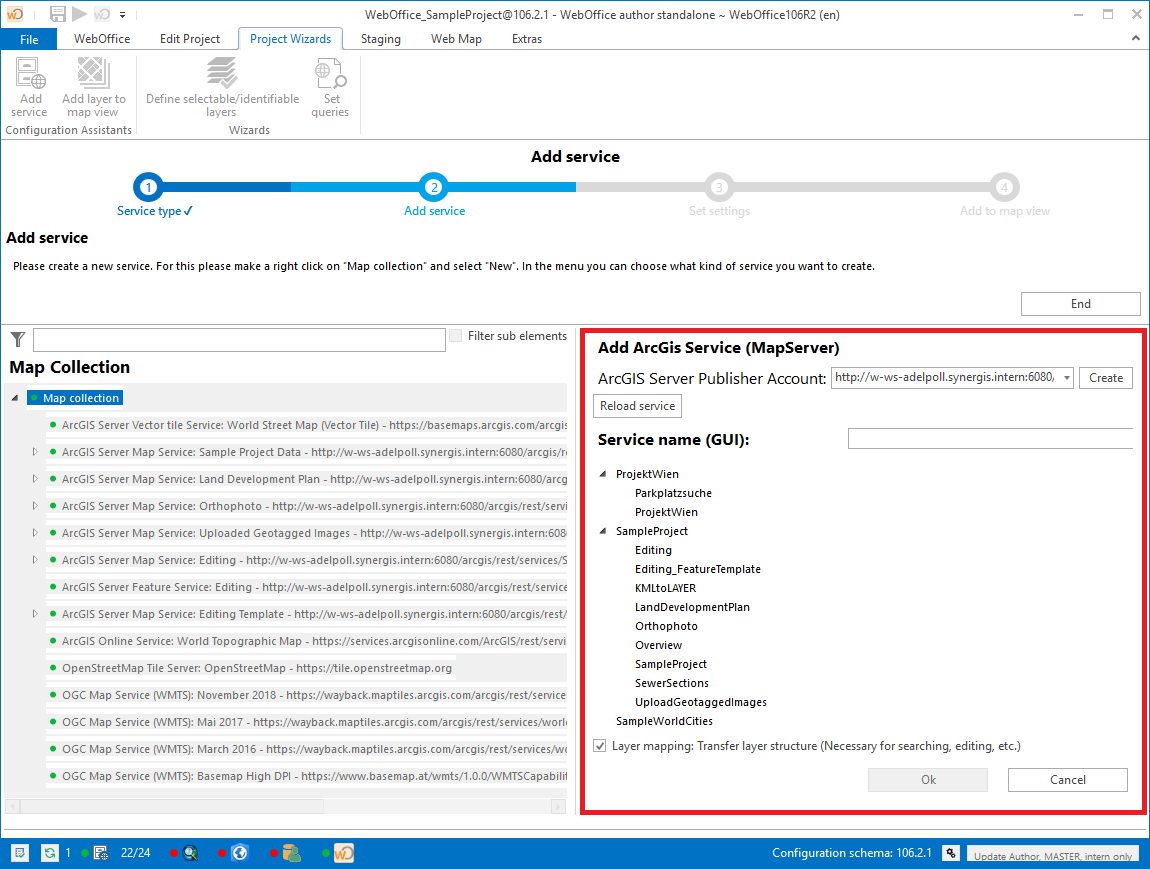

Adding ArcGIS Server Map Service

Adding ArcGIS Server Map Service



In addition to selecting or manually entering an ArcGIS Server account, you can also select from predefined ArcGIS Online Services. The user is offered a corresponding list of ArcGIS Online Services to choose from. A preview image of the selected data is displayed in the right area.

The user can choose from the following predefined ArcGIS Online services:

oWorld Topographic Map

oWorld Street Map

oWorld Imagery

oNational Geographic World Map

oWorld Shaded Relief

oWorld Terrain Basemap

oWorld Light Gray Basemap

oWorld Dark Gray Basemap

oWorld Ocean Basemap

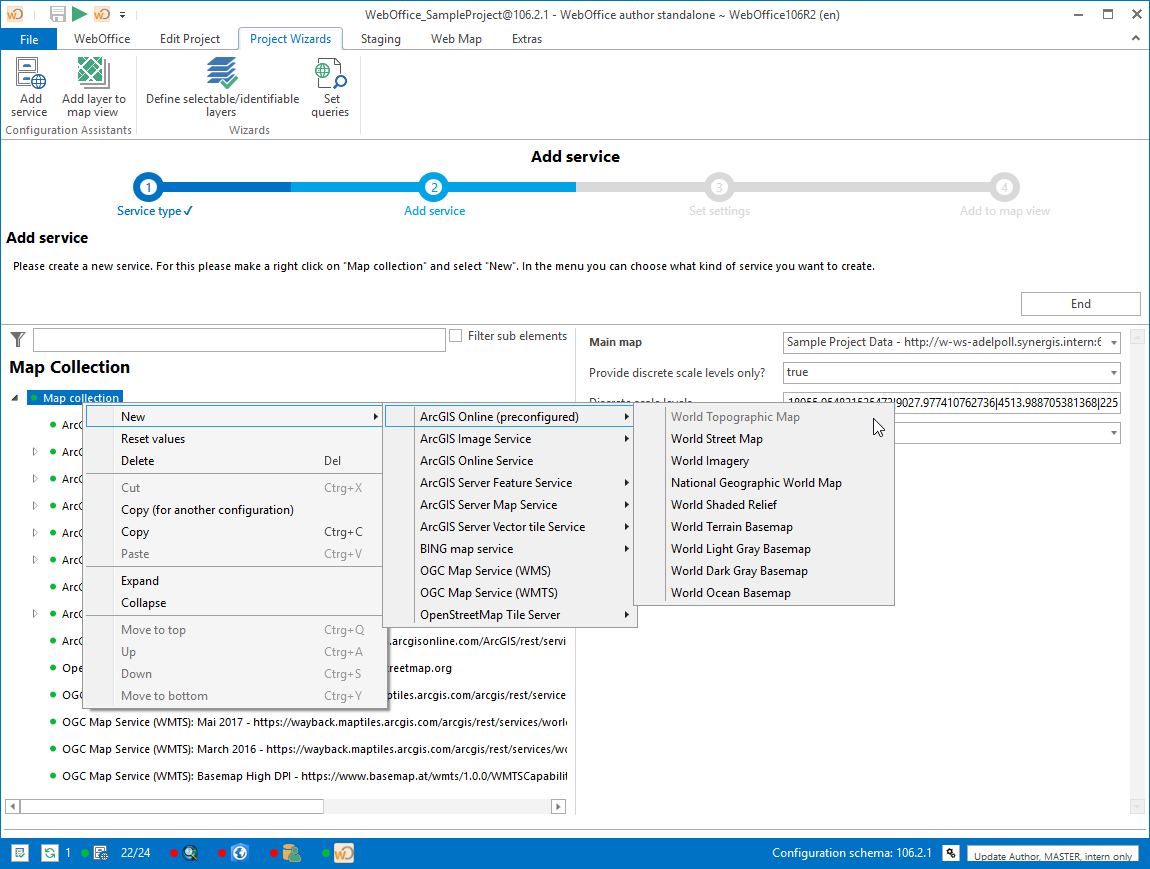

Preconfigured ArcGIS Online Services

Preconfigured ArcGIS Online Services



For OGC map services, you must enter the server URL and, if necessary, user and password. Optionally, you can already specify an alias for the map service to be displayed in the GUI.

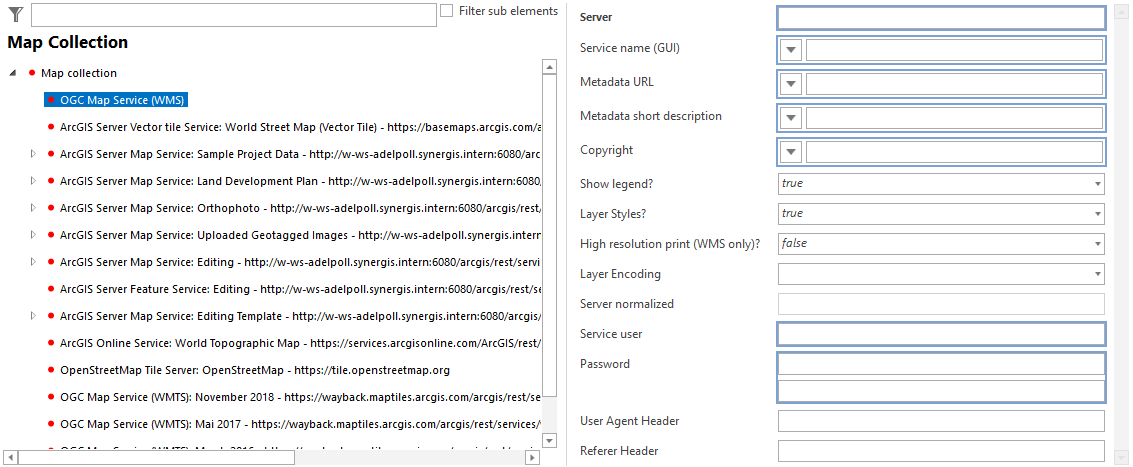

Selection of a OGC (WMS)/OGC (WMTS) Map Service

Selection of a OGC (WMS)/OGC (WMTS) Map Service



To select a Bing Map Service, you must specify a suitable Bing Token and specify the type of Bing Map. Three different types of Bing Maps are available:

oBing Maps Aerial

oBing Maps Roads

oBing Maps Hybrid

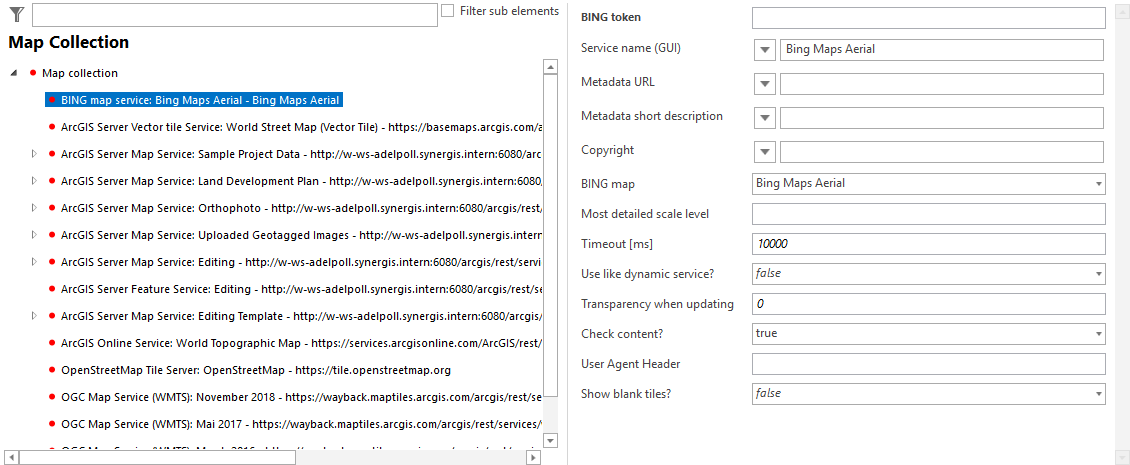

Selection of a Bing Map Service

Selection of a Bing Map Service



For an OpenStreetMap Tile Server, enter the appropriate URL and optionally select an alias to display in the GUI. There are also three options to choose from:

oOpenStreetMap

oOpenStreetMap - Cycle

oOpenStreetMap - Transport

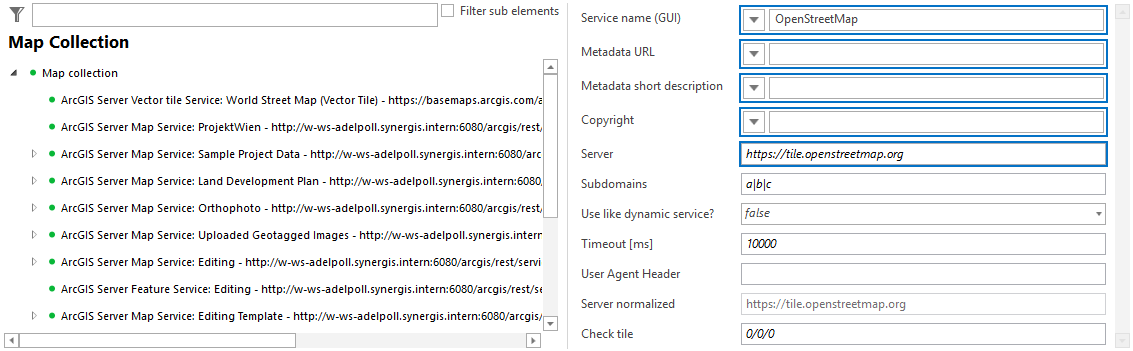

Selection of an OpenStreetMap Service

Selection of an OpenStreetMap Service



Step 4: Map view

The map service can now be referenced in an existing map view.

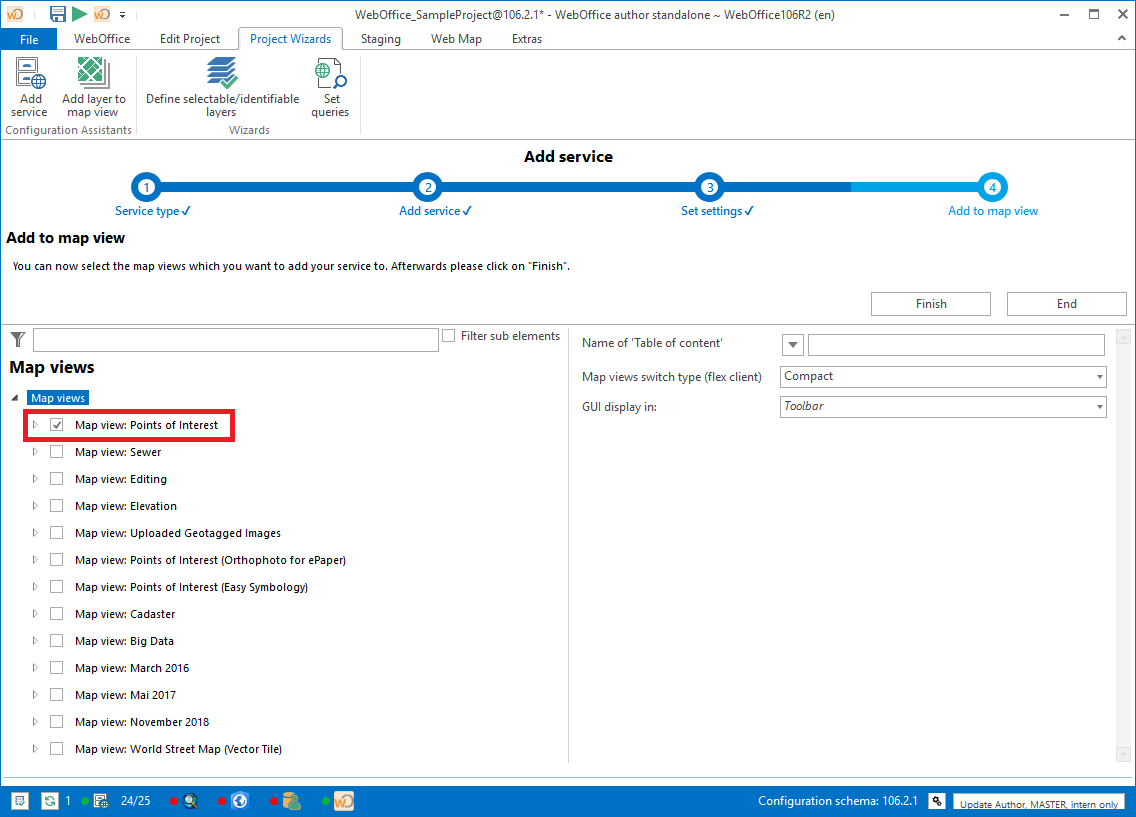

Add reference to map view

Add reference to map view



Now click Finish. The Map Service is now in the Map Collection.
