WebOffice 10.8 SP2 allows an automatic installation of certain components. Nevertheless a manual adaption after the installation is necessary. Before starting the automatic installation, please read the limiting factors carefully and contact your WebOffice support team to clarify whether this type of installation is appropriate for your system.



Note: The automatic installation is exclusively suitable for a single server scenario in which WebOffice 10.8 SP2 specific components (e. g. Apache Tomcat, WebOffice web application, WebOffice author, WebOffice extensions, etc.) of previous installations must not exist.

Note: Precondition for a correct installation using the automatic setup is a correct installation of ArcGIS Server and ArcGIS Desktop.

Note: An activated anti virus software might cause an incorrect execution of the automatic installation. Please pay attention to stop/deactivate any anti virus software during automatic installation.

Note: After a successful setup from the WebOffice Installer the WebOffice extensions have to be installed manually. Be aware that for different systems different WebOffice extensions setups exist. Therefore consider the steps from chapter Install WebOffice Extensions



The automatic installation is only supported for the following 64bit-systems:



Operating System

Minimum OS versions

Maximum OS versions

Windows Server 2019 Standard and Datacenter (64 Bit)

Update: April 2019



Windows Server 2016 Standard and Datacenter





Windows Server 2012 Standard and Datacenter





Windows Server 2012 Standard and Datacenter





Windows Server 2008 R2 Standard, Enterprise and Datacenter

SP1



Windows 10 Pro and Enterprise





Windows 7 Ultimate, Enterprise, Professional, Home Premium

SP1



Windows 8 Pro and Enterprise





Windows 8.1 Pro and Enterprise





Supported operating systems for automatic installation



The automatic setup comprises the installation of the following components:

Apache Tomcat 9.0.46

WebOffice 10.8 SP2 web application (Release)

WebOffice author for ArcGIS

WebOffice-specific folders (see below)



The automatic installation includes some specific installation paths. If you need to abort the installation, please press Close. The respective components will installed at the following paths:

Apache Tomcat 9.0.46: C:\Tomcat (Port 8080)

WebOffice 10.8 SP2 web application: C:\Tomcat\webapps\WebOffice

WebOffice author standalone: C:\Program Files (x86)\VertiGIS\WebOffice author standalone

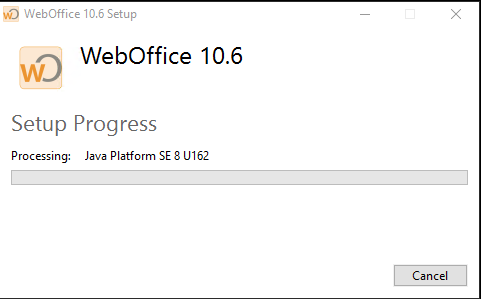

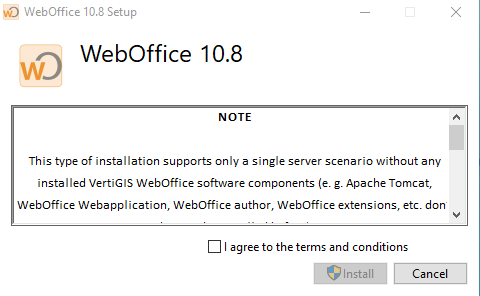

Start the automatic installation with WebOffice_EN.exe at WebOffice10.8-DVD/Software/WebOffice Installer/. The automatic setup does not support any user interactions after choosing Install and uses the above mentioned default paths.



wo_Automatic_Installation1



wo_Automatic_Installation2



wo_Automatic_Installation3



The installation of Apache Tomcat is executed (with Version 10.8 SP2) no longer in silent mode (in the background). This means that the installation steps for Apache Tomcat are described in chapter Apache Tomcat installation.

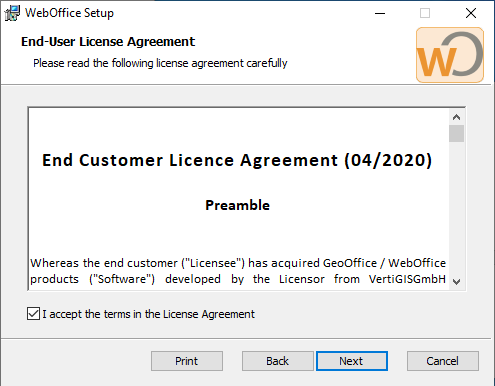

wo_Automatic_Installation4a

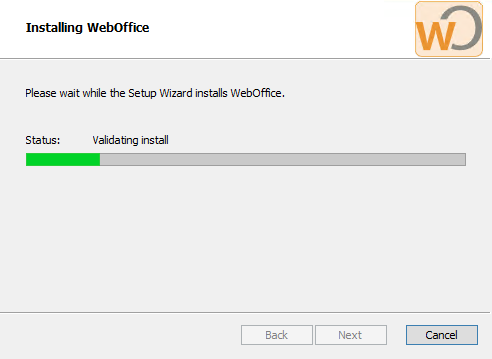

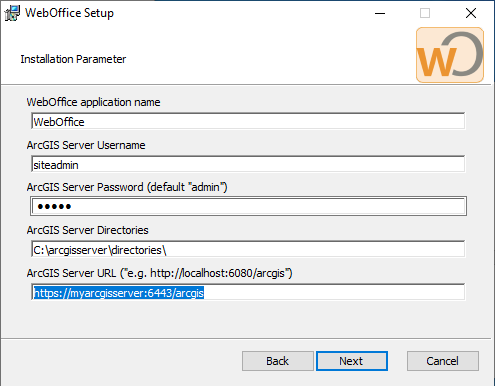

The following installation parameters can be specified. In case nothing else is defined, the automatic setup will use the settings below.



wo_Automatic_Installation4b



wo_Automatic_Installation4c



wo_Automatic_Installation4d

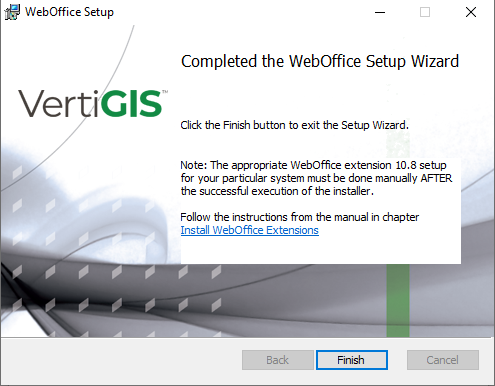

wo_Automatic_Installation4e

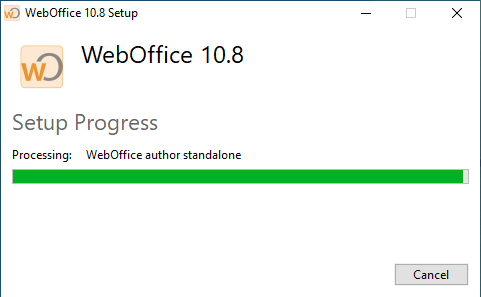

wo_Automatic_Installation5

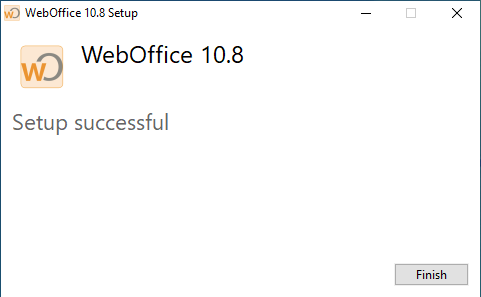

During the installation you will be informed about the installation states and the component currently installing. After a successful installation you will see the following notification.



wo_Automatic_Installation6

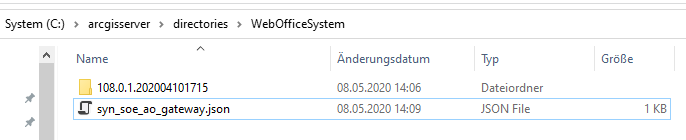

Note: Server Object Extension files will be saved in the directory <ArcGIS Server location>\directories\WebOfficeSystem. In case another path for the ArcGIS config-store was defined, please copy the files to the according directory.

The files necessary for automatic Server Object Extension registration will be saved in the temp directory.



wo_automatic_soe

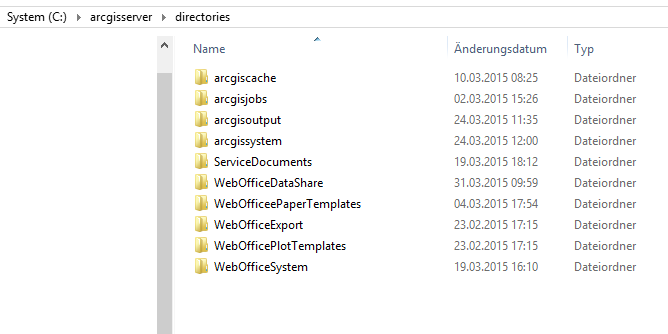

Note: Further WebOffice-specific folders and files will be stored in the default structure <ArcGIS Server location>\directories. In case another path for the ArcGIS config-store was defined, please copy the files to the according directory.



These WebOffice-specific folders contain:

WebOfficeDataShare

WebOfficeePaperTemplates

WebOfficePlotTemplates

WebOfficeExport

ServiceDocuments

WebOfficeUpload



wo_automatic_installation10



Inside these folders the following content will be stored:

SynOutputService.mxd with FGDBs

SynPlotService.mxd

WebOffice_plot_author.mxd

plot layouts

etc.



Note: Further folders and files for Apache Connector will be stored in the default directories inside Apache TomcatC:\Tomcat.



Following files will be stored:

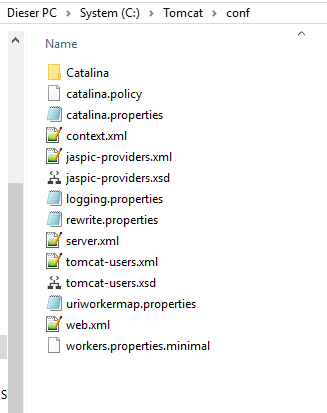

C:\Tomcat\conf:

context.xml

rewrite.properties

server.xml

uriworkermap.properties

workers.properties.minimal



wo_automatic_installation11

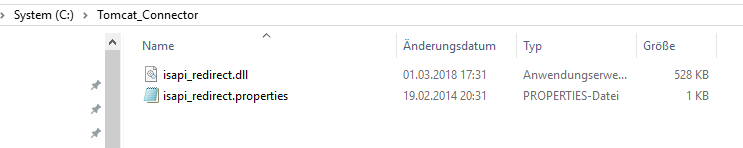

C:\Tomcat_Connector:



isapi_redirect.dll

isap_redirect.properties



wo_automatic_installation12

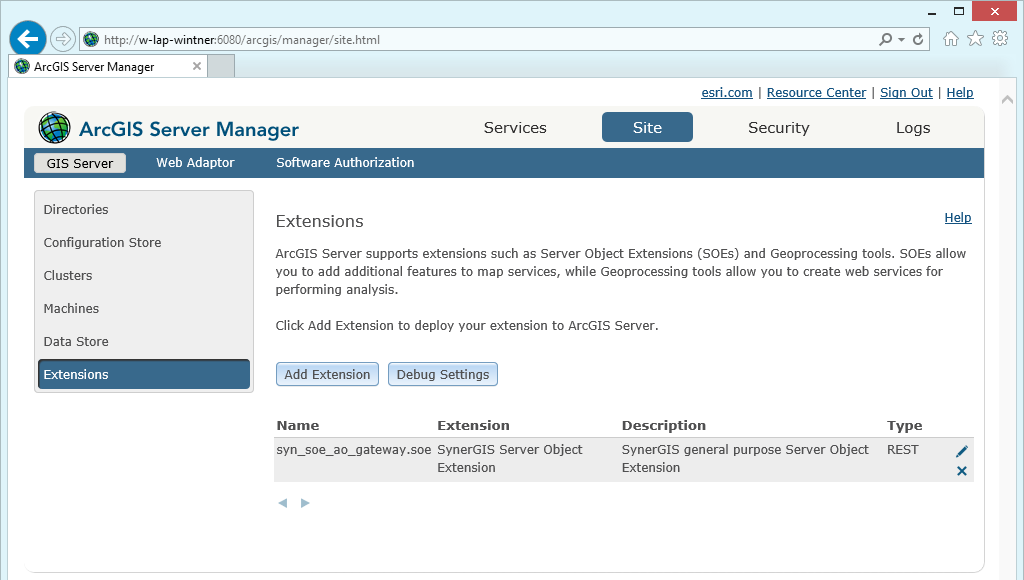

A successful SOE registration can be checked in the ArcGIS Server Manager after finishing the installation. If any problems occur, the Server Object Extension registration can be done manually as described in chapter Install ArcGIS Server Object Extension for WebOffice.



wo_automatic_soe_reg_ok







In the Control Panel (Programs) you will find the installed components, version numbers included. The entire installation is named as WebOffice.



wo_Automatic_Installation7



Check the installation of the WebOffice application and the full-text search application in the directories mentioned above.

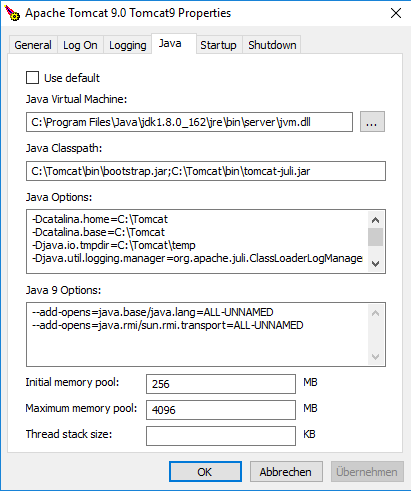

Note: Using the automatic installation also includes the automatic post-configuration of Apache Tomcat using parameters like Initial/Maximum Memory Pool Settings and is pointing to the correct JDK.



req_tomcat_configuration1



Check if Apache Tomcat is started. Afterwards you are able to open SynAdmin of the installed WebOffice application using: http://localhost:8080/WebOffice/synadmin. In the next step install your WebOffice 10.8 SP2 license according to Install the License.



Since the automatic setup does not install all components automatically, proceed with your installation manually according to the following chapters:

Install WebOffice Extensions

Publish the SynOutputService

Activate SOE on a Map Service

WebOffice FTS-Index installation



Note: After the automatic installation has been finished, future patches and service packs must be installed excactly according to the direction of VertiGIS.





Uninstall

In case you want to uninstall the installation package, open the setup via Control Panel (Programs) and choose Uninstall in the appearing dialog. This option uninstalls the WebOffice application, the full-text search application, the WebOffice author and WebOffice extensions. Apache Tomcat and Java JDK will remain installed on the system. They can be uninstalled separately using the common uninstalling process.



Note: After uninstall, please restart the system.

Note: In case unused files remain after uninstall, e.g. in  C:\Tomcat\webapps\<WebOffice application>, please delete them manually.
