Extensions Standalone Testclient

Previous pageReturn to chapter overviewNext page

You can check the connection to the WebOffice extensions with the Standalone Testclient.

Note: The Standalone Testclient can be found on the DVD: WebOffice10.8-DVD\Software\WebOffice extensions\StandaloneTestclient\WebOfficeExtensionsTestclient.exe



The Standalone Testclient provides testing Plot, ePaper and Export. By using these tests you can simply find out, if the issue occurs in WebOffice 10.8 SP2 or in the WebOffice extensions themselves.

If an output can successfully be proceed via the Standalone Testclient, then a connection to the WebOffice extensions is guaranteed and the reason of the print issuee should be found in WebOffice 10.8 SP2.

If an output cannot successfully be proceed via the Standalone Testclient, then the reason of the print issue should be found in the WebOffice extensions themselves.



Note: Please find more details about the installation of the WebOffice extensions in chapter WebOffice Extensions (GIS Server/Administrative Computer).



At the beginning please check if a valid WebOffice extensions version is installed on your system by using the correct IP Address, Port and the button Version.

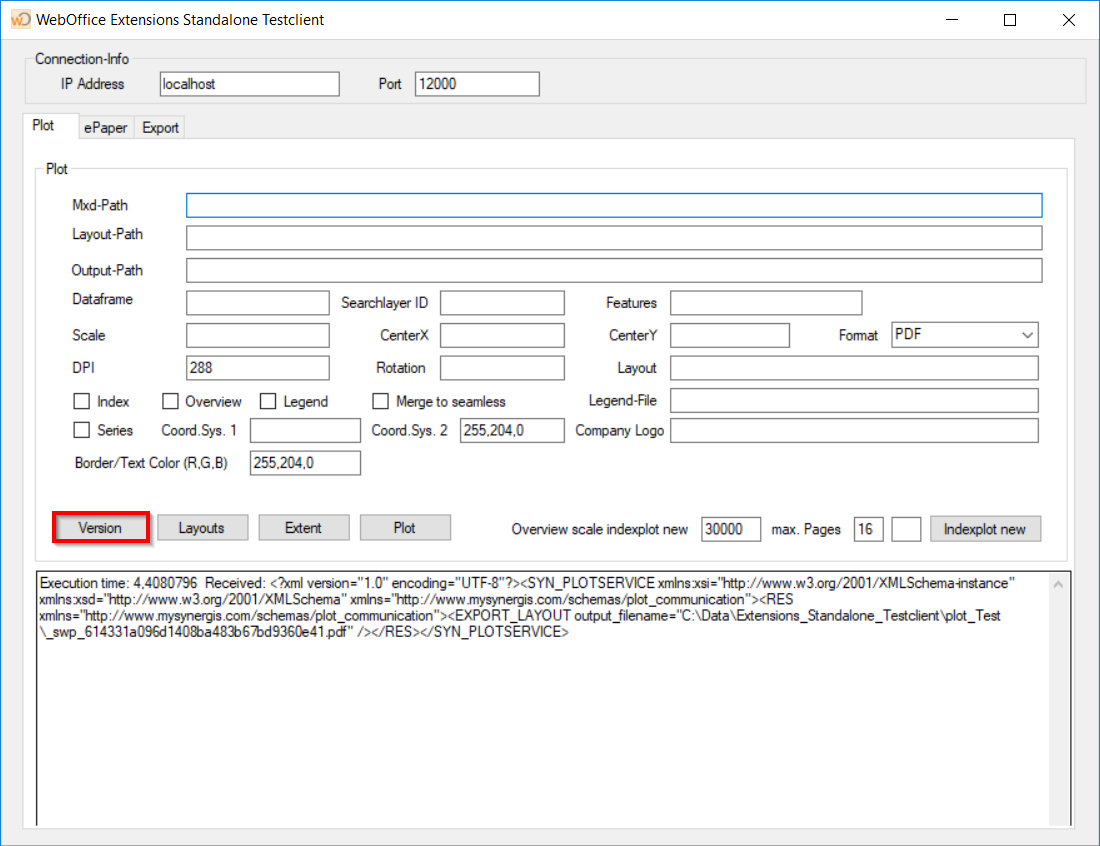

Check, if a correct version of the WebOffice extensions is available

Check, if a correct version of the WebOffice extensions is available



If the textbox reads a correct version, then the WebOffice extensions work in general. If there is an error in the textbox, the connection to the WebOffice extensions cannot be succeeded. In such a case please check the installation for the WebOffice extensions.

Note: Please find more details about the installation of the WebOffice extensions in chapter WebOffice Extensions (GIS Server/Administrative Computer).





Plot:

If the version is correct, please check in a next step a possible plot. Therefore please use the parameters as described in the table.



Number

Parameter

Description

1

Mxd-Path

Path where the MXD to be used is located

Note: We recommend testing here with the MXD created during printing with WebOffice 10.8 SP2 (by default under <ArcGIS Server location>\directories\arcgisoutput\SynOutputService_MapServer)

2

Layout-Path

Path in which the WebOffice print templates are located

3

Output-Path

Storage location in which the print output is to be stored

4

Dataframe

Dataframe in the MXD

5

Searchlayer ID

The ID of the layer on which the feature that is to be displayed as selected in print is located.

Note: To create a print, this parameter can be left blank.

Note: Groups are also counted for the IDs, starting at 0

Note: The search layer IDs of published services are displayed on the ArcGIS Server REST interface.

6

Features

ObjectID of the features to be selected

Note: To create a print, this parameter can be left blank.

7

Scale

Scale in which the printing is to take place

Note: This scale is used as an overview scale for a Print Series. The scale of the individual pages is hardcoded.

Note: When printing an index, the overview scale is read from "Overview scale indexplot new" (number 28). The scale of the individual pages is read out from the "Scale" (number 7).

8

CenterX

Center of the printout (X coordinate)

9

CenterY

Center of the printout (Y coordinate)

10

Format

Print output format (PDF, JPG, PNG, etc.)

11

DPI

Print output quality in DPI

12

Rotation

Rotation of the printout

13

Layout

Template from the WebOfficePlotTemplates directory

Note: The complete name of the layout file must be entered here, without the extension ".Layout". (e.g. A4_landscape)

14

Index

If this option is activated, an index plot is generated. The index plot is called up via the button Indexplot new. If the printout is called using a plot with an activated index plot option, the index plot is created according to the old mechanism.

15

Overview

Creates an overview page for the index plot or plot series. The "Scale" (number 7) or "Overview scale indexplot new" (number 28) fields are used as the overview scale.

16

Legend

If this option is activated, a legend page is created in the series/index series.

Note: A Legend-File must be defined for this.

17

Merge to seamless

is used for multipage prints.

Note: This setting is valid in combination with index plots.

18

Legend-File

Name of the legend file

Note: Enter the complete name of the layout file, without the extension ".Layout". (e.g. A4_landscape_legend)

19

Series

Creates a plot series

20 und 21

Coord.Sys. 1/2

This can be used to test whether a series plot with different spatial reference information (in this case coordinate system) can be created. The setting only applies to  print series. To test the feature in the TestClient, two different coordinate systems must be defined. The individual pages of the printout are printed alternately with the specified coordinate systems.

22

Company Logo

When printing in WebOffice, an image with the value "company_logo" can be processed.

Note: http and https URLs are supported. In the test client, the designation "company_logo" is hard-coded, i.e. in the plot template the corresponding element must also be designated as such.

23

Border/Text Color (R,G,B)

The colors of the font and graphics on the overview page of a print series can be defined as RGB values.

24

Version

reads the version

25

Layouts

reads the layouts from the layout path directory including all elements on the layout.

26

Extent

reads the extent from the specified map

27

Plot

creates the plot.

Note: this button is used for single plots and plot series of type series.

28

Overview scale indexplot new

This scale is used for the overview page of an index series.

29

max. Pages

Specifies the maximum number of pages created in a series.

30

Indexplot new

creates an index series plot of type Index. This is the new mechanism.

Note: To test the index plot, use this button (just clicking on "Plot" is not enough!)

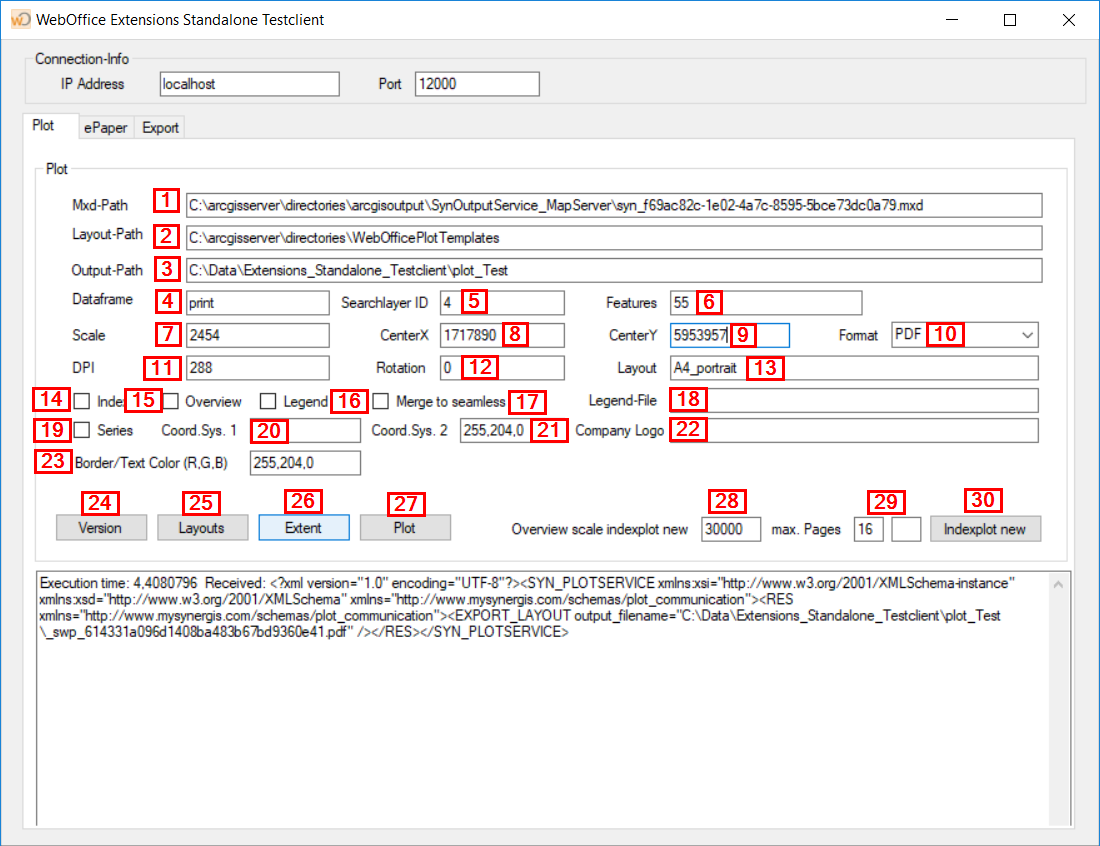

Parameters to generate a test print from the Standalone Testclient



After having filled all necessary fields the output can be created by using the button Plot (number 27).



Creating a test print from the Standalone Testclient

Creating a test print from the Standalone Testclient





If there isn't any ERROR message in the textbox, you can find the output in the output path you have chosen.



If the tests have been succeeded in the Standalone Testclient, continue with the analysis in WebOffice 10.8 SP2.

Note: You will find further steps to analyse in the chapter Problem Analysis.





ePaper:

In the next step the ePaper generation can be tested. Fill in the parameters as described in the following table to create an ePaper





Number

Parameter

Description

1

Mxd-Path

Path where the MXD to be used is located

Note: We recommend testing here with the MXD created during printing with WebOffice 10.8 SP2 (by default under <ArcGIS Server location>\directories\arcgisoutput\SynOutputService_MapServer)

2

Template-Path

Path to the directory where the mrts (ePaper templates) are stored

3

Output-Path

Path in which the generated ePapers are stored

4

Dataframe

Name of the data frame of the project listed in the Mxd path to which the mrt refers

5

Scale

Scale used for the current map

6

DPI

Resolution of the entire ePaper (independent of the resolution of the maps)

7

Searchlayer ID

The ID of the layer on which the ePaper template is configured.

Note: Groups are also counted for the IDs, starting at 0

Note: The search layer IDs of published services are displayed on the ArcGIS Server REST interface.

8

Features

Object ID of features of the search layer for which the ePaper is to be generated

9

CenterX

Center Point X coordinate of the given project. The center point is used for the current map.

10

CenterY

Center Point Y coordinate of the given project. The center point is used for the current map.

11

Format

possible output formats (PDF, XLSX, ODT, RTF, DOCX, HTML)

12

Template

mrt that is used for the generation. The complete name is specified without file extension (Layername.ePaperTemplate)

13

Selections and Definition Queries

With WebOffice 10.8 SP2, definition queries on additional layers can be taken into account. This option takes the definition queries into account.

14

Feature ID

ID of the features to which the definition query applies. This corresponds to the ObjectID

15

Layer ID

ID of the layer on which the definition query is set.

16

Def. Query

Definition query for the specified layer. You can copy the definition query using the Query Builder. For example, OBJECTID=1

17

Layer visible

Controls whether the layer on which the definition query is set is switched on or not.

18

Version

Reads the version (build number).

Note: This can be performed as a first test. If the version cannot be read out, the test client does not work correctly.

19

Templates

Lists the available mrts in the Template-Path.

Note: If a new mrt is added, the service must be restarted for the mrt to be detected.

20

Extents

Outputs the extent of the maps included in the ePaper.

Note: Current Map extent corresponds to CenterX, CenterY from the test client. Feature Map Extent is the center point of the given feature.

21

ePaper

Starts the generation of the ePaper. The ePaper is stored in the Output-Path.

Note: If an appropriate reader is installed on the computer, the ePaper is opened automatically.

22

Rotation

Defines the rotation of the map image in the ePaper in degrees starting at 0° in the north, 90° in the east, etc.

23

Company Logo

in WebOffice ePaper an image with the value "company_logo" can be evaluated.

Note: http and https URLs are supported. In the test client, the designation "company_logo" is hard-coded, i.e. in the ePaper template the image user field must also be designated as such.

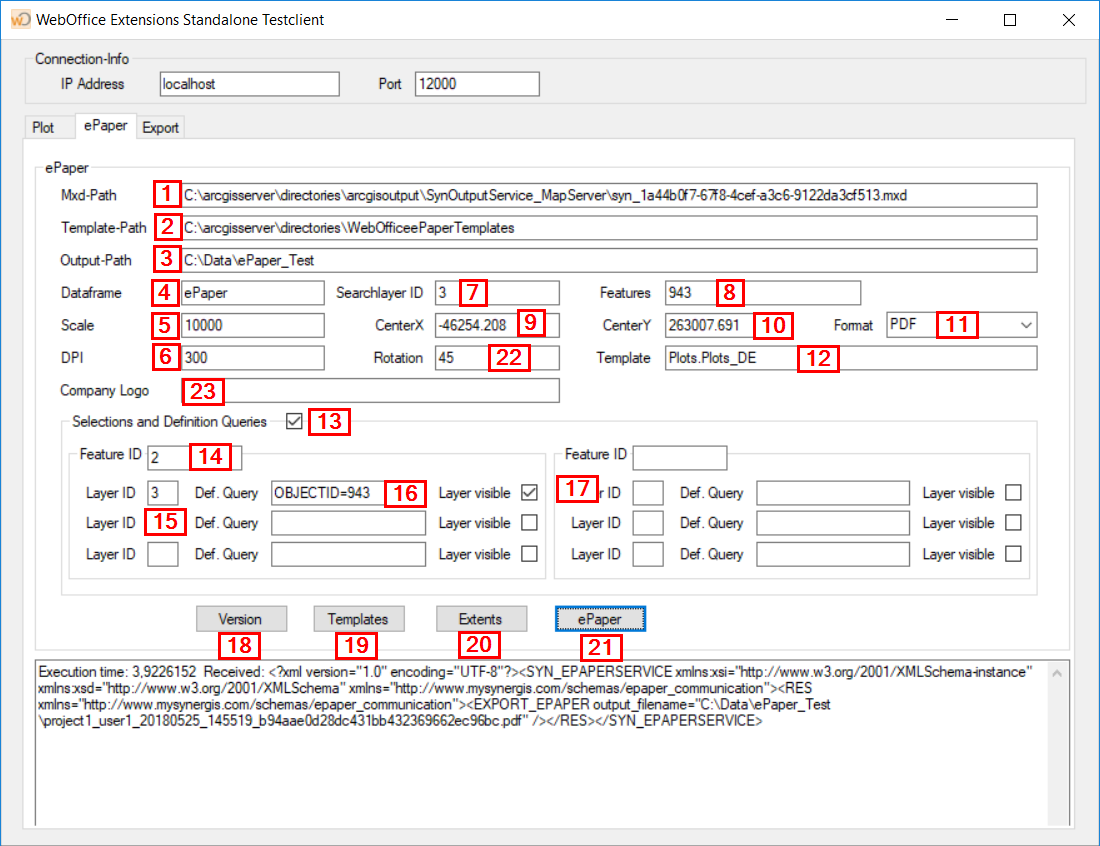

Paramter for creating an ePaper



trouble_extension_standalone_testclient03

Creating an ePaper from the Standalone Testclient



Export:

Also, the Extract Server function can be tested. Fill in the following parameters in the standalone test client to export data.



Number

Parameter

Description

1

Working-Path

Output directory of the exported files

Note: If a Download-Path is also defined, the export file is output to the download directory. Identical to WebOffice Export(physical)

2

Archiv-Path(opt)

If the Archiv-Path is defined, the export file is also stored in the Archiv-Path in addition to the Working-Path.

3

Download-Path (opt)

The export file is stored here instead of in the Working-Path.

Note: This is identical to the Data-Fetch Path in WebOffice. It is used for distributed scenarios.

4

Configurations-Path

Directory containing the export configuration including connection files

5

Mxd-Path (visible)

Path to mxd which is taken into account for layer switching.

Note: this specification only applies if the option No. 32 (export only visible layers) is activated.

Note: It is necessary that the attribute "LayerName" is defined for each task in the configuration.

6

User

the user authorized for the project in User Management. The export cannot be used without User Management.

7

Group

the group defined in User Management in which the authorized user is located.

8

Project

Name of the project as defined in User Management.

9

Exportprofile

Name of the export configuration (xml)

10

Format

Output formats for the Extract Server.

11

XMin





Expansion rectangle if the ShowMode CUT is set in the configuration.

Note: The ShowMode CUT makes it possible to cut data from a defined area.

12

XMax

13

YMin

14

YMax

15

EPSG in

EPSG code of the input coordinate system (e.g. 31255 = Austria Central GK East)

16

EPSG out

EPSG code of the output coordinate system (e.g. 3857 = Web Mercator Auxillary)

17

Layer 1



The passing of definition queries is supported so that selected features can be passed or the export to selected features can be carried out.

18

Query 1

19

Layer 2

20

Query 2

21

DB-Type

Database type of the User Management database

22

Host/Filename

Name of the server on which the User Management database is running or path on which the user management database is located

23

Database

Name of the User Management database

24

User

User Management User

25

Password

User Management Passwort

26

SSO

Single Sign On.

Note: If this checkbox is activated, access is not via the User Management user (no. 6) but via Windows authentication.

27

Debug for visible Layer

The visible layers are written to a separate xml file.

28

max. Area

maximum allowed area.

Note: If the exporting area is larger than the max. area, the export is canceled.

29

Version

Reads the version (build number).

Note: This can be performed as a first test. If the version cannot be read out, the test client does not work correctly.

30

Profile

Reads the available output formats

31

Export

Executes the data export

32

export only visible layers

takes into account the layer switching of the specified mxd under the Mxd path (no. 5). Layers that are switched on are exported.

Note: It is necessary to define the attribute "LayerName" for each task in the configuration.

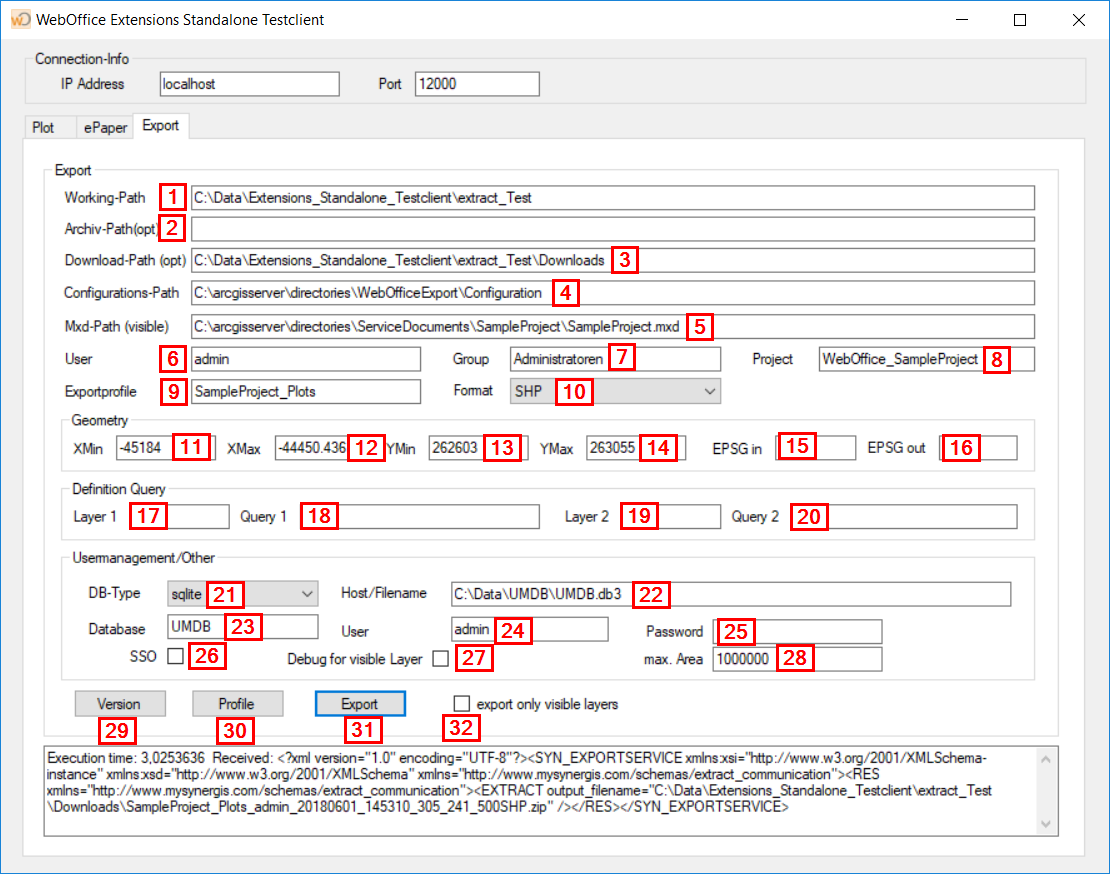

Parameters for creating a data export



Creating a Data Extraction from the Standalone Testclient

Creating a Data Extraction from the Standalone Testclient
