No connection to WebOffice

Previous pageReturn to chapter overviewNext page

In case you cannot run your WebOffice 10.8 SP2 project (application does not start) but instead you get a message in the browser saying, e.g. "This page can't be displayed" the problem might occur because of the Windows firewall settings or because of the proxy server settings of your browser.

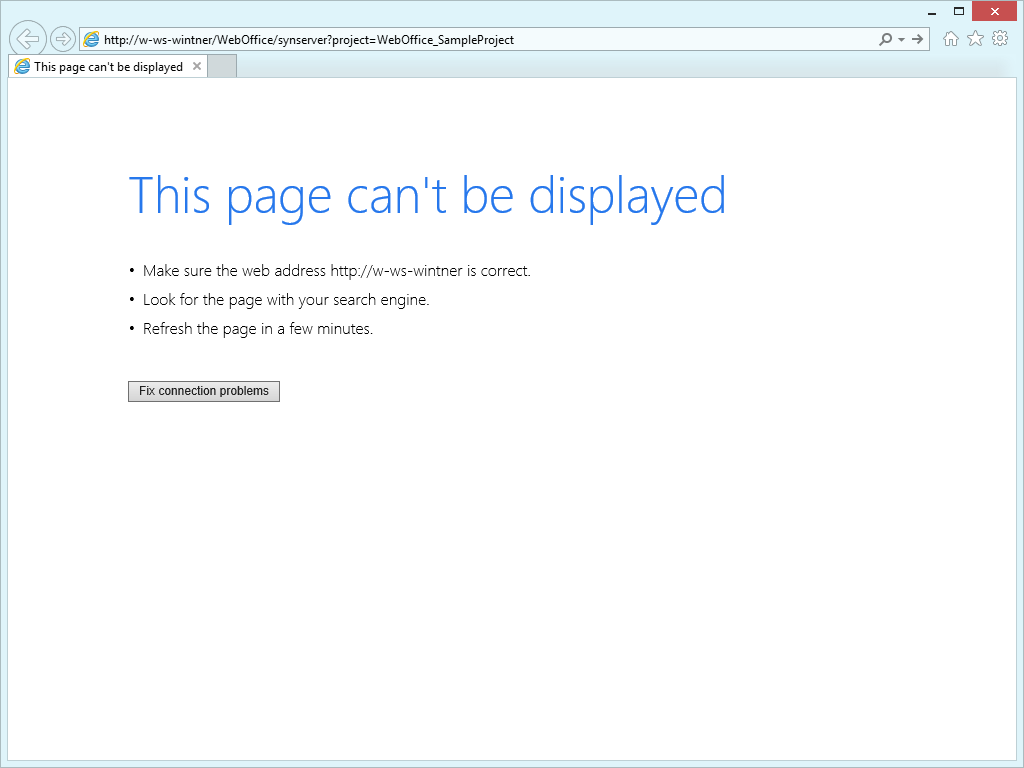

The browser cannot access WebOffice 10.8 SP2

The browser cannot access WebOffice 10.8 SP2



Windows Firewall Settings

First check the firewall settings of your WebOffice 10.8 SP2 server. Because the firewall on the most OS is active by default, you have to open the port 8080  in order to be able to access WebOffice 10.8 SP2 via Tomcat which by default uses port 8080. Therefore open the Windows Firewall with Advanced Security settings and define inbound rules for the port 8080.



Note: In case you have installed the Apache Tomcat Connector (optional) it is not necessary to open the port 8080. Instead, check that port 80 is opened.

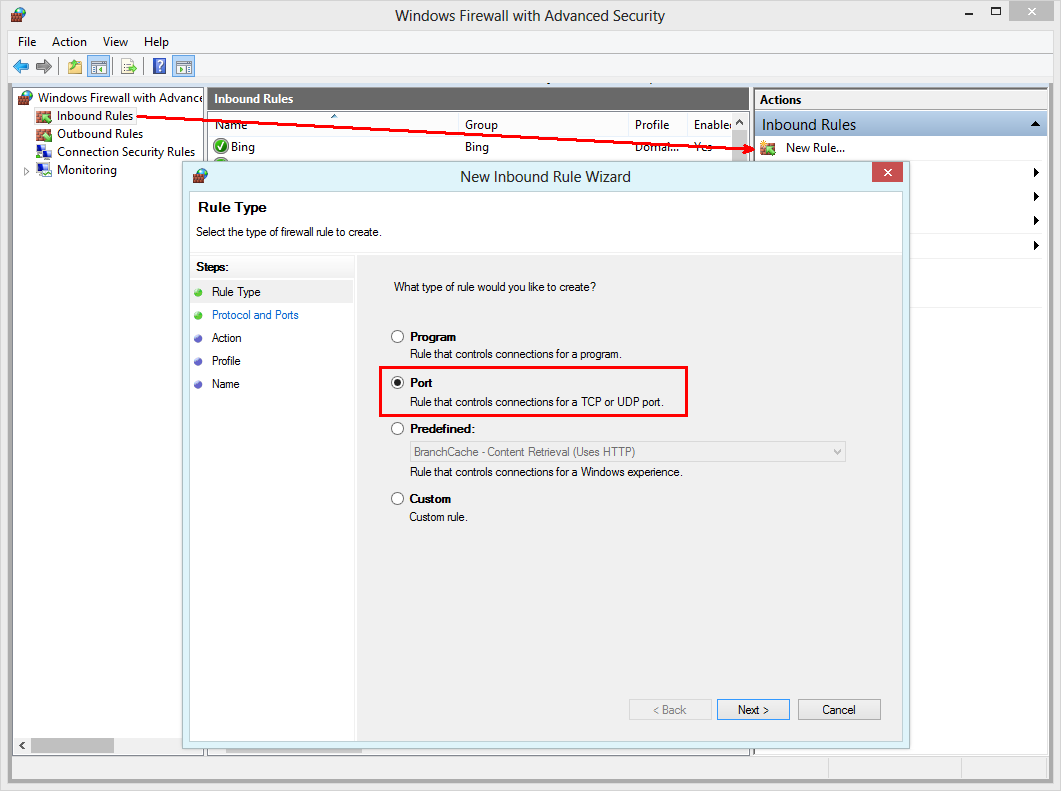

Windows Firewall with Advanced Security - Create a new inbound rule

Windows Firewall with Advanced Security - Create a new inbound rule

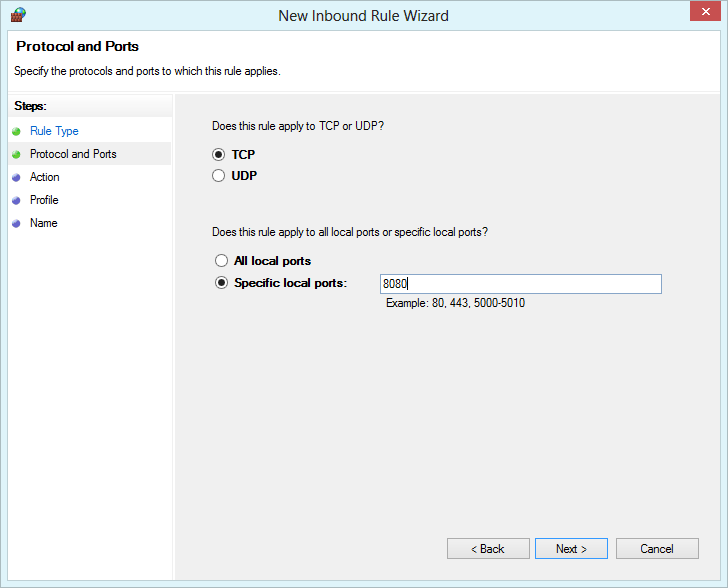

Windows Firewall with Advanced Security - specify port 8080

Windows Firewall with Advanced Security - specify port 8080

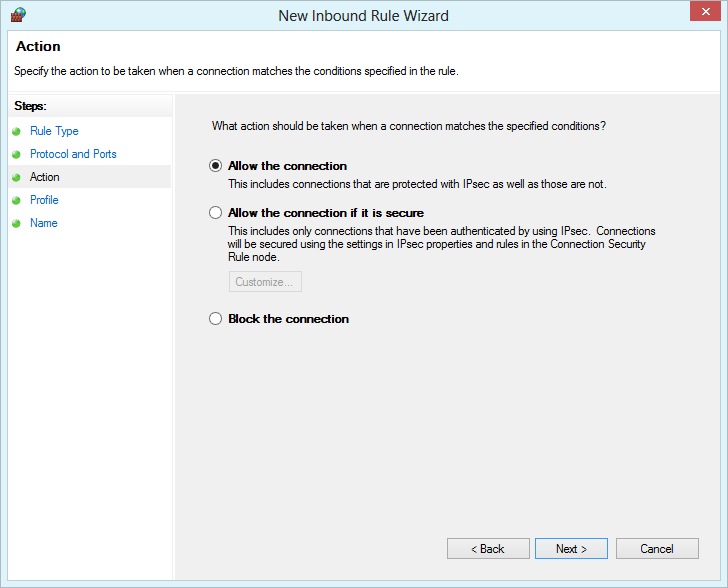

Windows Firewall with Advanced Security - allow the connection

Windows Firewall with Advanced Security - allow the connection

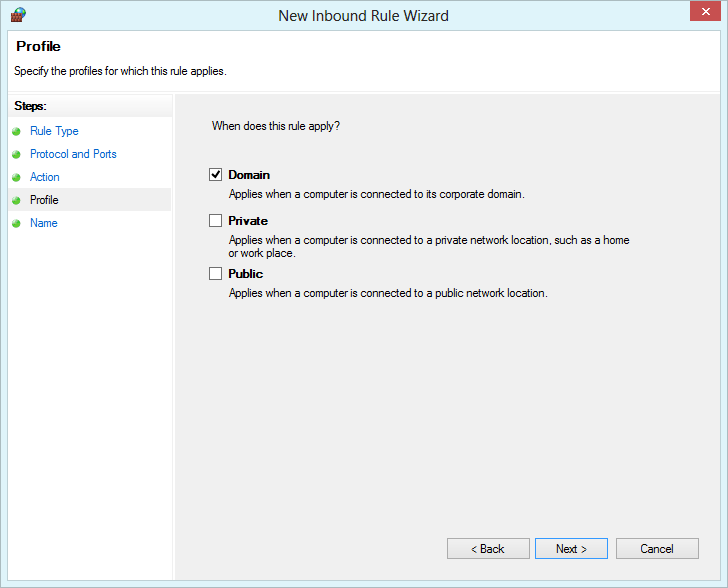

Windows Firewall with Advanced Security - choose the profile

Windows Firewall with Advanced Security - choose the profile

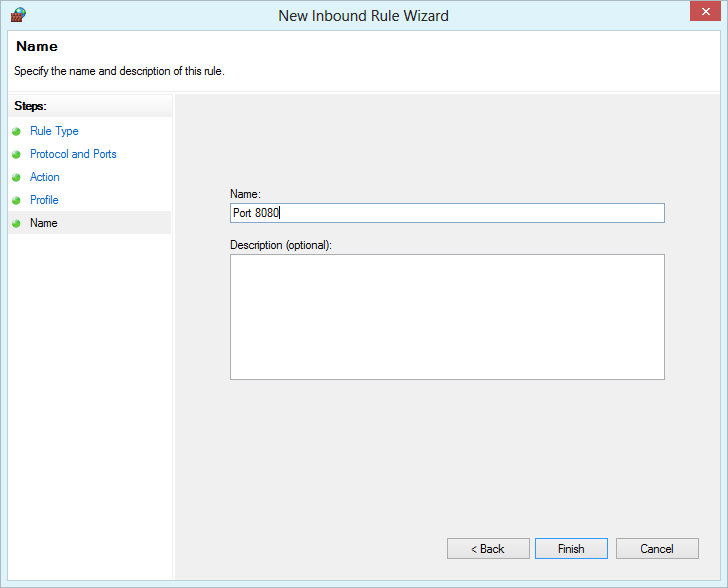

Windows Firewall with Advanced Security - enter a name

Windows Firewall with Advanced Security - enter a name

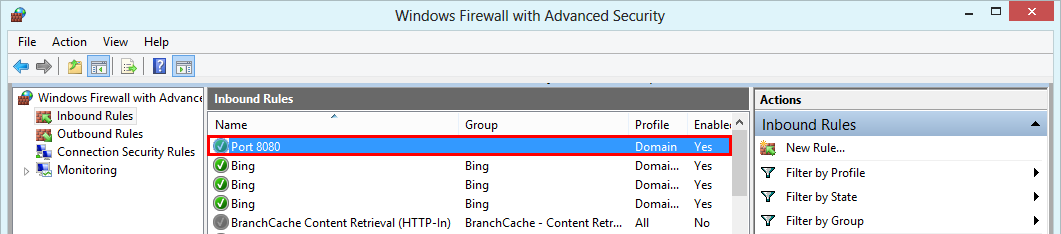

Windows Firewall with Advanced Security - active rule opening port 8080

Windows Firewall with Advanced Security - active rule opening port 8080



Proxy Server Settings

In case everything is fine regarding the Windows firewall settings but the browser still cannot access a WebOffice 10.8 SP2 project, then check if the proxy settings of your browser are set correctly.

With the Internet Explorer open the Internet Options, navigate to Connections and open LAN settings. There, configure the correct proxy server settings.

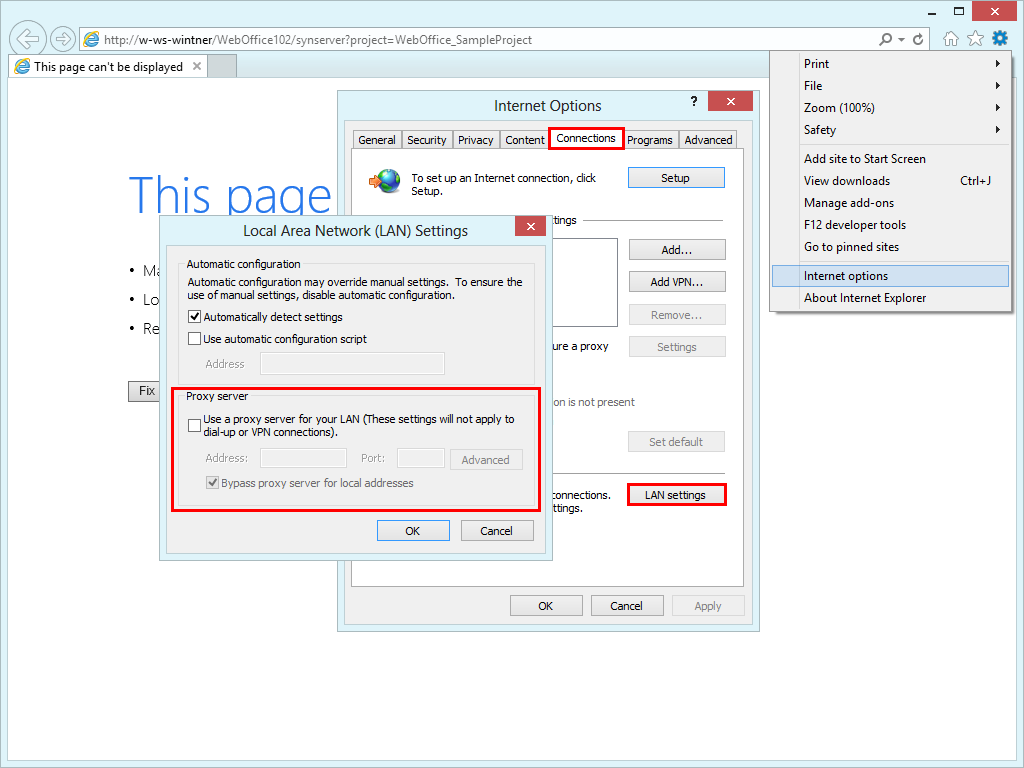

Configure proxy server settings in Internet Explorer

Configure proxy server settings in Internet Explorer



In case you are using Mozilla Firefox go to Options in the main menu, proceed to menu Advanced and open the tab Network. There you find the button Settings... where you can adjust your proxy server settings.

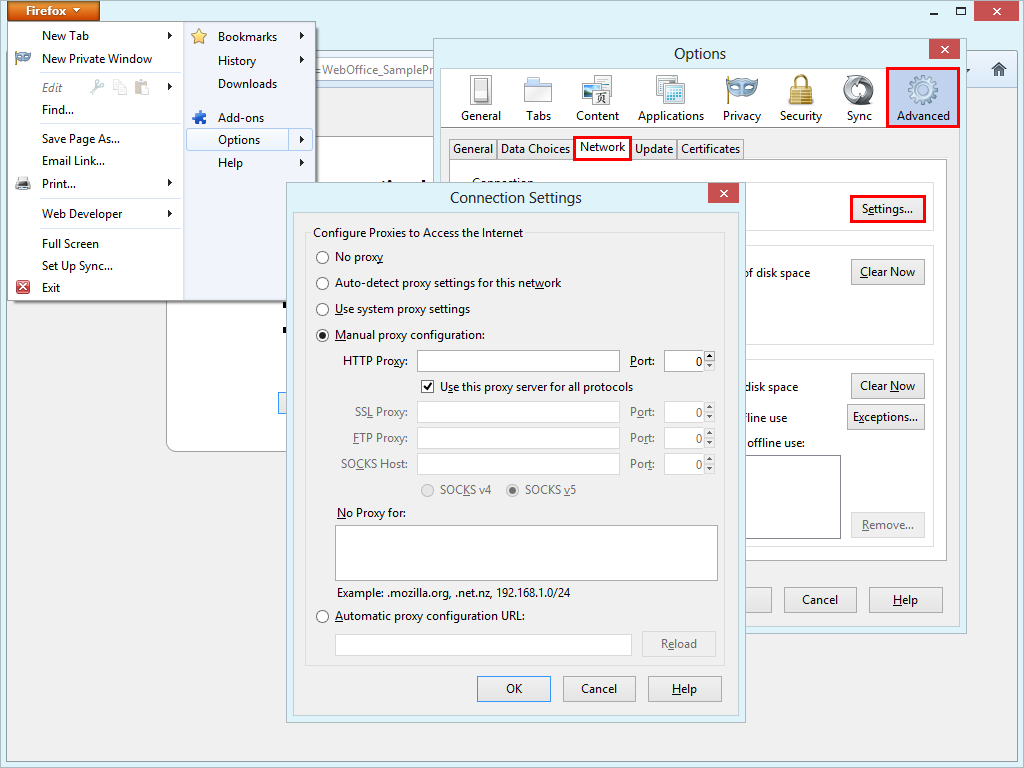

Configure proxy server settings in Mozilla Firefox

Configure proxy server settings in Mozilla Firefox
