Export Map Image

Return to chapter overview



Export Map Image tool in the WebOffice html client

Export Map Image tool in the WebOffice html client



The Export Map Image tool is a simple tool to copy a screenshot to the clipboard or Microsoft Word. Any displayed selections, measures, drawn graphics or placed symbols will be included in the screenshot as well.



As soon as you press the tool button a screenshot is made and copied into a new iframe window. When clicking Copy Map to Word two things will happen:

a new Microsoft Word document will open

a drop-down list will appear that lets you choose the target document



In case there are other previously opened Microsoft Word documents available, they will be listed too. If a previously opened document is chosen, the new Microsoft Word document will be closed automatically and the screenshot will be transferred to the selected document. The image format of the exported image is taken from the Image Blending setting in WebOffice 10.8 SP2 application configuration.



Note: The button Copy Map to Word works with all versions of Microsoft Word but is only available in Microsoft Internet Explorer because this function uses ActiveX. This behavior cannot be influenced by VertiGIS.

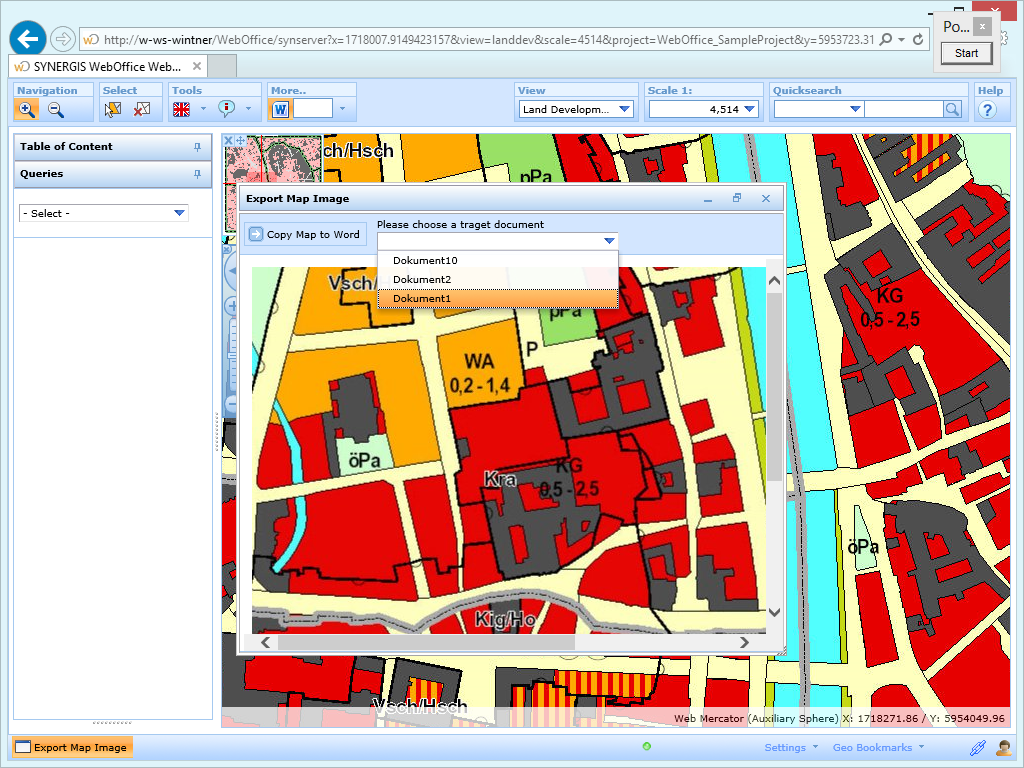

Export map image in the WebOffice html client

Export map image in the WebOffice html client



Note: See chapter Export Map Image for details about the tool configuration in WebOffice author.

Note: See chapter Image Blending for details about the configuration of image blending settings in the application configuration.

Note: See chapter Map Export Is Partly Empty if you have problems with a high resolution map export.
