ArcGIS Web Scene

Previous pageReturn to chapter overviewNext page

This Custom Tool allows users to display Web Scenes that are particularly useful to make 3D data available for visualization and analysis purposes.

Note: More information on this topic can be found in the ArcGIS online help in the section Web scenes.



See also the following video on this topic:

WebOffice: Integrating 3D ArcGIS WebScenes



Configure the custom tool ArcGIS_WebScene.htm from the directory C:\Tomcat\webapps\<WebOffice application>\pub\custom_tools as described:



(1) Web-Integration - custom Tool

Configure a Web integration - custom tool with the following parameters:

URL of external page: pub/custom_pages/forward_splitscreen.jsp?to=../pub/custom_tools/ArcGIS_WebScene.htm

JavaScript function: callFromWO

Tool icon: pub/images/esri_WebScene.png

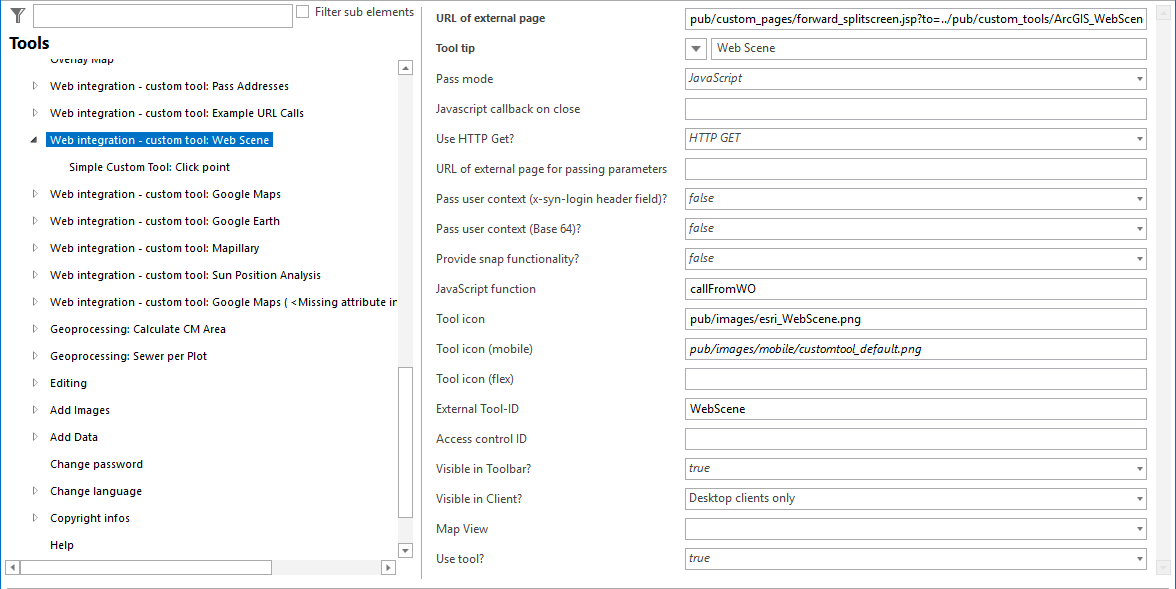

Configuring a custom tool for Web Scene

Configuring a custom tool for Web Scene





(2) Simple Custom Tool

Configure a Simple Custom Tool.

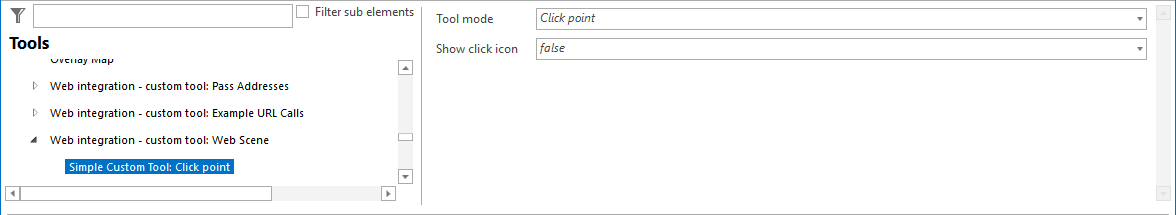

Configuring a simple custom tool for Web Scene

Configuring a simple custom tool for Web Scene



(3) ArcGIS_WebScene.htm - file

For the integration of own WebScenes a configuration in the file ArcGIS_WebScene.htm is necessary, which can be found under the following path:

<Tomcat directory>/webapps/<WebOffice Application>/pub/custom_tools/ArcGIS_WebScene.htm



A name, a portal, and the ID of the portal item must be specified here.

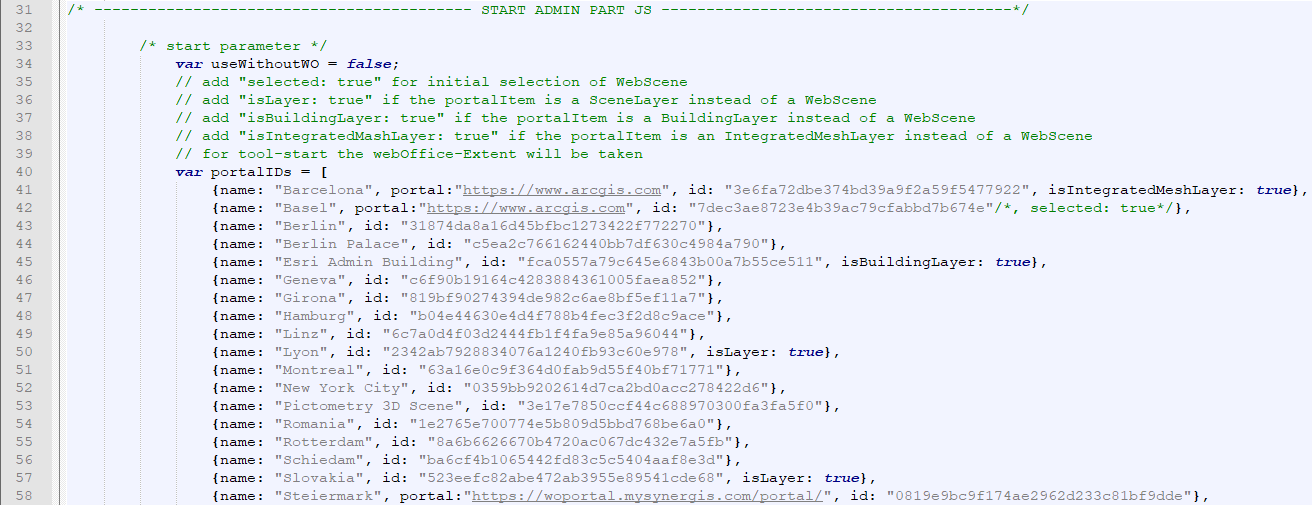

ArcGIS_WebScene.htm Datei - Inegration of own WebScenes

ArcGIS_WebScene.htm Datei - Inegration of own WebScenes



This file can also be used to define which tools should be available and whether they should be activated or not when the tool is started.

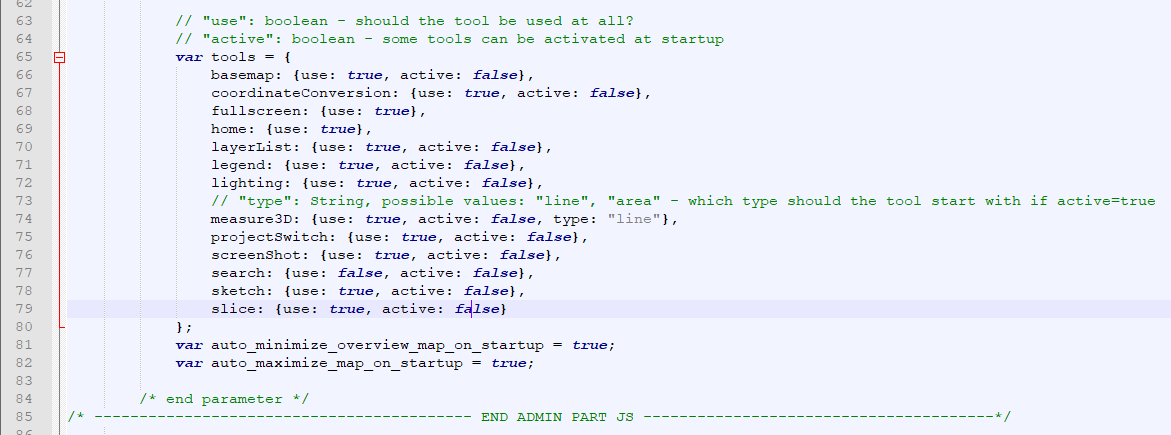

ArcGIS_WebScene.htm Datei - Availability and initial state of the WebScene tools

ArcGIS_WebScene.htm Datei - Availability and initial state of the WebScene tools



Note: See chapter Web Integration - Custom Tool for details about the configuration of custom tools in WebOffice author standalone.

Note: For more information on how to use the tool in WebOffice core client see chapter Web Scene.

Note: WebGL is not in supported in Internet Explorer 11. Because of that WebScenes are not supported in Internet Explorer 11. For more information see chapter Clientside requirements

Note: Please be aware, that only unsecured WebScenes are supported in this Custom Tool.
