Customize line selection symbology

Previous pageReturn to chapter overviewNext page

In WebOffice 10.8 SP2 the symbology of selected lines is now fully configurable, both in WebOffice author standalone and ArcMap. The symbology of selected lines is changeable on multiple layers as simple line or line marker. This new adaption allows to insert 1 to n layers to the selection symbology, to improve the visibility of selected lines.

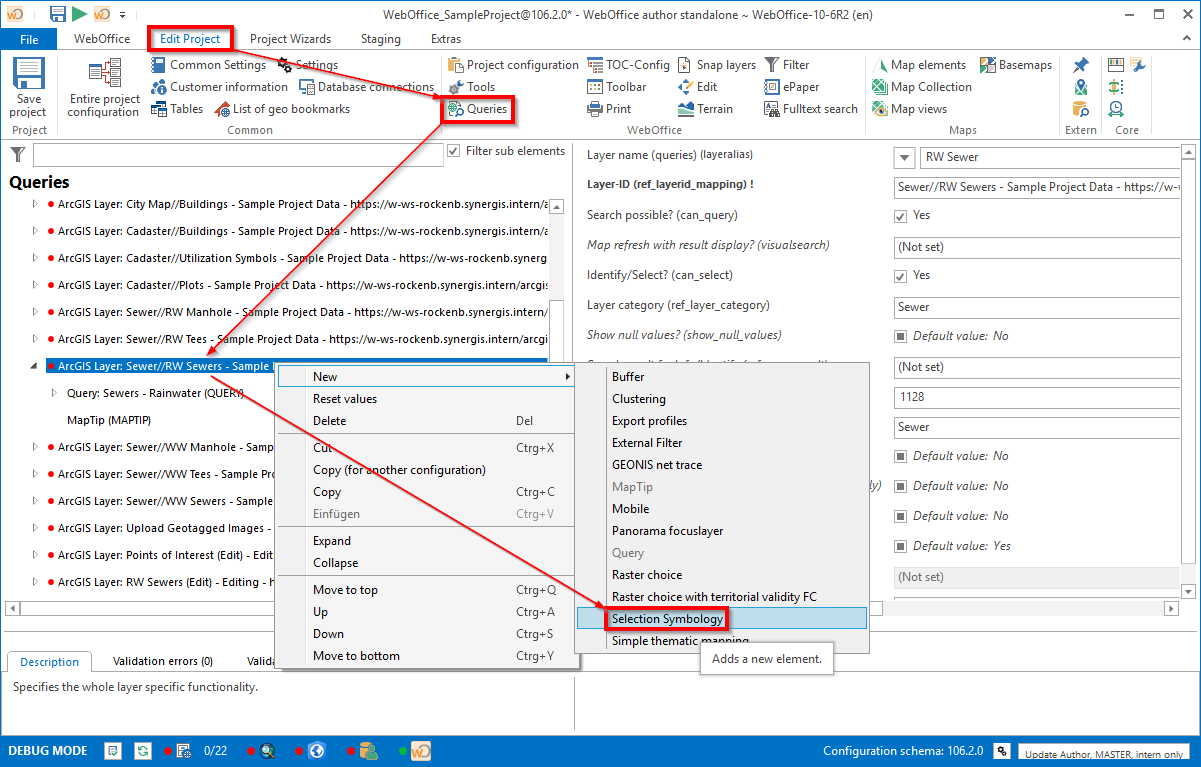

Open "Queries" in the menu "Edit Project" in WebOffice author standalone. Select a line layer and configure the node "Selection symbology" by right-clicking. You can choose between configuring "Line symbology" and "Line marker symbology".



Selection Symbology

Selection Symbology





Line symbology

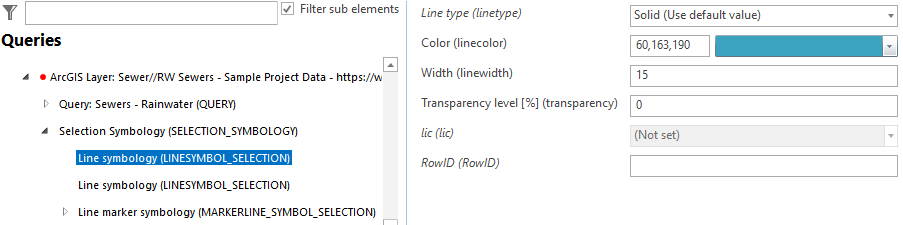

In configuration menu „Line symbology“ you can define parameters like line type, color, width or transparency.



howto_selection_symbology_line_02

Line Symbology

Menu

Description

Line type

Choose the type of the line (Solid, Dash, Dash Dot, Dash Dot Dot, Dot). Default value is Solid.

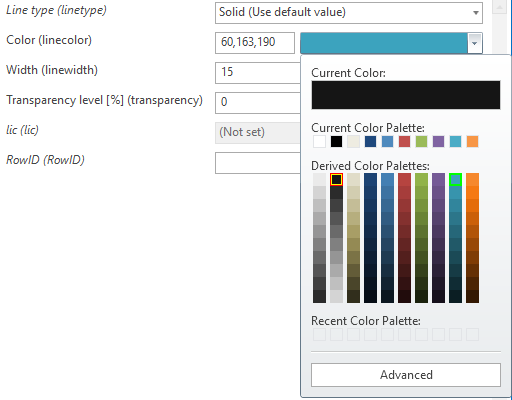

Color

Enter the RGB-code or choose a preselection from the dropdown window. Using "advanced" you can choose a certain color via the color picker.



howto_selection_symbology_line_03

Width

Choose the width of the line in pixel.

Transparency level [%]

Choose the level of transparency in percent. 0% means no transparency, 100% means invisible.





Line marker symbology

Line marker symbology can be used to create recurring Marker symbols along a line geometry. Line marker symbologies are also configured as a node of Selection Symbology in WebOffice author standalone.

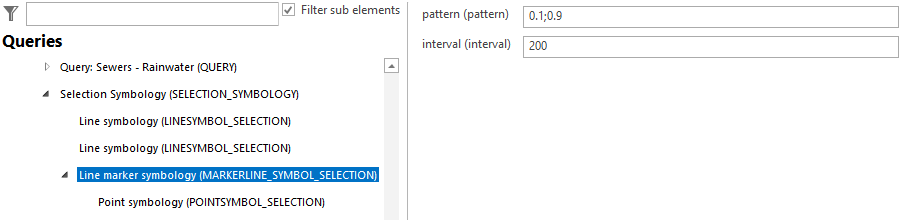

Line Marker Symbology

Line Marker Symbology





Menu

Description

Pattern

Here you can define, in which pattern the symbols are recurring in the defined interval.

Enter a semicolon-separated list of values between 0.0 and 1.0. In this case there are two points, which are on 10% (0.1) and 90% (0.9) of the interval.

Interval

Define the length of the interval in pixel, in which the Marker-Symbols should repeat.

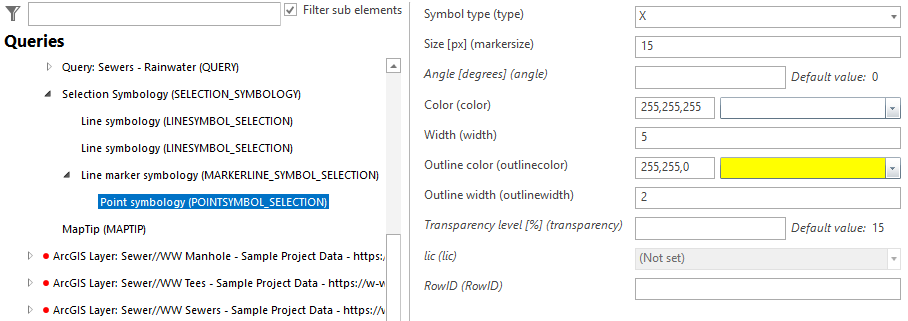

Point symbology

Point symbology





Menu

Description

Symbol type

Select one of the symbols Cross, Circle, Diamond, Square or X

Size [px]

Select the size of the symbol in Pixel

Angle [degree]

Select an angle between 0 and 360 to rotate the symbol

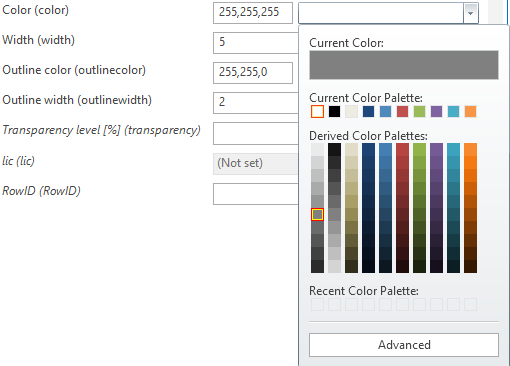

Color

Enter the RGB-code or choose a preselection from the dropdown window. Using "advanced" you can choose a certain color via the color picker.

howto_selection_symbology_line_06



Width

Select the width of the marker in Pixel

Outline color

Select the outline color of the marker symbol.

Outline width

Select the outline width of the marker symbol.

Transparency level [%]

Choose the level of transparency in percent. 0% means no transparency, 100% means invisible.

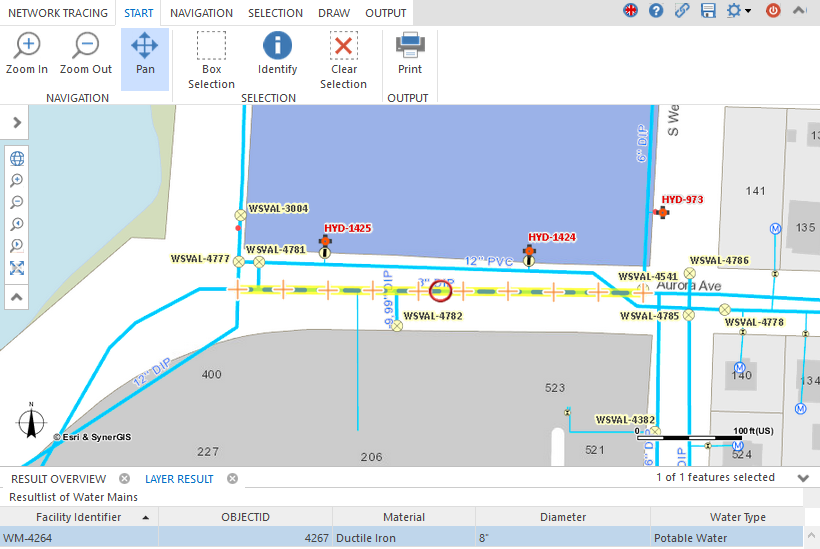

You can create a multiple layer selection symbology by adding as much Line symbologies or Line marker symbologies as you want. You will find an example for a line selection symbology, which consists out of three layers, here:



howto_selection_symbology_line_07
