Main Map Display

Previous pageReturn to chapter overviewNext page

The Main Map Display contains the current map extent, additional tools, navigation elements and an overview map.

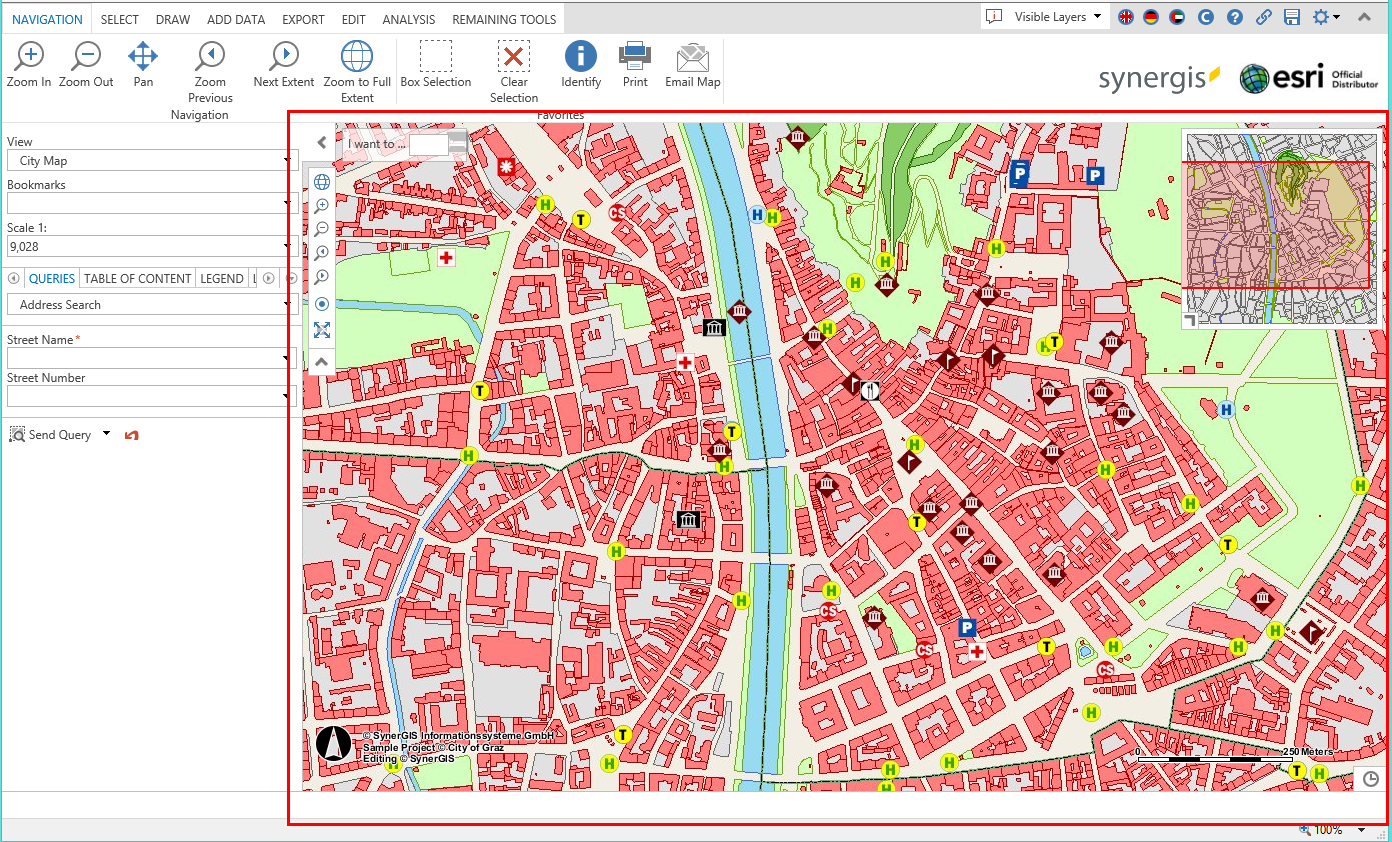

Main map display in WebOffice core client

Main map display in WebOffice core client



The Main Map Display is separated in three different divisions:

Navigation Elements

Quicktools

Overview Map

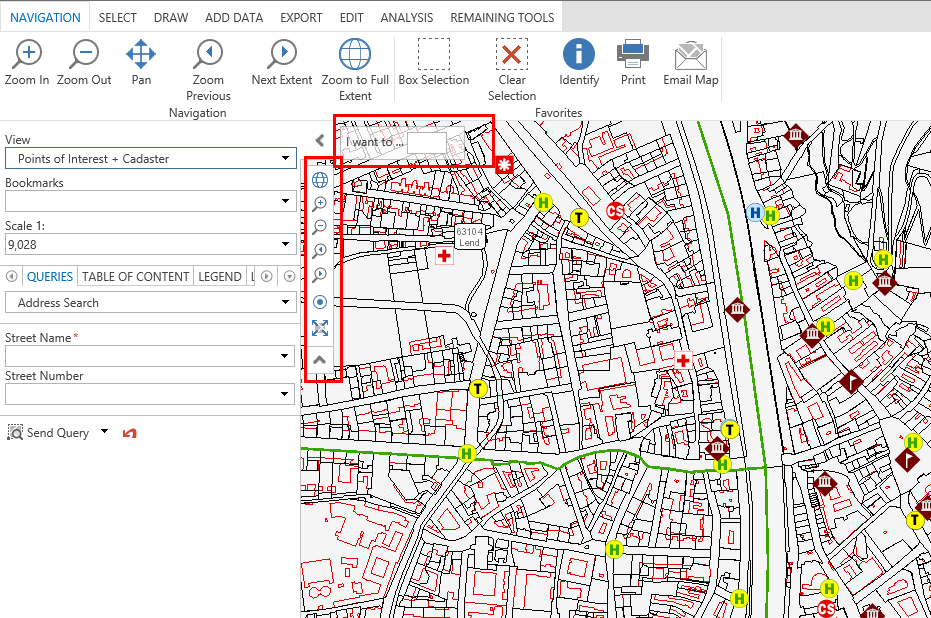

Extended functions in the main map display of WebOffice core client

Extended functions in the main map display of WebOffice core client



Additional elements in the Main Map Display are the scale bar, north arrow and the copyright section.





Scale bar

The scale bar is positioned on the right lower corner and can be adapted by configuration regarding to size, color and scale unit.

Note: Further details regarding the configuration with WebOffice author you will find in chapter Scale Bar.



scale bar meters

scale bar meters



scale bar kilometers

scale bar kilometers



North arrow and Copyright-Section

The north arrow and the copyright-section is positioned in the left lower corner of the client. Based on the configuration there are two different possibilities concerning the display of copyright elements:

project-based Copyright-text

layer-based Copyright-text



Copyright-Text in WebOffice core Client

Copyright-Text in WebOffice core Client



Note: Further details regarding the configuration of the project-based copyright-text with WebOffice author you will find in chapter Copyright.

Note: Further details regarding the configuration of the layer-based copyright-text with WebOffice author you will find in chapter ArcGIS Server Map Service.

Note: Further details regarding the configuration of the north arrow with WebOffice author you will find in chapter North Arrow.



Notes and Warnings

Map indications and notifications are displayed in WebOffice core Client. This messages are shown on top of the main map display.

Messages will be shown, if:

additional information should be provided

the user should be warned

oregarding unexpected situations while processing server responses or

oof user-interactions that lead to unexpected results



Furthermore the messages will be shown in different colors. Green colored hints include additional information regarding the process of functionality in

WebOffice core Client.



green message in WebOffice core Client

green message in WebOffice core Client





Yellow colored messages are standing for unexpected situations in WebOffice core Client.



yellow message in WebOffice core Client

yellow message in WebOffice core Client



Red colored messages indicate not executable functionality. In the following case the user has to enter a correct value for the query street name, so that WebOffice 10.8 SP2 is able to execute the query.



red message in WebOffice core Client

red message in WebOffice core Client





Note: In WebOffice core client intercepted SOE Errors could be shown in the user interface.

Therefore it is also possible, that database-specific Error-Messages (e. g. underlying DB error) can be shown in the GUI. If you configure an unique constraint on an attribute field on database-level and the user enters an existing value twice - the corresponding (database) error message can be displayed in the client. To use intercepted SOE Errors you have to configure a specific attribute on the edit tool. For details see intercepted SOE Errors in chapter Editing.
