WebOffice Project's Monitoring

Previous pageReturn to chapter overviewNext page

The WebOffice 10.8 SP2 application provides a call interface for monitoring specific projects. By using this call interface, it is easy to determine, whether at a certain point of time a WebOffice 10.8 SP2 project is valid or not.



Monitoring the availability of projects is important for implementing

load balancing and/or

fail over systems.



Being able to monitor a WebOffice 10.8 SP2 project it is easy to precisely provide information on availability and to implement monitoring systems, which may escalate a problem by notifying technical staff, if the availability check was negative/not successful.



Monitoring at WebOffice 10.8 SP2 project level has a significant advantage: It is far more reliable than simply monitoring the server, the middleware or the GIS server (ArcGIS Server), since a test at WebOffice 10.8 SP2 project level will only be positive or successful if all system components involved (hardware/software) are available and online.



Synmonitor call interface

WebOffice 10.8 SP2 provides a HTTP request to check the availability of a project by using the synmonitor call interface.

So by using the parameter &action= in the URL http://<server>:<port>/<Application>/synmonitor?project=<projekt>&user=batchadmin&password=<batchadmin password encrypted>&action= the single requests can be called.



Value for parameter "action"

Description

-

If no action parameter is specified, the default option "get_project_status" is selected, i.e. the call returns the status of projects.

get_project_status

Returns the status of a project

get_service_status

Returns the status of a service

validate_session

Describes the validation status of the session





Note: Users from UserManagement cannot be used for synmonitor calls.

Note: The encrypted password of the batchadmin user can be copied directly from the application configuration under <Application>\WEB-INF\classes\configuration\application_config.xml.







action=get_project_status



With the parameter "action=get_project_status" (or without action parameter) the following answers about the status of the project can be provided:









Response

Description

OK

The project is initialized and available

Note: The Synmonitor provides as result for the project "OK", if the main map service and all map services with the map service property "Must be available: Yes" and the encrypted batchadmin password is correct. It does not matter whether other services are not initialized.

OK: but uses service which requires global SOE functionality and this service is not SOE core enabled

The project is initialized and available, but the output service has not activated the SOE functionality.

OK: but uses service which requires global SOE functionality and this service is not alive

The project is initialized and available, but the output service with activated SOE functionality is not available.

FAILED

The project is not available

FAILED: INITIALIZING

The project is available and is currently being initialized

FAILED: NOT_FOUND

The project name does not exist in the application

FAILED: Unauthorized

The batchadmin user was not specified

FAILED: Forbidden

Incorrect batchadmin password was entered

Possible responses to a Synmonitor call "get_project_status"

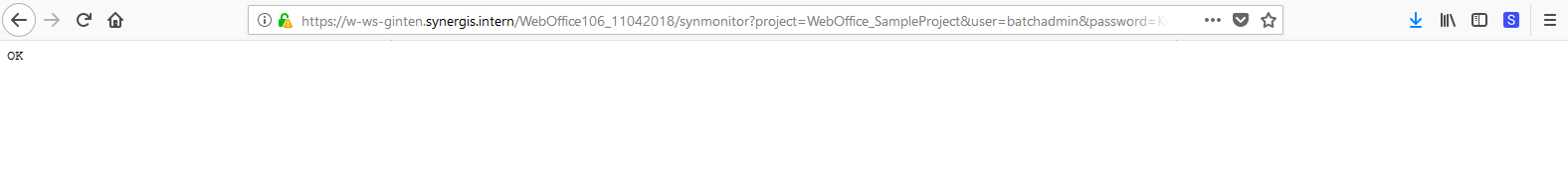

admin_monitoring1

Monitoring a WebOffice 10.8 SP2 project with the Synmonitor Call interface - OK

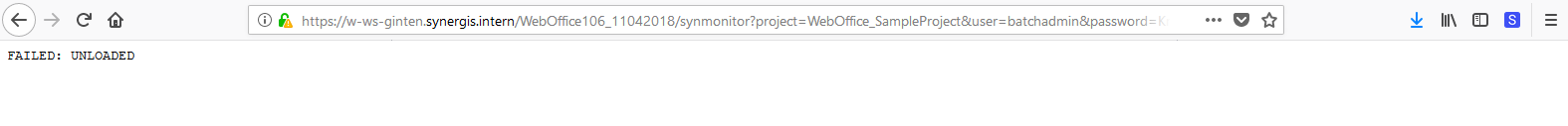

admin_monitoring2

Monitoring a WebOffice 10.8 SP2 Project with the Synmonitor Call Interface - FAILED UNLOADED







With WebOffice 10.8 SP2 an additional invasive synmonitor parameter named &mode= is provided. This offers the following possibilities:



Value for parameter "mode"

Description

-

returns the status if a project is initialized

OK_if_unloaded

returns the status whether the project is unloaded (project is not reloaded)

reinit_if_unloaded

returns the status whether the project is unloaded, and if so, it is initialized



Example of a project status call with reinitialization:



http://<server>:<port>/<WebOfficeApplikation>/synmonitor?project=<Projekt>&user=batchadmin&password=<batchadmin-Passwort - verschlüsselt>&action=get_project_status&mode=reinit_if_unloaded





Note: It is not necessary to use this parameter in the production system. Normally, it is not used in production scenarios, since the project is actually initialized by user interaction.



action=get_service_status



The call specifies the status of all services in your WebOffice 10.8 SP2 projects without specifying a special service:



http://<server>:<port>/<WebOffice application>/synmonitor?user=batchadmin&password=<batchadmin password - encrypted>&action=get_service_status



If a special service is specified, the call specifies the status of this service:



http://<server>:<port>/<WebOffice application>/synmonitor?user=batchadmin&password=<batchadmin password - encrypted>&action=get_service_status&service=http://<server>:<port>/arcgis/<directory>/<service>/<service type>



Note: The ArcGIS Server Publisher is no longer part of the service identifier. It is therefore not necessary to specify the service user in the request.



Response

Description

OK

The service is available

FAILED

The service is not available

FAILED: NOT_FOUND

The service doesn't exist

FAILED: No Content

There are no services available in the project

Possible responses to a Synmonitor call "get_service_status"

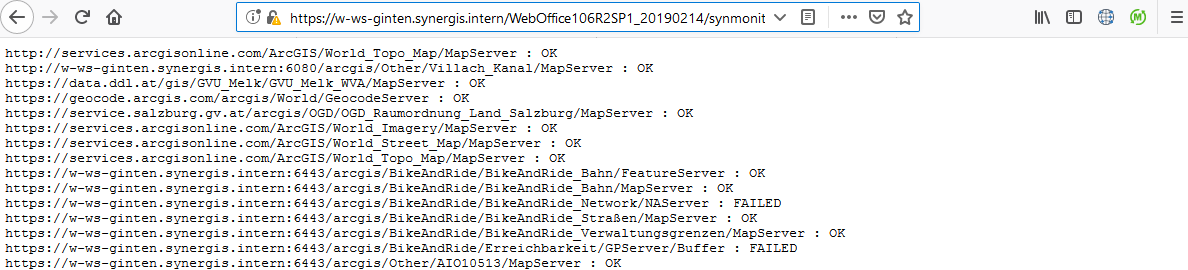

admin_monitoring3

Example of the SynMonitor result response with the parameter &action=get_service_status



action=validate_session&vertigis_jsessionid=...&user=...



Used to validate sessions.



Antwort

Beschreibung

OK

A session with the specified vertigis_jsessionid exists and belongs to the specified user. If no user management is used, only the parameter 'vertigis_jsessionid' has to be used without specifying a 'user'.

FAILED

a] no session exists with the specified session ID, or

b] the session exists, but does not belong to the specified user



Note: The response of the URL request consists of a STRING, no HTML document is returned.

Note: Please also refer to the chapter Batch Administration Request for administration of your WebOffice 10.8 SP2 application.
