Navigation:  SynerGIS ePaper Service > Installation

The SynerGIS ePaper Service setup installs the SynerGIS ePaper Webserivce.



Installation Requirements:

1..Net Framework 4.0

2.IIS:

 During installation it is checked if an IIS (minimum version  7) is installed. If no IIS is installed, the web service can not be installed.

3.Existing installation of WebOffice ePaper Extensions - > version 10.3 SP2



Installation:

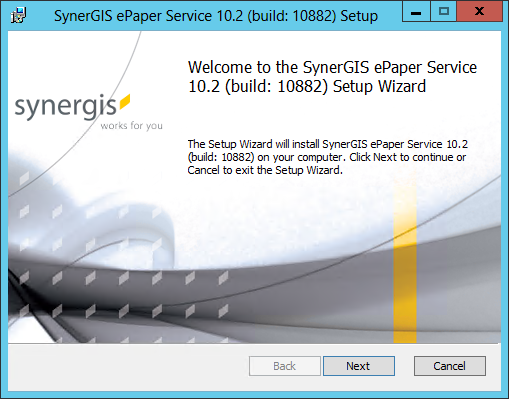

Start the installation by running the SynerGISePaperService.msi.



Note : In order for the setup to run properly administrator rights must be present

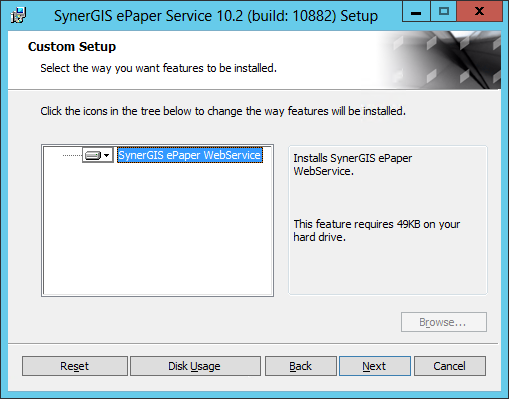

The setup only installs the SynerGIS ePaper WebService. All other necessary components for running the ePaper Service are part of the WebOffice ePaper Installation.

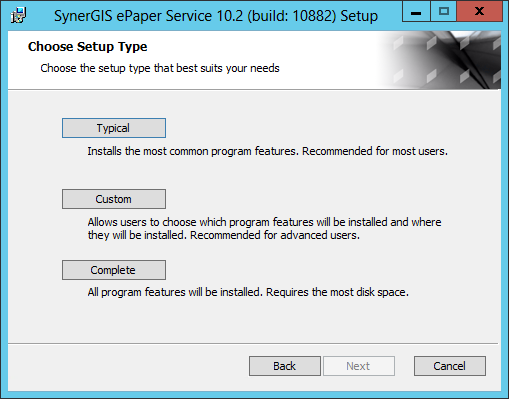

Click Typical to continue the installation.

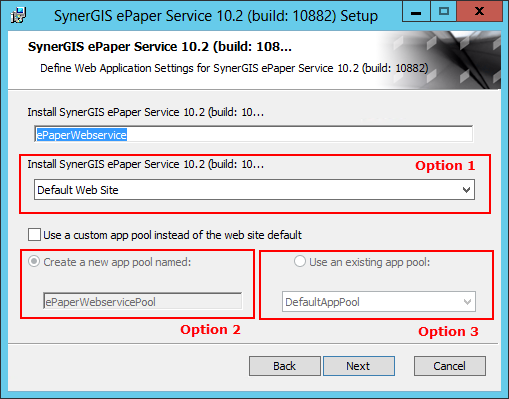

Define a name for the web service. Choose one of the three options to install the web application pool:





Option 1:

The SynerGIS ePaper service is installed under the Default Web Site . The Default Web Site, by default has the port 80.



Note 1: for ArcGIS 10.4 the .Net Version of the default application pool must be set to v4.0. For older versions of ArcGIS, like 10.2 or 10.3, the application pool must be a v2.0 application pool.

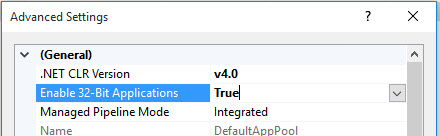

Note 2: the SynerGIS ePaper Service can only be used when the default application pool setting Enable 32-Bit Applications is set to true.

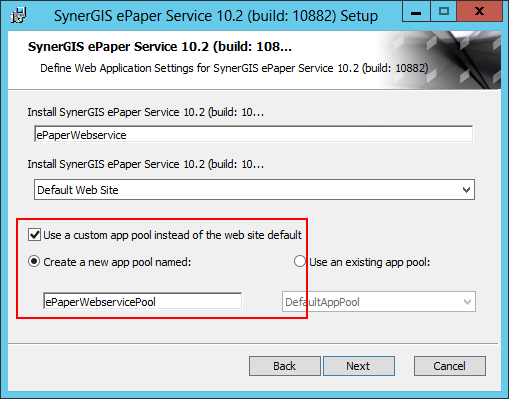

Option 2:

Creates a new application pool for the SynerGIS ePaper Service. Choose a name for the application pool.



The SynerGIS ePaper Service Application pool will be created with the following settings:

•.Net Framework: v2.0 (for ArcGIS 10.2 or ArcGIS 10.3) or v4.0 (for ArcGIS 10.4)

•Managed pipeline mode: integrated

•32bit

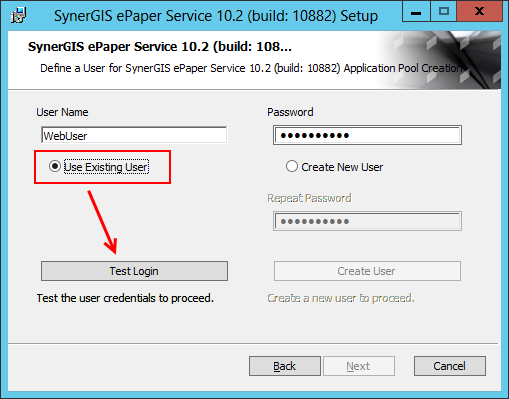

In the next step you can choose between creating a new user with password or using an existing user.





If you decide to use an existing user, the password for the user must be entered. Click Test Login to check the login for the user. Please note that the password matches your domain policies.

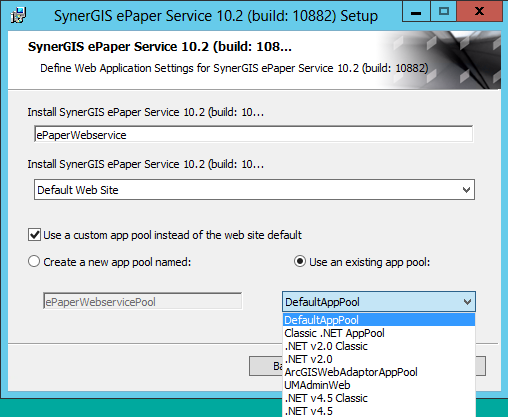

Option 3:

Choose an existing application pool form the list of pools.

Please note, that the ePaperService ApplicationPool has to fullfill the following requirements:

•.Net Framework: v2.0 (for ArcGIS 10.2 or ArcGIS 10.3) or v4.0 (for ArcGIS 10.4)

•Managed pipeline mode: integrated

•32bit

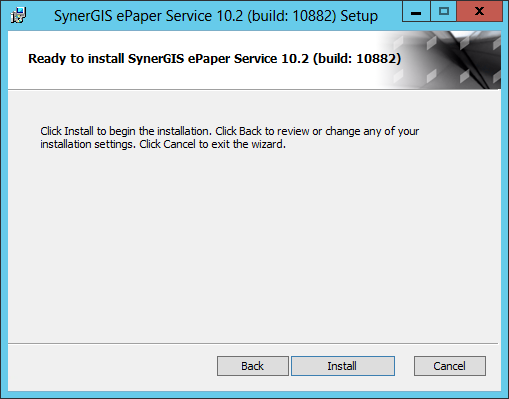

After defining the application pool, you can continue the installation. Click on Install.

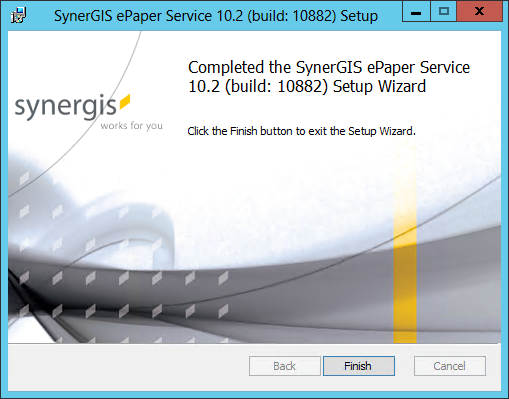

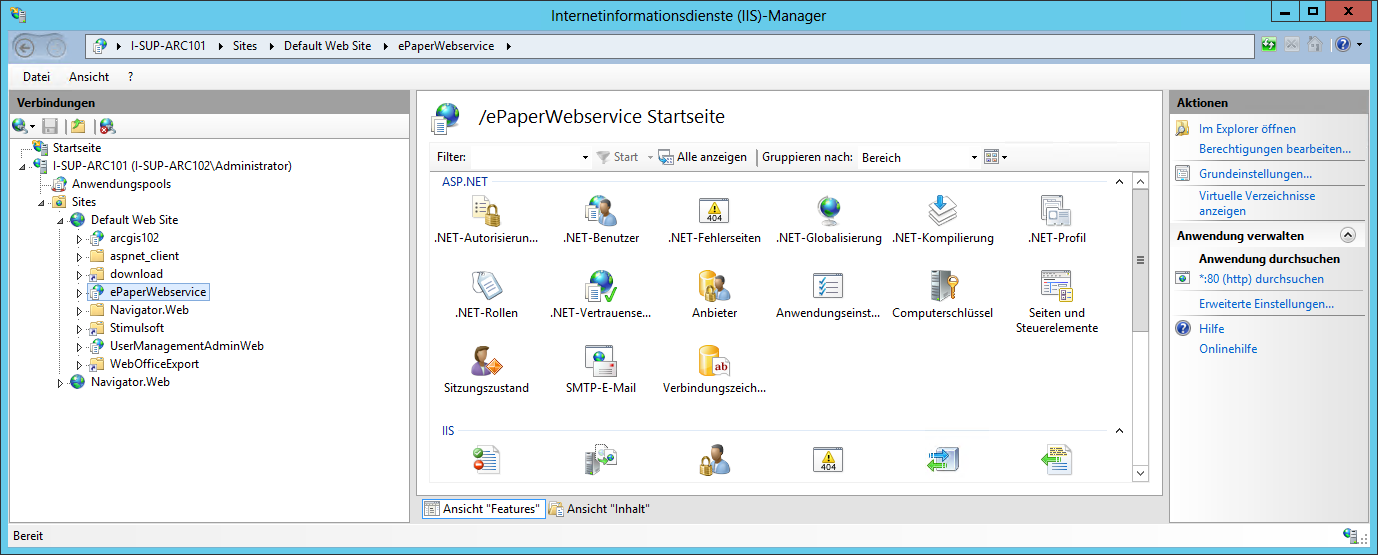

When the installation is completed, the new created ePaperWebservice is visible in the Internet Information Manager (IIS).
