Create Series … |

|
Create Series … |
|
In addition to the command Generate, which generates one file (e.g. pdf) for a defined feature selection set, it is possible to create an ePaper series. The ePaper series exports every single selected feature in one file (e.g. pdf).
Start the creation of the ePaper series by clicking on the Create series … button. The GeoOffice ePaper series export dialog opens.
Note: An ePaper series can only be created when an ePaper template is selected.

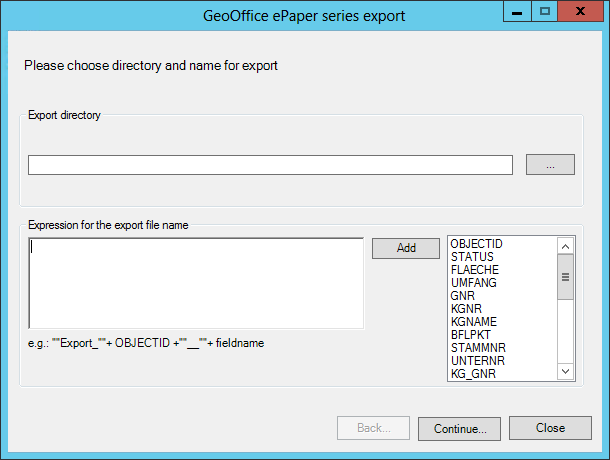

GeoOffice ePaper series export dialog
Menu Item |
Description |
Export directory |
Define an export directory for the ePaper series. |

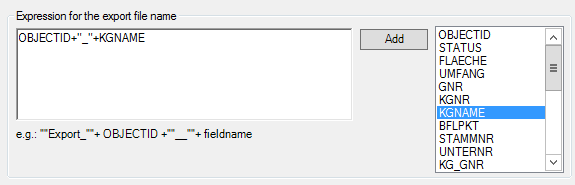

Export name expression |
Define the export name. The drop down list on the right side, shows the available attribute fields of the selected layer. It ist possible to build up the export name expression from fields and single text values.
 Export name expression |
Next |
Click on Next to proceed with the series export. |
GeoOffice ePaper series export dialog
Menu Item |
Description |
GeoOffice ePaper series export dialog |
Define the export data format for the ePaper series. Available export formats are: •Excel •Excel 2007 •Word 2007 |
Image quality |
Define the export image quality. The quality can be set from 0 to 1. Default value ist 0.75. |
Image resolution |
Define the image resolution. Default image resolution ist set to 100 dpi. |
Back … |
Go back to export name and export directory definition. |
Export |
Start the Export of the ePaper series. |

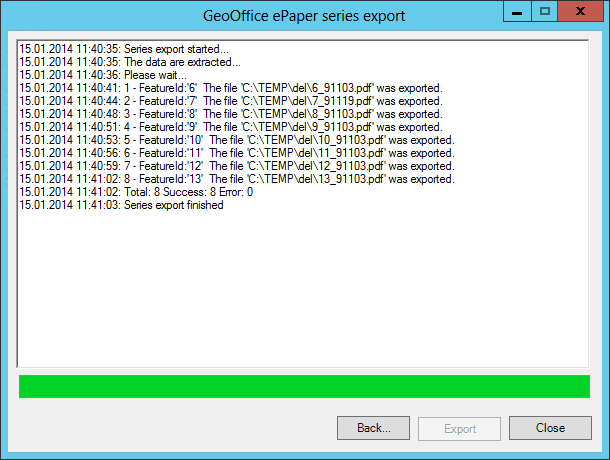

After pressing the Export button, the export starts. The dialog lists the exported files, as well as the status of the export, like the amount of exported files, the amount of successful exported files as well as the amount of files whith an export error.
GeoOffice ePaper series export dialog
