With the WebOffice 10.7 SP1 Net trace tool the functionality of net tracing will be provided. Therefor the availability of an (Esri) geometric network is a precondition.



Geometric networks offer a way to model common networks and infrastructures found in the real world. Water distribution, electrical lines, gas pipelines, telephone services, and water flow in a stream are all examples of resource flows that can be modeled and analyzed using a geometric network.

See also: http://desktop.arcgis.com/en/desktop/latest/tools/data-management-toolbox/an-overview-of-the-geometric-network-toolset.htm



In the following image you can see an example for an ESRI geometric network, consisting of different point- and line feature classes (inside a feature dataset):



To use the Net trace functionality in a WebOffice 10.7 SP1 project, the tool Net trace has to be configured as mentioned below.

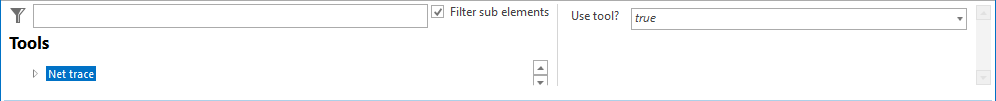

Properties nettrace



Note: See chapter Nettrace for more details about the tool in the WebOffice core client.
