Reference to WMS Map Service of Map Collection |

|
Reference to WMS Map Service of Map Collection |
|
For each Reference to WMS map service of map collection a set of properties is available:

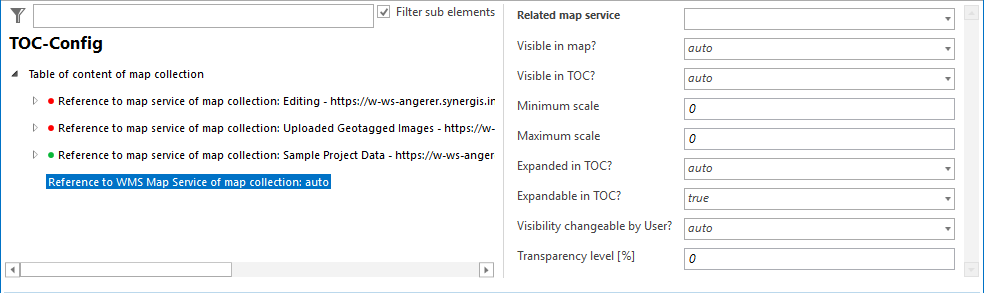

Reference to WMS map service of map collection configuration
Property |
Description |
Related map service |
Related WMS map service. |
Visible in map? |
Used to define the initial visibility of the service. If visible is not specified explicitly ("auto"), the map service is initially displayed. - off: the map service is not shown (switched to invisible). - on: the map service is shown (visible). |
Visible in TOC? |
Used to define the initial visibility of the element in the TOC. If visible is not specified explicitly ("auto"), the element is initially displayed in the TOC. - off: the element is not shown (switched to invisible). - on : the element is shown (visible). |
Minimum scale |
Minimum scale. If set to 0 then this value does not get taken into consideration and the layer visibility scale range specified in the MXD document is relevant only. If, e.g. for scales < 1:100,000 the map should not be displayed any more, then configure the value 100000. Note: This parameter does not affect the scale levels taken into consideration by the MapTip tool. This parameter is exclusively used to reduce map image transfer between client and server. |
Maximum scale |
Maximum scale. If set to 0 then this value does not get taken into consideration and the layer visibility scale range specified in the MXD document is relevant only. If, e.g. for scales > 1:100,000 the map should not be displayed any more, then configure the value 100000. Note: This parameter does not affect the scale levels taken into consideration by the MapTip tool. This parameter is exclusively used to reduce map image transfer between client and server. |
Expanded in TOC? |
Specifies if the map service is displayed expanded (on) or collapsed (off) in the table of content. Note: Default value auto provides expanded map services when starting a WebOffice project. |
Expandable in TOC? |
Specifies if the map service can be expanded or not. If not then the user is only able to switch the visibility of the whole service but not for individual layers of this service. |
Visibility changeable by user? |
Specifies if the map service visibility can be changed by the user. Note: Please consider, that the map service visibility cannot be changed within a basemap view. |
Transparency level [%] |
Transparency level [%]. Useful for blending map services. Note: If a value other then 0 is used, performance may drop down because of necessary image blending. |
Reference to WMS map service of map collection properties
Über die Liste der abfragbaren Themen können jene Themen eines WMS-Services definiert werden, die im WebOffice 10.7 SP1 Client standardmäßig abfragbar sein sollen.
Hinweis: Zusätzlich kann im Themenbaum des WebOffice core Clients ein WMS-Thema manuell identifizierbar gemacht werden.

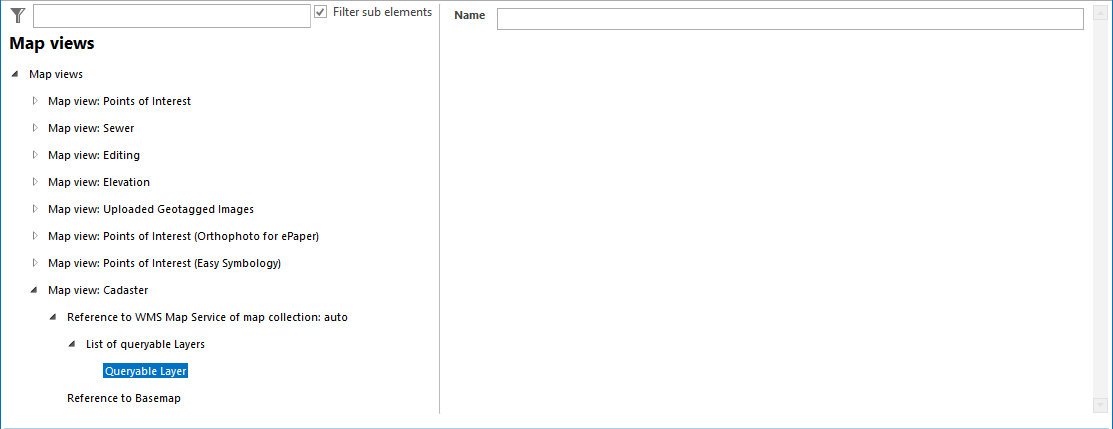

Configuration of queryable Layer in the list of queryable Layers
Property |
Description |
Name |
Unique value of the element <name> of the corresponding layer from the wms getcapabilities-request. Note: The WMS layer must have the corresponding element <Name> to be configured as queryable by default. |
Properties Queryable Layer
Using the list of visible topics, you can define the topics of a WMS service that should be visible by default in WebOffice 10.7 SP1 Client.
Note: In addition, a WMS layer can be made visible manually in the TOC of the WebOffice core Client.

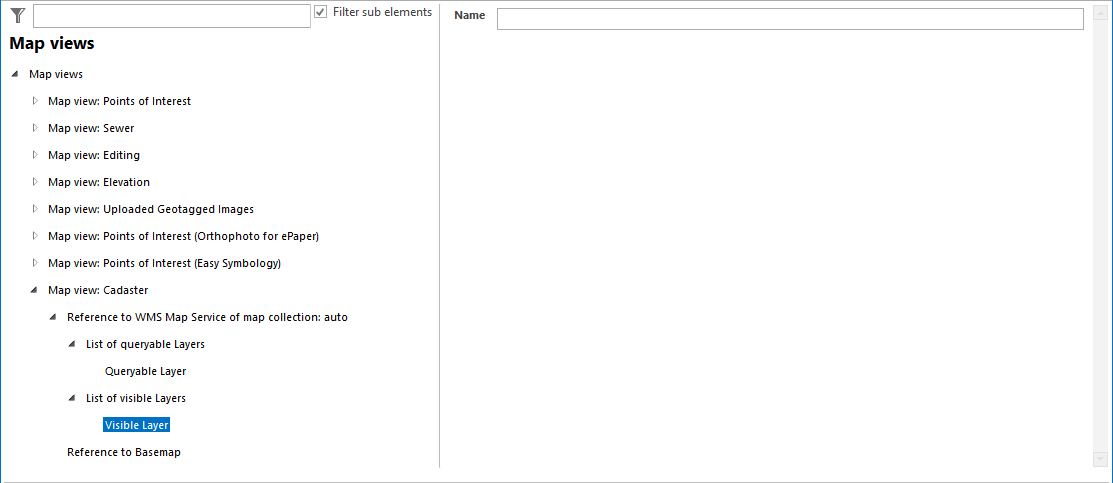

Configuration of Visible Layers within the list of visible Layers
Property |
Description |
Name |
Unique value of the element <name> of the corresponding layer from the wms getcapabilities-request. Note: The WMS layer must have the corresponding element <Name> to be configured visible by default. |
Properties Visible Layers
Note: See chapter Ribbon Menu for details about the TOC appearance in the WebOffice core client.
Note: See chapter Table of Content for details about the TOC appearance in the WebOffice core client.
